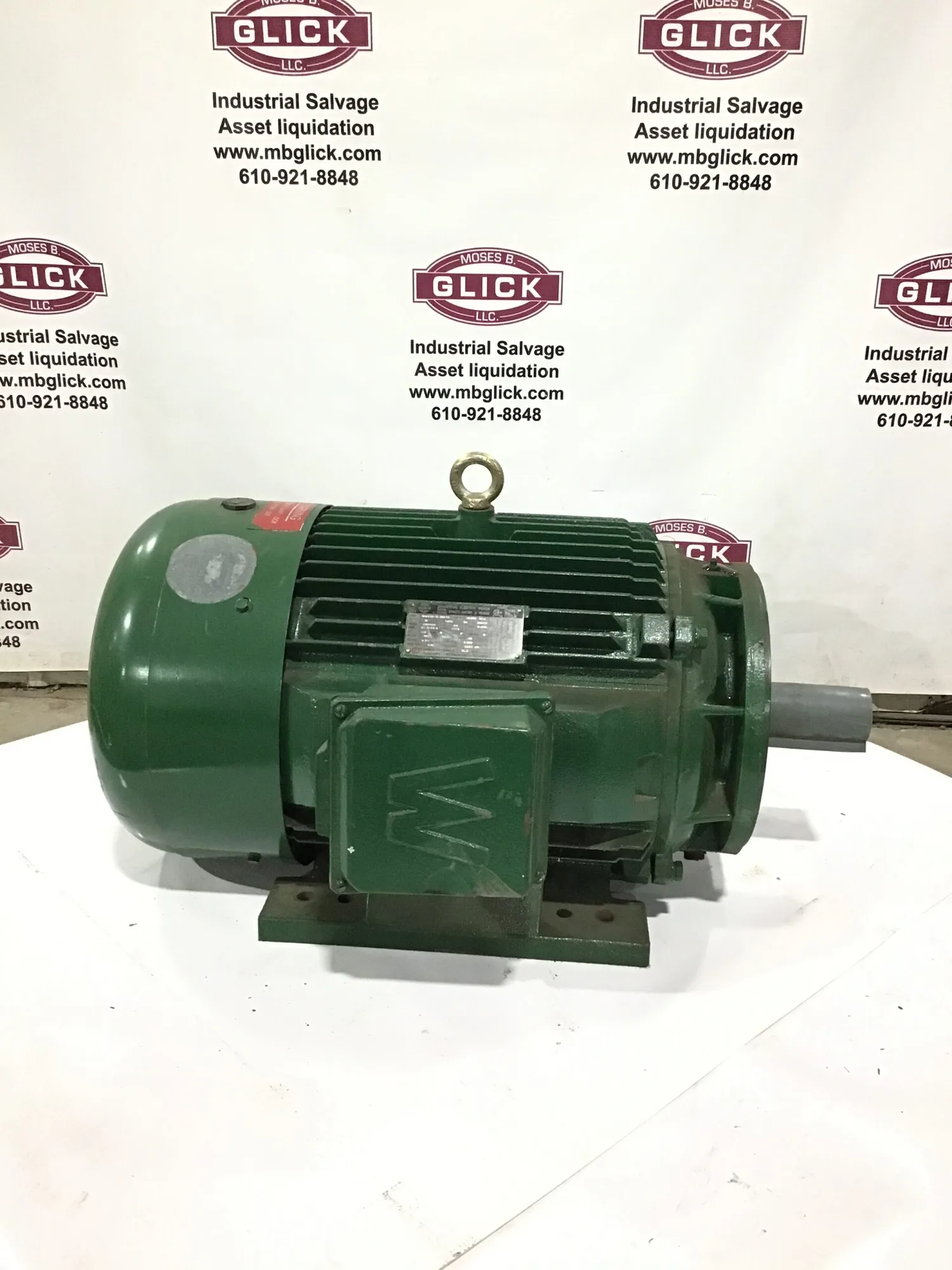

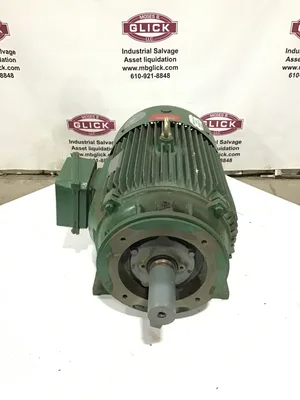

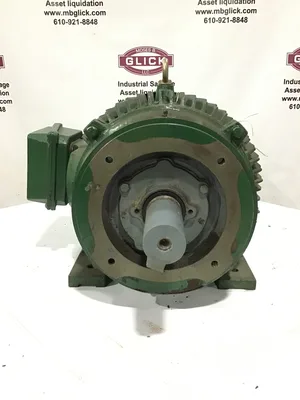

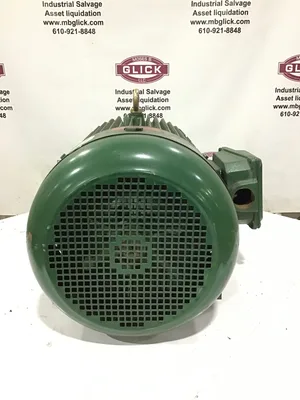

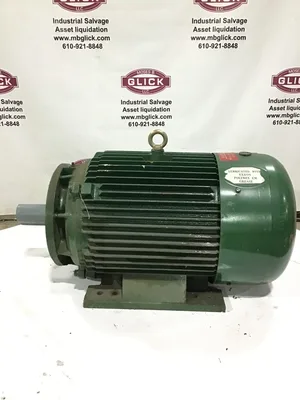

WEG WWE30-IB-286TC Industrial Electrical Motor 30HP 1775RPM

The WEG WWE30-IB-286TC Industrial Electrical Motor is a powerful 30HP motor designed for high-performance applications, operating at 230/460V and 60Hz with a robust speed of 1775RPM. Engineered with Insulation Class F and a Design B configuration, this motor ensures reliability and efficiency in demanding environments. With a service factor rating of 1.15 and a maximum ambient temperature of 40°C, it delivers consistent performance while handling 67.2/33.6 amps, making it an ideal choice for industrial settings that require durability and strength. Upgrade your operations with this exceptional motor that combines power and efficiency for optimal productivity.
🔧 Powerful 30HP industrial electric motor designed for heavy-duty applications and consistent performance
⚡ Dual voltage capability (230/460V) for flexible installation across various systems and setups
🔄 Operates at 1775 RPM, delivering reliable speed and torque for demanding industrial operations
🔌 Three-phase configuration ensures efficient energy usage and smooth motor performance
🌡️ Rated for 40°C ambient temperature, making it suitable for standard industrial environments
🛡️ Insulation Class F provides enhanced thermal resistance and durability under continuous load
⚙️ NEMA Design B offers balanced starting torque and stable operation for general-purpose use
📐 286TC frame size compatible with a wide range of industrial equipment and mounting configurations
💪 Service factor rating of 1.15 allows the motor to handle temporary overload conditions safely
🔋 Full load current rated at 67.2/33.6 amps, supporting efficient power consumption at both voltages

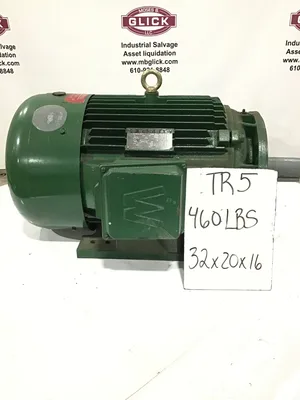

Weight: 460 lbs
Dimensions: 32 × 20 × 16 in
