STANDARD ACCESSORIES:
Linear scales on X,Y,Z axes
Spindle oil cooler, Automatic power off
Hydraulic system, Coolant system
Lubricator system
Alarm lamp, Work lamp, M.P.G.
RS232 interface, Heat exchanger
Chip conveyor and cart, Leveling bolts and pads
Controller manuals and circuit diagram
Operation manuals, Machine inspection lists
Splash guards (around the table), Tool box
FAGOR controls
ATC: 40 tools
OPTIONAL ACCESSORIES
Choice of Various magazines (60 / 90 tools)
Oil mist device
FANUC controls
Various auxiliary work tables
Air conditioner for electrical cabinet
Extension sleeve250mm/300mm
(for UBM-110 series)
Coolant through spindle
Choice of various sizes of tables
a1600x1800
(For UBM-110xxRT, 110xxR, 130xxRT series)
b.2000x2000 / 2000x3000 /
2200x2400(For UBM-1300xxR series)
c.2500x3000 table with 40tons of loading capacity(UBM-130xxRL, 1500xxRL series)
Manual 90 Deg. angular milling head
Face milling head
30/37kW spindle motor and ZF-300 gearbox(For UBM-130, 150 series)

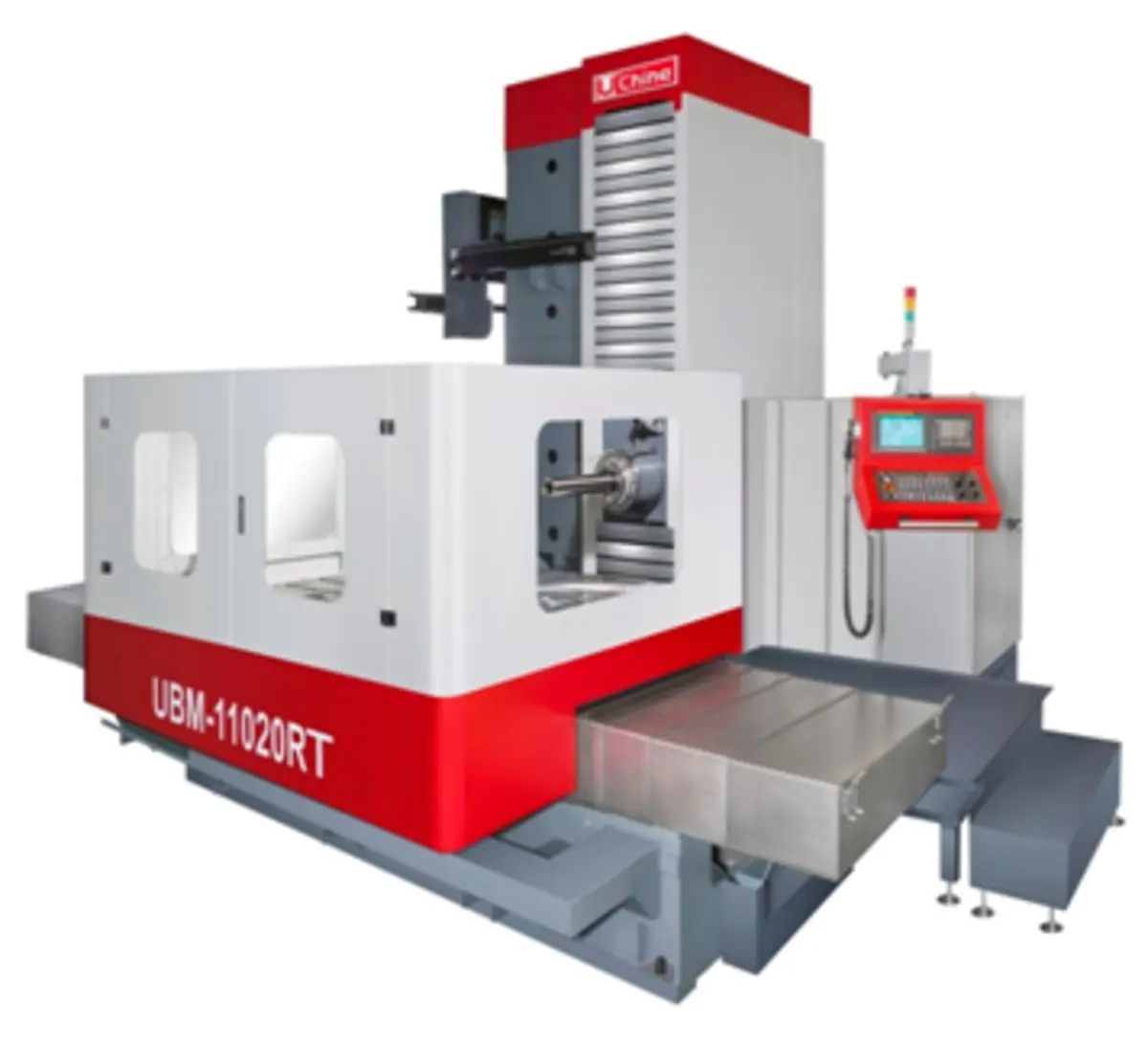

[MODEL | UNIT | UBM-13025RT]
TABLE / Table Size: 1600x1400 x0.001° mm
TABLE / T-Slots: 24x7 mm
TABLE / Maximum Load: 8000 kg
TRAVEL / X Axis: 2500 mm
TRAVEL / Y Axis: 2000(2500,3000) mm
TRAVEL / Z Axis: 2000(2500) mm
TRAVEL / W Axis: 700(900) mm
SPINDLE / Diameter: Ø 130 mm
SPINDLE / Speed: 10~2000(2500) rpm
SPINDLE / Taper: 7/24 taper, ISO.50, BT-50
DISTANCES / Spindle Center to Table: 0~2000(0~2500,0~3000) mm
DISTANCES / Spindle Nose to Table Center: -150~2250 mm
DISTANCES / Height from ground to table surface: 1260 mm
FEED RATE / Rapid Feed rate X/Y/Z: 10 m/min
FEED RATE / Rapid Feed rate W: 6 m/min
FEED RATE / Minimum Setting: 0.001 mm/min
FEED RATE / Cutting Feed Rate: 1~5000 mm/min
MOTOR / Spindle Servo Motor -cont./ 30min.: 15/18.5 (22/26) kW
MOTOR / Axis X / Y / Z / W / B: 7/7/7/4/7 kW
MOTOR / Lubricator Motor: 0.15 kW
MOTOR / Hydraulic Pump: 2.25 kW
MOTOR / Coolant Pump: 1.17 kW
MOTOR / Chip Conveyor: 0.2 kW
MOTOR / Oil Cooling Pump: 0.75 kW
ATC / No. of Tools: 40(60) pieces
ATC / Tool Selection: Absolute
ATC / Tool Change Time: 15 Sec.
ATC / Max. Tool-Diameter/Length: Ø 125/ Ø 250(Without Adjacent Tool)/ Length 400 mm
ATC / Max. Tool Weight: 25 kg
COOLANT & LUBRICATION / Coolant Tank Volume: 400 L
COOLANT & LUBRICATION / Hydraulic Tank Volume: 80 L
COOLANT & LUBRICATION / Lubrication Tank Volume: 8 L
MISCELLANEOUS / Power Required: 55 kVA
MISCELLANEOUS / Pressurized Air: 6 kg/cm²
MISCELLANEOUS / Machine Weight (Approx.): 43500 kg
