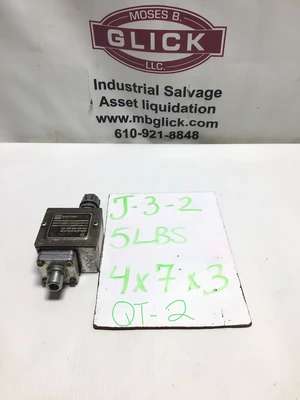

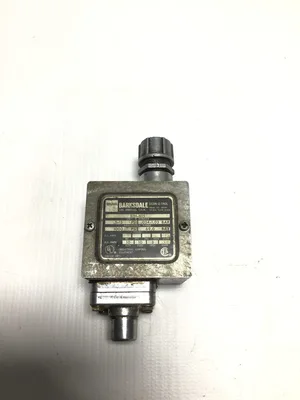

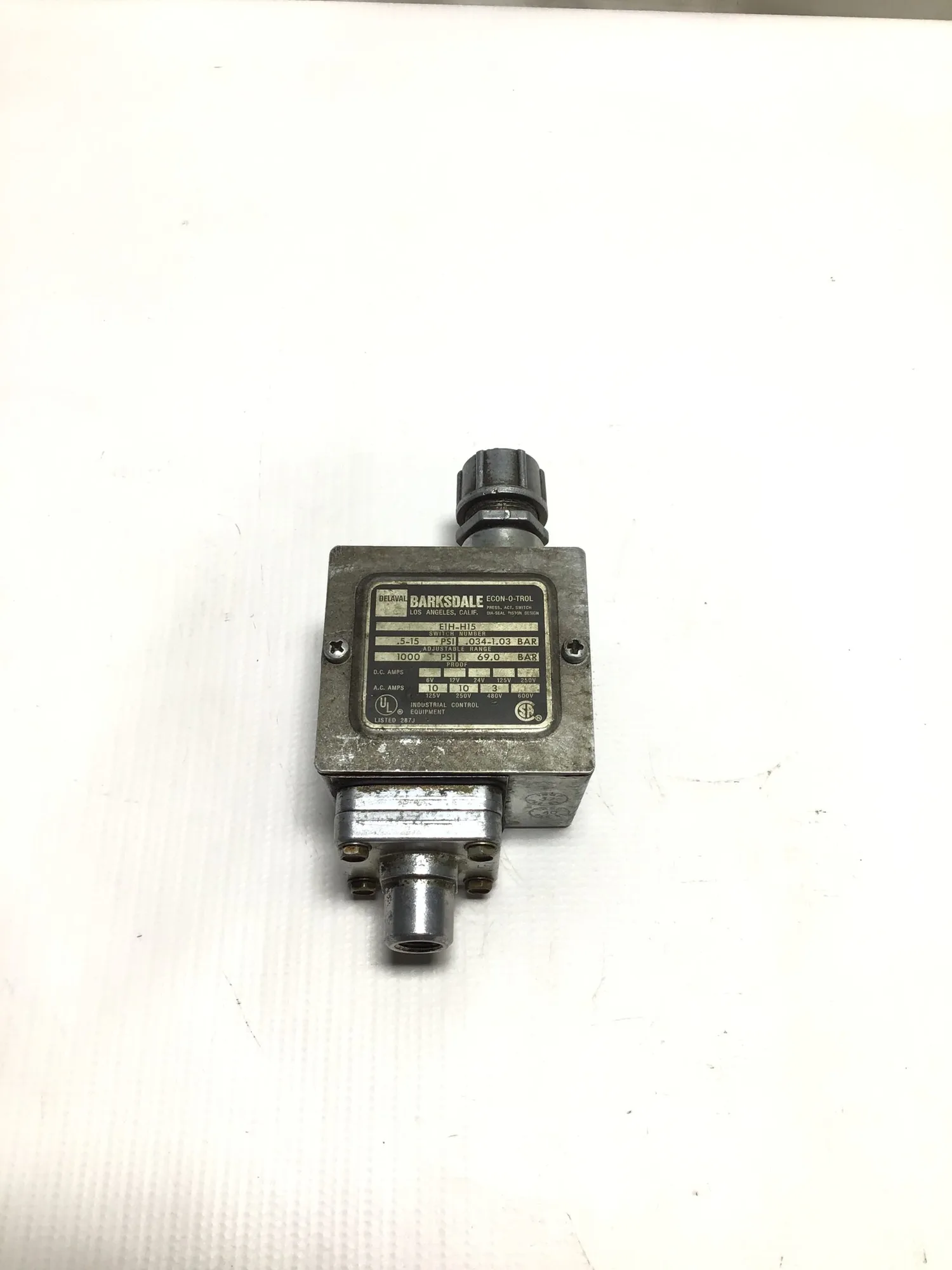

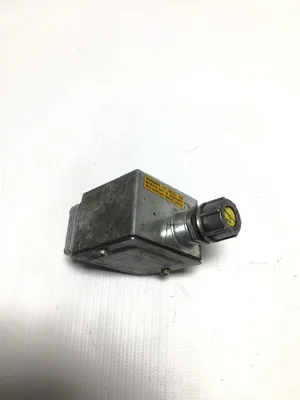

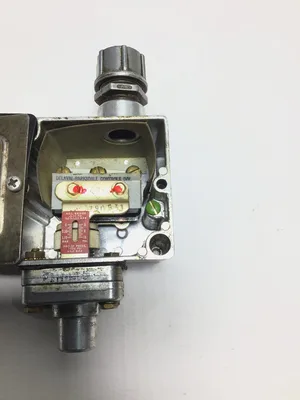

USED BARKSDALE CONTROL PRODUCTS E1H-H15

Product Overview
Manufacturer: Barksdale Control Products
Manufacturer: Barksdale Control Products
Series: E1H (Housed Model)
Series: E1H (Housed Model)
Model: E1H-H15
Model: E1H-H15
Type: Mechanical diaphragm-seal piston pressure switch
Type: Mechanical diaphragm-seal piston pressure switch
Function: Monitors and controls air, gas, or liquid pressure by opening or closing an electrical circuit at preset levels
Function: Monitors and controls air, gas, or liquid pressure by opening or closing an electrical circuit at preset levels
Key Features
Adjustable pressure range from approximately 0.5 to 15 psi (0.04 to 1 bar)
Adjustable pressure range from approximately 0.5 to 15 psi (0.04 to 1 bar)
Snap-action SPDT switching mechanism for quick, reliable response
Snap-action SPDT switching mechanism for quick, reliable response
Accuracy: ±2% of adjustable range at constant temperature
Accuracy: ±2% of adjustable range at constant temperature
Rugged, compact housed design for industrial use
Rugged, compact housed design for industrial use
Wetted parts: Anodized aluminum body and Buna-N diaphragm/seals (standard configuration)
Wetted parts: Anodized aluminum body and Buna-N diaphragm/seals (standard configuration)
Designed for long service life and dependable operation in harsh environments
Designed for long service life and dependable operation in harsh environments
Construction & Specifications
Electrical Rating: 10 amps at 125/250 VAC, 3 amps at 480 VAC
Electrical Rating: 10 amps at 125/250 VAC, 3 amps at 480 VAC
Pressure Connection: ¼″ NPT female (standard)
Pressure Connection: ¼″ NPT female (standard)
Proof Pressure: Up to 1000 psi (depending on configuration)
Proof Pressure: Up to 1000 psi (depending on configuration)
Deadband: Approximately 0.1 to 1.2 psi for 15 psi range models
Deadband: Approximately 0.1 to 1.2 psi for 15 psi range models
Operating Temperature Range: -20°C to +74°C (-4°F to +165°F)
Operating Temperature Range: -20°C to +74°C (-4°F to +165°F)
Switch Type: Snap-action, single-pole double-throw (SPDT)
Switch Type: Snap-action, single-pole double-throw (SPDT)
Housing Material: Durable die-cast enclosure for protection and easy mounting
Housing Material: Durable die-cast enclosure for protection and easy mounting
Applications
Low-pressure monitoring and control in industrial systems
Low-pressure monitoring and control in industrial systems
Pumps, compressors, and machine tools
Pumps, compressors, and machine tools
Hydraulic and pneumatic systems
Hydraulic and pneumatic systems
Automation and process control equipment
Automation and process control equipment
Suitable for vacuum or low-pressure air and gas control applications
Suitable for vacuum or low-pressure air and gas control applications
Certifications / Standards
Built to industrial and OEM standards for reliability
Built to industrial and OEM standards for reliability
Designed for general-purpose and light industrial applications
Designed for general-purpose and light industrial applications
Available in different ranges and connection options under the E1H series
Available in different ranges and connection options under the E1H series
Summary
The Barksdale E1H-H15 Pressure Switch is a compact, housed, industrial-grade pressure switch designed for low-pressure control applications ranging from 0.5 to 15 psi. It features a rugged aluminum body, snap-action SPDT contacts, and adjustable setpoints for accurate and repeatable performance. Ideal for machinery, fluid power systems, and automation processes where dependable pressure monitoring is critical.

Weight: 5 lbs
Dimensions: 4 × 7 × 3 in
