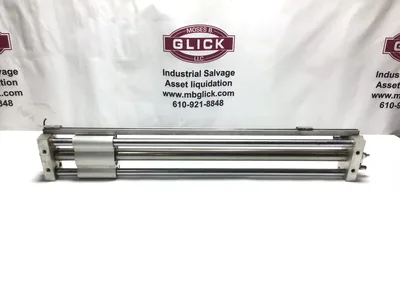

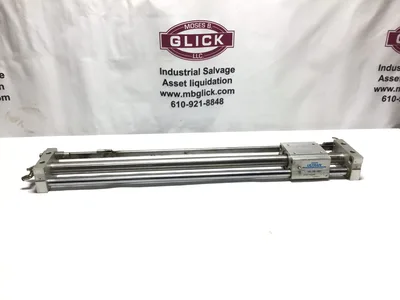

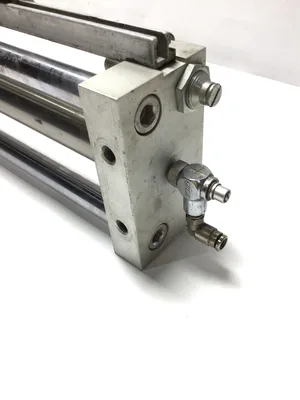

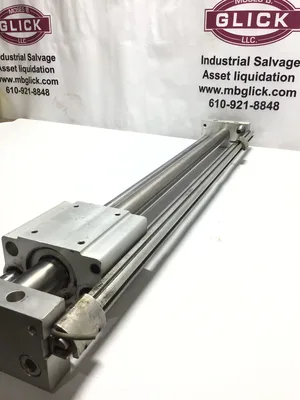

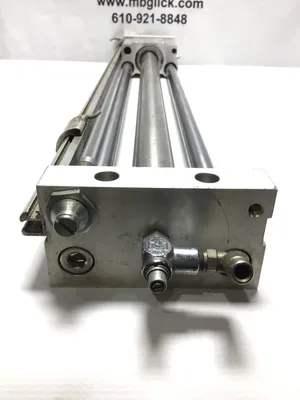

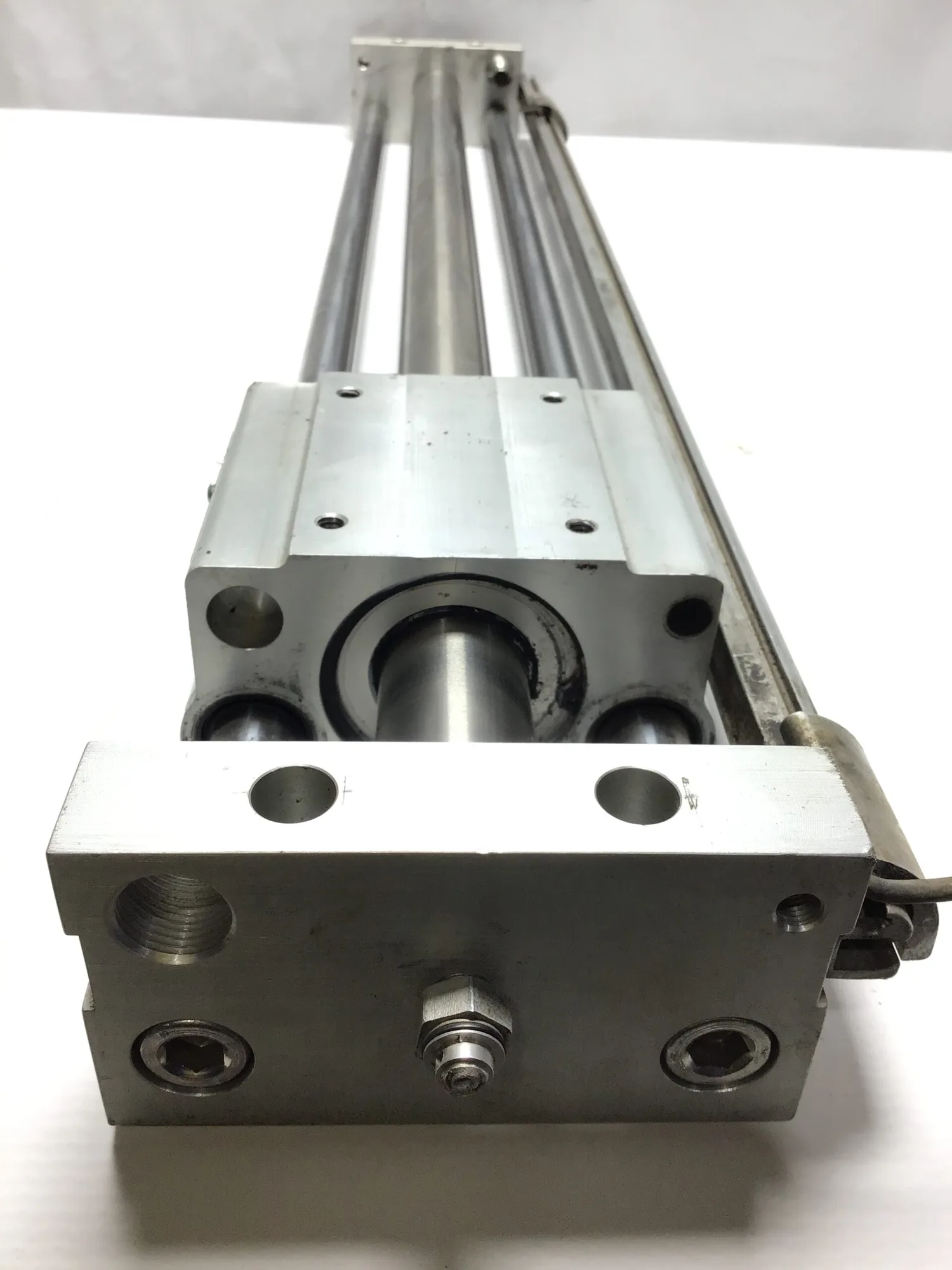

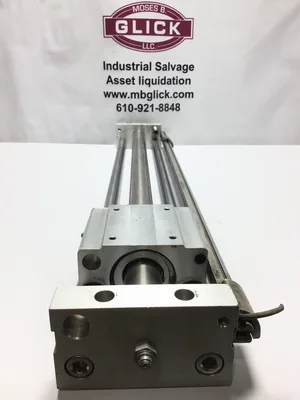

Bimba USS-1226-A2B1T Ultran Slide Rodless Cylinder 1-1/4″ Bore x 26″ Stroke w/ Switch Track

Full Product Description:
Bimba USS-1226-A2B1T — Ultran Slide Rodless Cylinder
The Bimba USS-1226-A2B1T is a self-guided, magnetically coupled rodless slide cylinder from Bimba’s Ultran Slide (USS) series — engineered for precise, space-efficient linear motion in demanding industrial automation applications. With a 1-1/4″ bore, 26″ stroke, and built-in guide rods, this actuator handles side and moment loads that conventional rodless cylinders cannot, making it ideal for direct load carrying without external guidance systems.
This unit comes fully equipped with a Switch Track for sensor mounting, Bumpers on End 1 for quiet, cushioned end-of-stroke stopping, and Stroke Adjustment on End 2 for fine-tuning travel length in the field.
Model Number Decoder
Specifications
Key Features
Built-in guide rods — self-guided motion handles side and moment loads without external support
Silver magnetic coupling — strong carriage-to-piston bond for reliable load transfer
~50% space savings vs. conventional rod cylinder designs
Switch Track (T) — integrated rail for mounting position sensors at any point along stroke
Bumpers on End 1 (B1) — reduces noise and impact at end of stroke
Stroke Adjustment on End 2 (A2) — field-adjustable travel limit without disassembly
Stainless steel 304 body — corrosion-resistant for harsh or washdown environments
Factory pre-lubricated — extended service life; compatible with in-line mist lubricator
Double-acting — powered in both directions; works with air or hydraulic fluid up to 100 PSI
Typical Applications
Parts transfer and feeding, pick-and-place automation, packaging machinery, door and gate actuation, cutting and clamping, material handling, conveyor diverting
Compatible Accessories & Replacement Parts
Position sensors / reed switches (for Switch Track)
External shock absorbers (LS, SS, or HS series — for high-velocity applications)
Stop collars (required if using shock absorbers as stroke limiters)
Factory lubricant: Bimba MS-2861-14OZ (14 oz grease gun cartridge)
Slide repair kits (factory repair recommended for USS series)

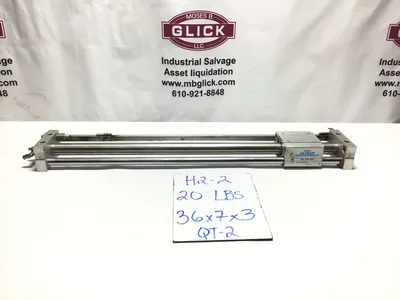

Weight: 20 lbs
Dimensions: 36 × 7 × 3 in
