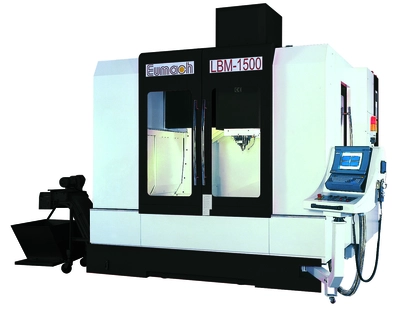

LBM-1500

Bridge type machining centers

[Specifications]
[MODEL | LBM-1500]
Table / Overall Size: 1600 mm x 1000 mm
Table / T-SLOT: 18 mm x 7 x 125 mm
Table / Maximum Loading: 3000 kgs
Travel / X Axis: 1750 mm head left & right
Travel / Y Axis: 1000 mm table in & out
Travel / Z Axis: 650 mm head up & down
Distance / Between 2 Columns: 1750 mm
Distance / Spindle To Table Top: 200 mm ~ 850 mm (Note)
Spindle: See Page 5 / Motor: S1:35 KW / 78 Nm
Spindle: See Page 5 / Taper: HSK-A63 (BT#40)
Spindle: See Page 5 / Speed: 18000 RPM (14000RPM, 20000RPM)
Feedrate / Cutting: UP TO 20 M / min
Feedrate / Rapid X/Y/Z: 30 /30 / 30 M / min
Feedrate / Minimum Setting: 0.001mm
Automatic Tool Changer / No. Of Tools: carousel armless 16 (swing arm 32)
Automatic Tool Changer / Max. Tool Dia./Length: 80 mm / 250 mm
Automatic Tool Changer / Max. Tool Weight: 7 kgs
Coolant & Lubrication / Coolant Tank Volume: 300 Liters
Coolant & Lubrication / Pneumatic Required: 7 kgf / cm2
Coolant & Lubrication / Lubrication Tank: 4 Liters
Accuracy / Positioning: 0.005 mm / 300 mm
Accuracy / Repeatability: 0.003 mm
Accuracy / Roundness: 0.01 mm / 300 mm DIA.
Accuracy / Machine Net Weight: 15000 kgs
[Standard Accessories :]
Standard Accessories :
1. Full guard with roof 2.Armless ATC 3.Coolant system 4.Spindle air blast 5.Auto. lubrication 6.Working lamp 7.Alarm light 8.Levelling Pads & Bolts 9.Adjusting tools & box 10. 15000RPM motor spindle & water cooler
