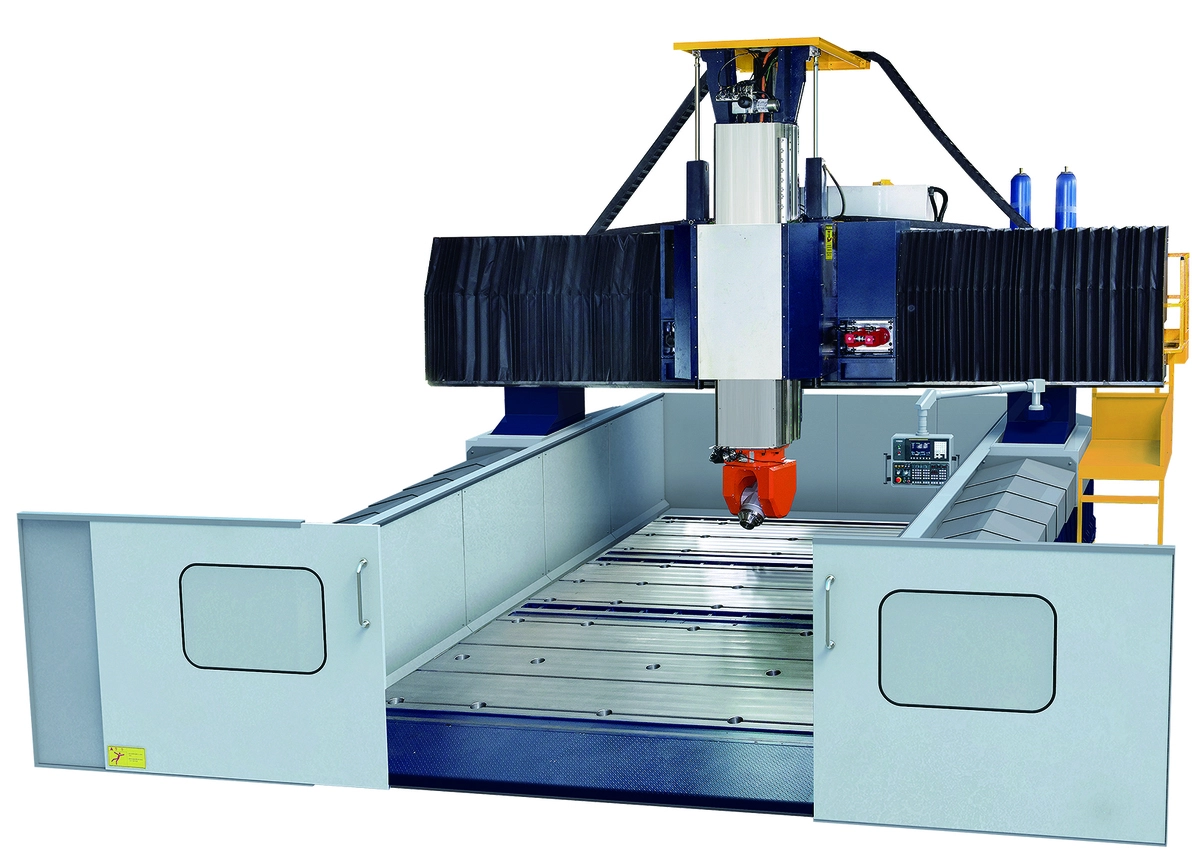

GM-33

GANTRY TYPE MACHINING CENTERS

[Model | Unit | GM-33]
[Between Columns | mm | 3350]
[Travel | X-Travel | m | 6m ~ 36m Every 1m add]
Y-Travel: 2600 mm
Z-Travel: 1100 (1400/1500) mm
W-Travel: N/A mm
[Table | Table Wide | mm | 2800]
Table Length: Table length = X Travel m
[Spindle nose to table | mm | 600 ~ 600 +Z]
[Power-speed | kW | 22/26-6000rpm]
[X axis rack-pinion | - | -]
[Y axis rack-pinion | - | NA]
[ATC Capcity | pcs | 32 pcs]
[X/Y/Z/W Feed rate G00 | m/min | 15/10/10]
Machine size / Length: 15m~45m Every 1m add m
Machine size / Width: 8.3 m
Machine size / Height: 5.4 m
[Machine Weight (app.) | ton | 65+5/m]
