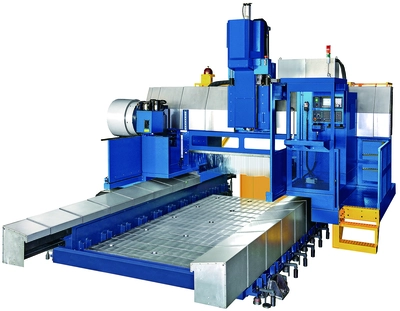

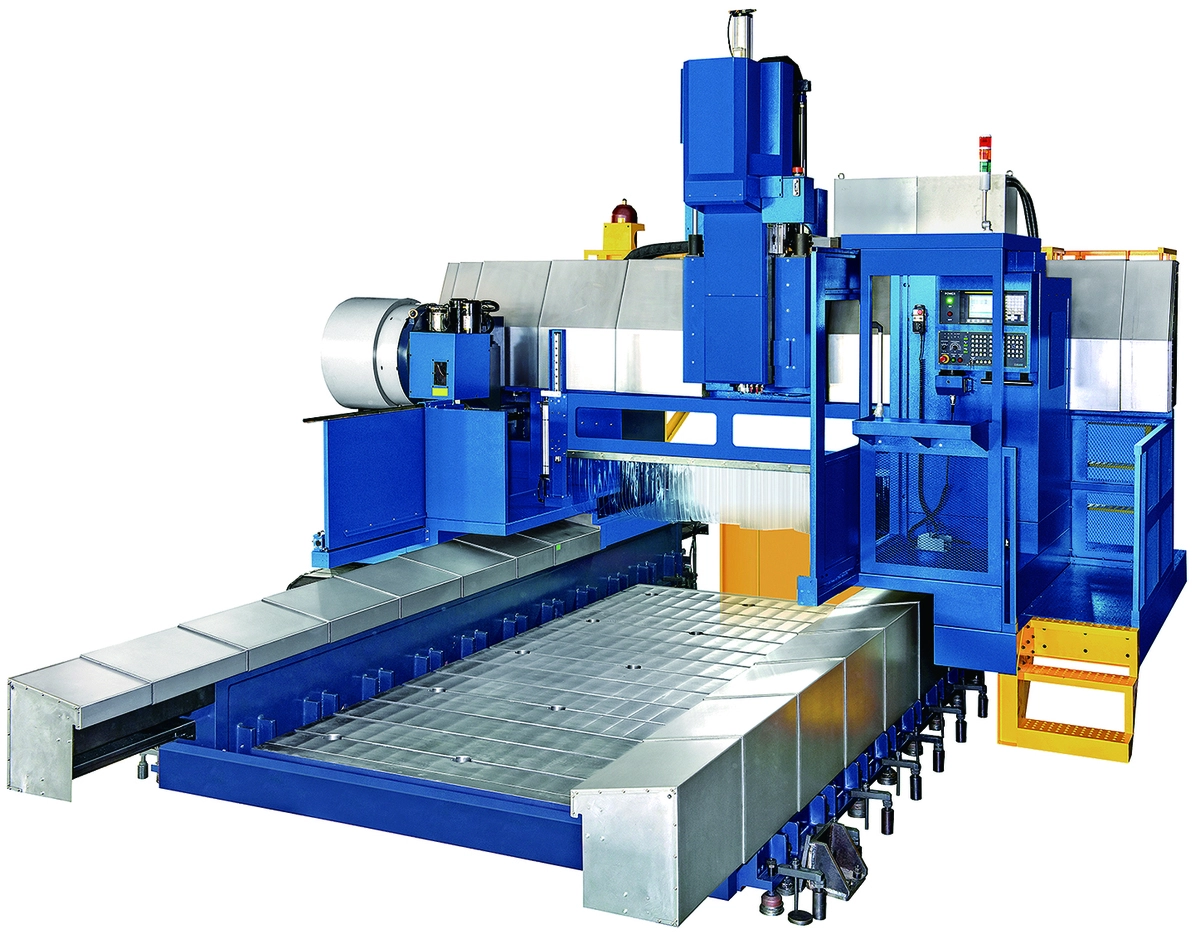

HDT-18

HIGH SPEED MILLING, DRILLING, & TAPPING MACHINE

[Model | Unit | HDT-18]
[Between Columns | mm | 1850]
Travel / X-Travel: 2m~20m Every 1m add m
Travel / Y-Travel: 1800 mm
Travel / Z-Travel: 800 (1100) mm
Travel / W-Travel: N/A mm
Table / Table wide: 1200 mm
Table / Table length: Table length = X Travel m
[Spindle nose to table | mm | 555~1355]
[Power-speed | kW | 18.5/22 – 6000 rpm]
[X axis rack-pinion | - | X >= 5m]
[ATC Capacity | pcs | 24 pcs]
[X/Y/Z Feed rate G00 | m/min | 15/15/12]
Machine size / Length: 6.5m ~ 23.5m Every 1m add m
Machine size / Width: 5.9 m
Machine size / Height: 4 m
[Machine Weight (app.) | ton | 20+1.5/m]
