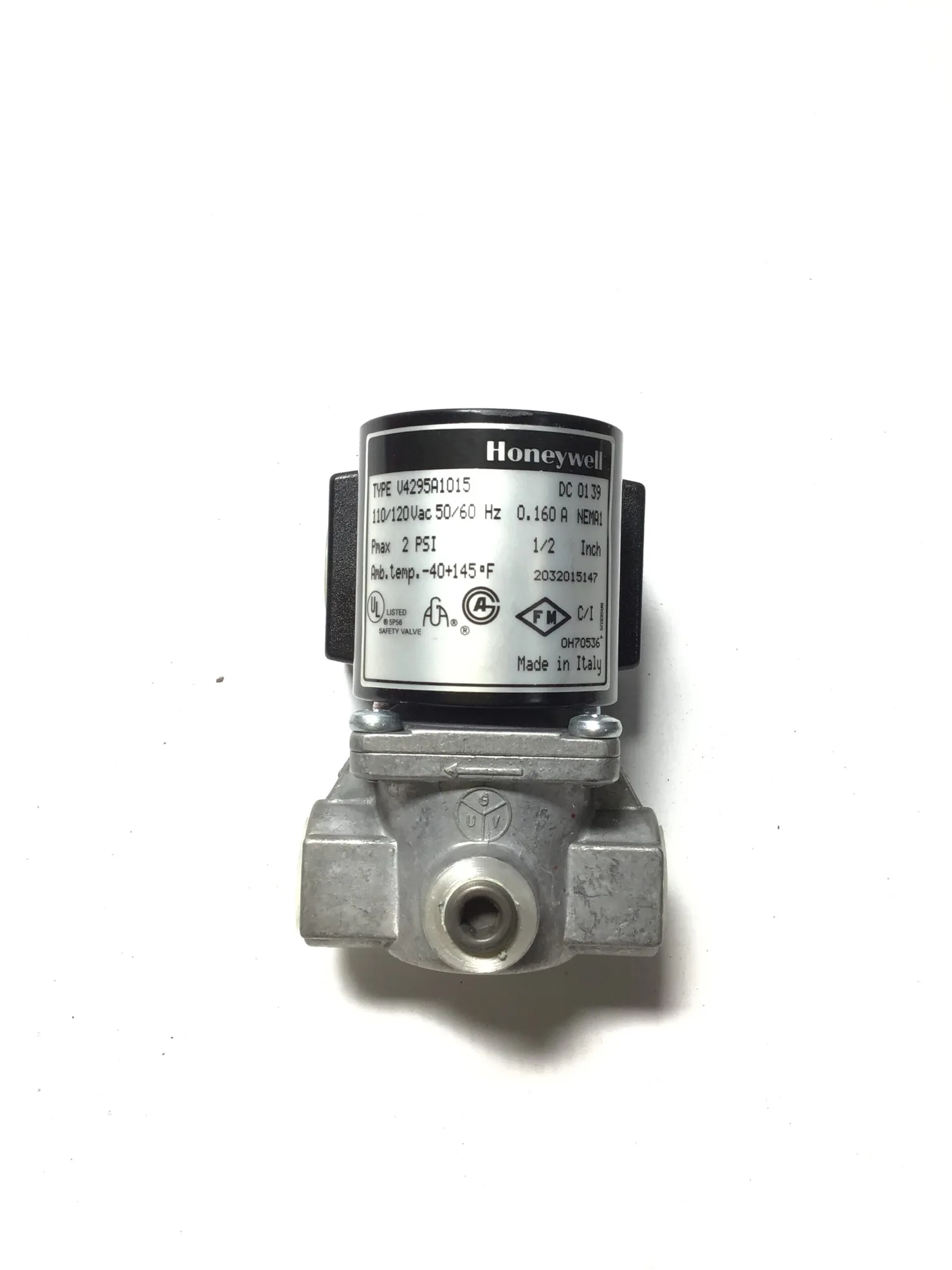

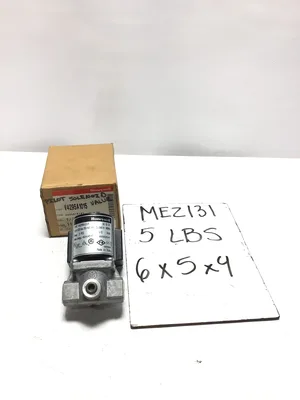

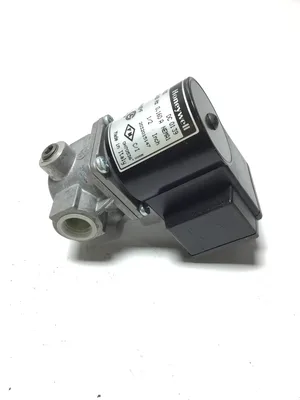

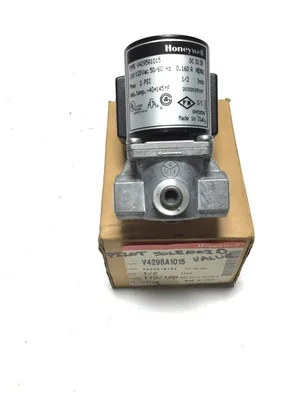

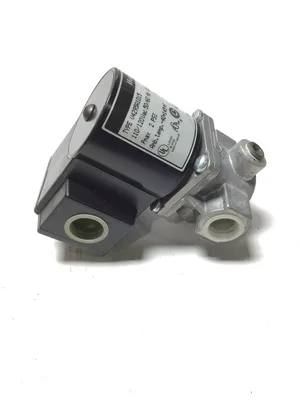

Honeywell V4295A1015 Pilot Solenoid Valve 1/2″NPT
Overview
Description
The Honeywell V4295A1015 Pilot Solenoid Valve is a reliable and versatile component designed for a wide range of industrial and commercial applications. With a 1/2″ NPT connection, a maximum pressure of 2 PSI, and operating on 110/120VAC 50/60Hz power, this solenoid valve offers exceptional performance and durability. Featuring a NEMA 1 enclosure and a temperature range of -40°F to 145°F, the V4295A1015 is built to withstand challenging environments. Its compact size and efficient 0.160A power consumption make it an ideal choice for applications where space and energy efficiency are crucial.
⚡ Operates on 110/120VAC power with 50/60Hz frequency, compatible with standard industrial electrical control systems.
📏 Features a 1/2″ NPT pipe connection (DN15) for secure threaded installation in compatible gas line assemblies.
💨 Rated for a maximum pressure of 2 PSI (13.8 kPa), ideal for pilot gas and low-pressure fuel control applications.
🔌 Current rating is 0.160A max, providing efficient and reliable solenoid operation at rated voltage and frequency.
🛡️ Built with a NEMA 1 enclosure, suitable for indoor industrial and commercial environments requiring protected electrical components.
🌡️ Designed to withstand extreme conditions with an operating temperature range of -40°F to +145°F (approximately -40°C to +60°C).
Specifications
| Dimensions | 6 × 5 × 4 in | 6 × 5 × 4 in |
|---|---|---|
| Weight | 5 lbs | 5 lbs |
Weight: 5 lbs
Dimensions: 6 × 5 × 4 in
