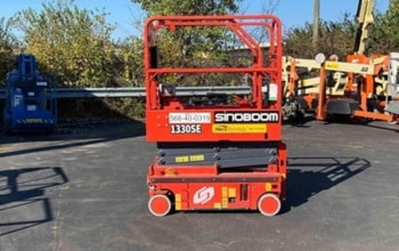

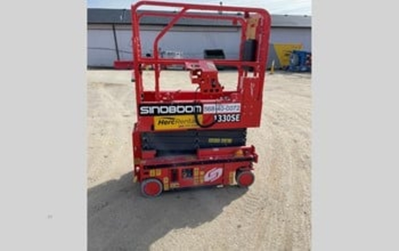

USED 2021 Sinoboom 1330SE

Max Working Height: 19 ft
Max Platform Height: 12 ft 6 in
Platform Size: 4 ft 5 in × 2 ft 4 in
Platform Extension: 23.6 in
Stowed Dimensions:
Length: 4 ft 8 in
Width: 2 ft 6 in
Height (Rails Folded): 5 ft 6 in
Height (Rails Up): 6 ft 6 in
Ground Clearance:
Stowed: 2.5 in
Deployed: 0.75 in
Wheelbase: 3 ft 8 in
Turning Radius (Inside/Outside): 12 in / 4 ft 5 in
Operating Weight: 1,940 lbs
⚙️ Performance & Power
Platform Capacity: 529 lbs
Extension Capacity: 220 lbs
Occupants Allowed (Indoor): 2
Drive Speed:
Stowed: 2.5 mph
Raised: 0.5 mph
Lift Time: 30–33 sec
Lowering Time: 25–30 sec
Gradeability: 25%
Tilt Limit (Front/Side): 3° / 1.5°
Tires: 9 in × 3 in solid, non-marking
Battery: 24V DC (2 × 12V, 115Ah)
Charger Input: 100–240V AC
Charger Output: 15A
Hydraulic Oil Capacity: 1.1 gal

Status: Available
Weight: 1940.0
Rental Rate: $495
Rate Schedule: DAY: $74
Rate Schedule: WEEK: $165
Rate Schedule: 3 MOS: $1485
Rate Schedule: 6 MOS: $2970
