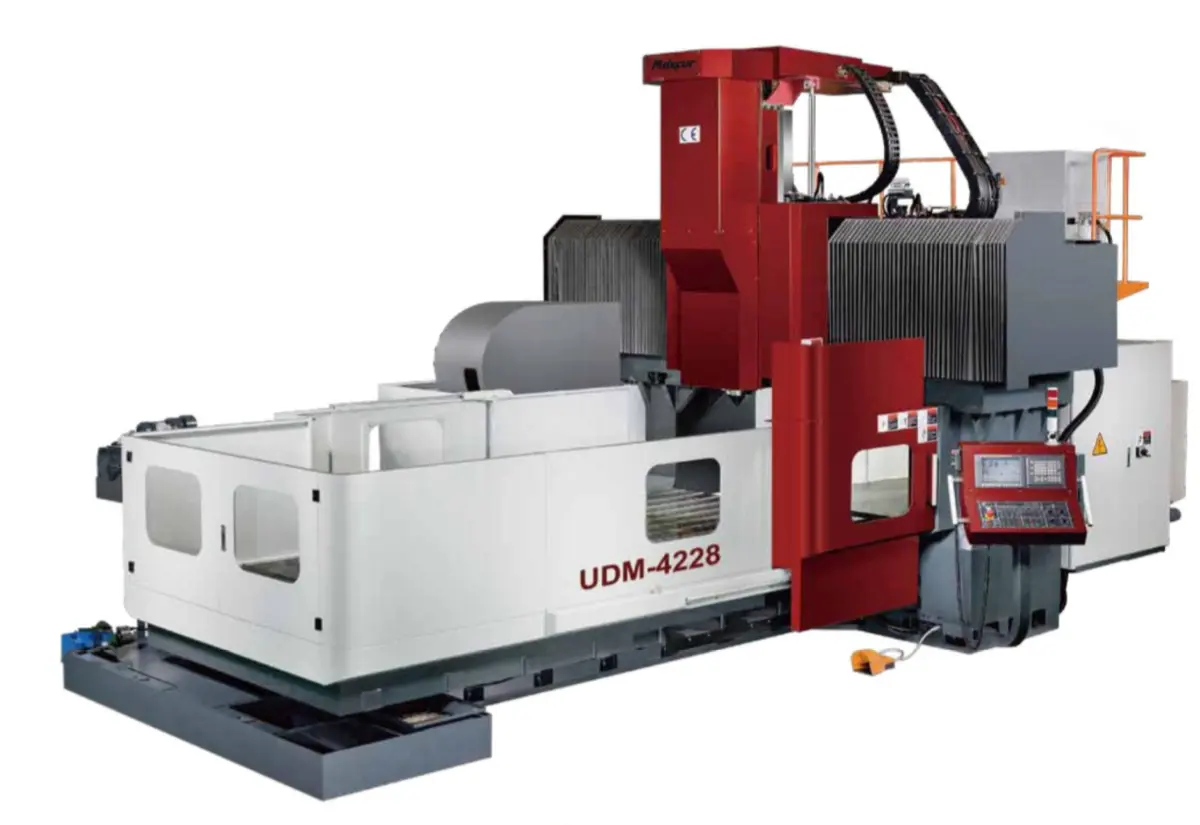

UDM-2217E

STANDARD ACCESSORIES
Glass window type splash guard
Programmable coolant system
Automatic lubrication system
Spindle air blast system
Working lamp
Alarm lamp for abnormal situations
Indication lamp for dwell & end of job
Leveling bolts & pads
Chip auger & chain type chip conveyors
Toolbox with spanners & wrenches
M.P.G
Machine inspection lists
Operation manuals
Controller manuals and circuit diagram
Auto power off
RS-232C terminal interface
Spindle coolant system
Hydraulic system
Heat exchanger
FAGOR Controller

[MODEL | UNIT | UDM-2217E]
TABLE / Table Size: 2000x1500 mm
TABLE / T-Slots: 22 mm
TABLE / Maximum Load: 6 tons
TRAVEL / X Axis: 2200 mm
TRAVEL / Y Axis: 1700 mm
TRAVEL / Z Axis: 1000 mm
SPINDLE / Spindle Servo Motor-cont./ 30min.: 15/18.5 (22/26) kW
SPINDLE / Speed: 4000(6000) rpm
SPINDLE / Taper: 7/24 taper ISO.50, BT-50
DISTANCES / Between Two Columns: 1800 mm
DISTANCES / Spindle Nose to Table Center: 200~1200 mm
FEED RATE / Rapid Feed rate X/Y/Z: 15/15/12 m/min.
FEED RATE / Minimum Setting: 0.001 mm/min.
FEED RATE / Cutting Feed rate: 1~8000 mm/min.
COOLANT & LUBRICATION / Coolant Tank Volume: 450 L
COOLANT & LUBRICATION / Hydraulic Tank Volume: 70 L
COOLANT & LUBRICATION / Lubrication Tank Volume: 8 L
MISCELLANEOUS / Power Required: 50 kVA
MISCELLANEOUS / Pressurized Air: 7 kg/cm²
MISCELLANEOUS / Hydraulics Required: 70 kg/cm²
MISCELLANEOUS / Machine Weight: 22 tons
MISCELLANEOUS / Controller: FANUC 0iMF (FANUC 32i-MB/ 31i-MB / MELDAS / SIEMENS / HEIDENHAIN)
