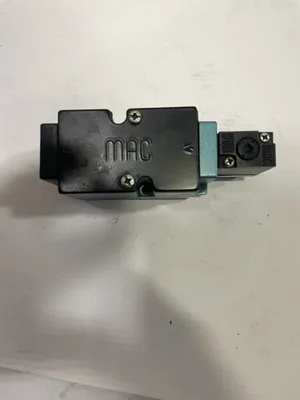

MAC 82A-AD-000-TU-DDAP-1DK 4-Way Solenoid Directional Spool Valve 24V 150PSI NIB

The MAC 82A-AD-000-TU-DDAP-1DK is a high-speed, pilot-operated 4-way solenoid valve from the MAC 82 Series, built for precise control of compressed air in automated industrial systems. Its job is to take an electrical signal (typically 24 VDC) and instantly switch the direction of airflow to drive pneumatic actuators like cylinders, diaphragms, or valve seats. Inside, it uses MAC’s balanced spool design, which means shifting force is consistent regardless of pressure fluctuations—this gives it very fast response times, reliable switching, and long service life even in demanding environments. The “82A” platform indicates a compact body with relatively high flow capacity, while the extended part code (AD-000-TU-DDAP-1DK) specifies details such as port configuration, electrical connector with suppression (to protect control circuits), manual override style, and sealing materials. In real-world use, this valve acts as a critical interface between electronic controls (PLC or controller) and pneumatic motion, enabling accurate, repeatable movement in systems like fluid handling skids, packaging equipment, or process automation assemblies.

Weight: 6 lbs
Dimensions: 10 × 8 × 7 in
