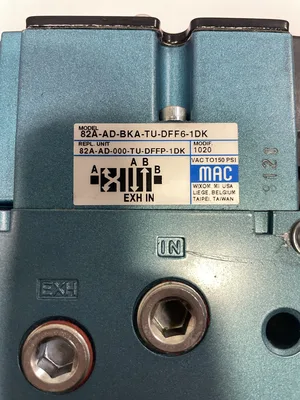

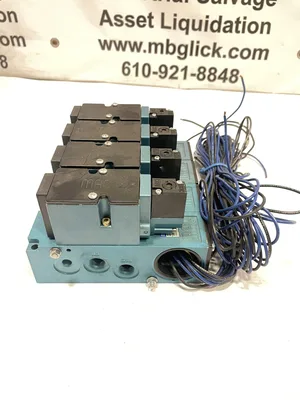

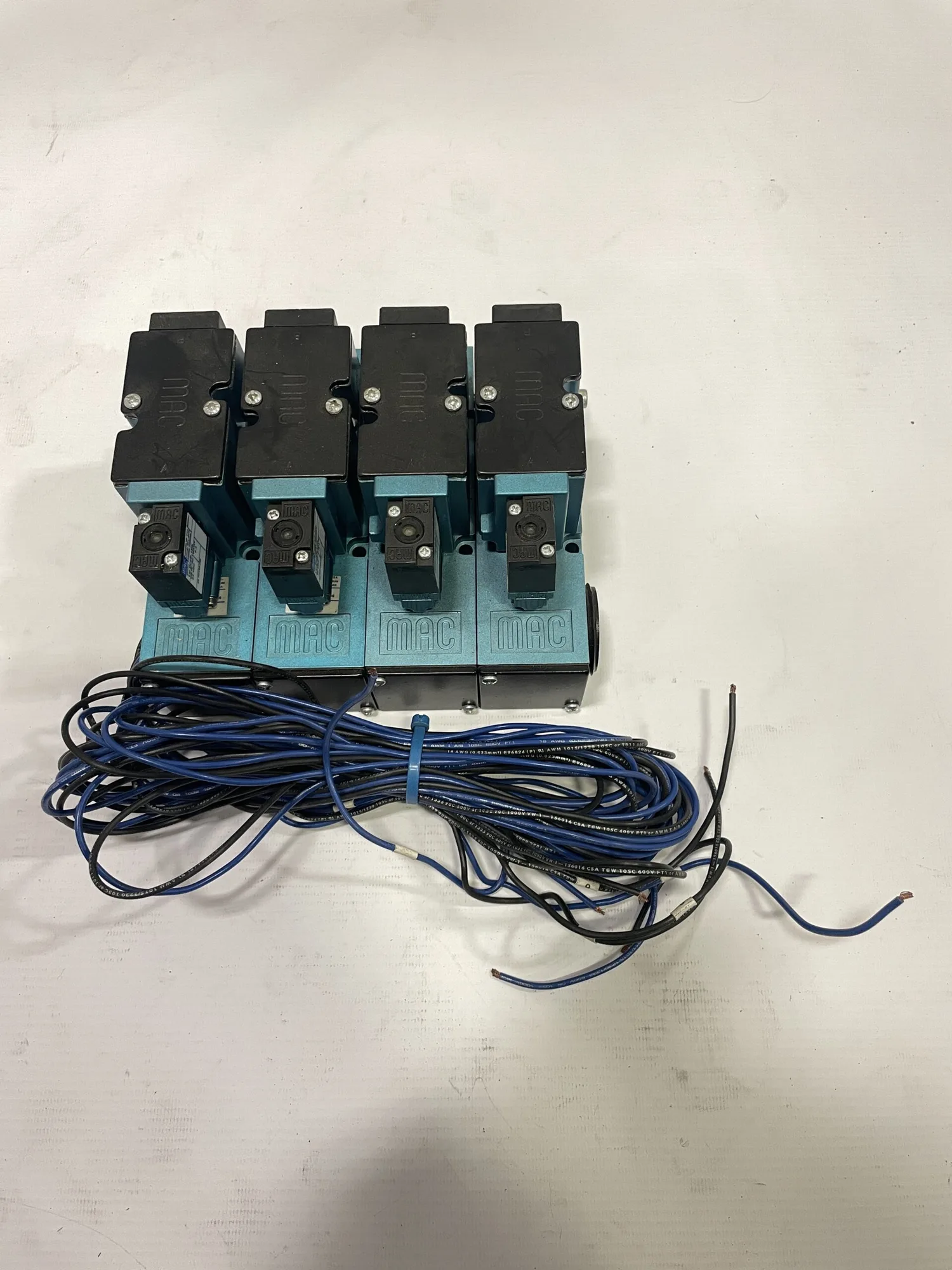

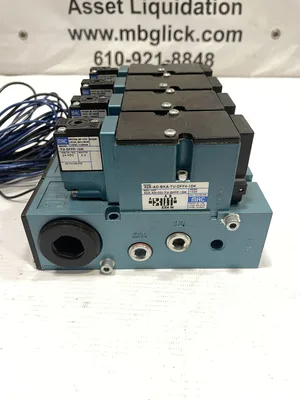

MAC 82A-AD-BKA-TU-DFF6-1DK 4-Valve Directional Control Valve Manifold 24V 150PSI

The MAC 82A-AD-BKA-TU-DFF6-1DK is a MAC Valves 82 Series solenoid pilot-operated directional control valve designed for high-speed, high-cycle industrial pneumatic applications. This valve is part of MAC’s well-known 82 Series, which is widely used in automation systems where fast response, consistent shifting, and long service life are critical for reliable machine performance.
Built around MAC’s signature balanced spool and balanced poppet pilot design, the valve provides extremely fast and repeatable actuation regardless of inlet pressure fluctuations. This design minimizes friction and internal wear, allowing the valve to operate efficiently over millions of cycles in demanding environments such as packaging equipment, assembly automation, and material handling systems.
The 82 Series configuration allows for flexible piping options, meaning the valve can be used as a 4-way, 3-way, or even 2-way function, depending on how it is installed. It can also be adapted for normally open or normally closed operation, as well as vacuum or diverter applications, making it a highly versatile component in pneumatic circuit design. This adaptability is one of the reasons the 82 Series is commonly found in OEM machinery across multiple industries.

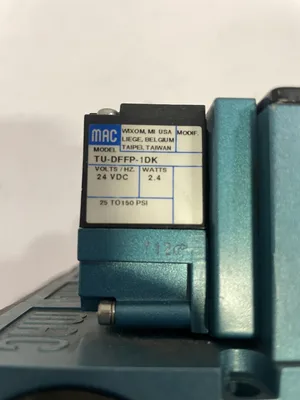

The TU-DFF6-1DK configuration code defines specific electrical and pneumatic characteristics such as voltage type, solenoid arrangement, porting style, and mounting interface, ensuring compatibility with existing MAC manifolds or standalone installations. Typically, these valves are designed for 24 VDC coil operation, low wattage consumption, and fast electrical response to match high-speed automation requirements.
Built for industrial durability, the MAC 82 Series valve body is engineered to withstand continuous operation in harsh environments. It resists wear from vibration, pressure cycling, and contamination commonly found in factory air systems. This makes it especially suitable for continuous-duty applications where downtime is costly and reliability is essential.

Weight: 15 lbs
Dimensions: 12 × 11 × 11 in
