STANDARD FEATURES & ACCESSORIES
FULL SPLASH GUARD WITH TOP ROOF
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
SPINDLE AIR BLAST SYSTEM
WORKING LAMP ALARM LAMP
M.P.G.
INDICATION LAMP FOR DWELL & END OF JOB
SPINDLE #40 TAPER & 24 ARM ATC
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
TOOLBOX WITH SPANNERS & WRENCHES
CHAIN TYPE CHIP CONVEYORS

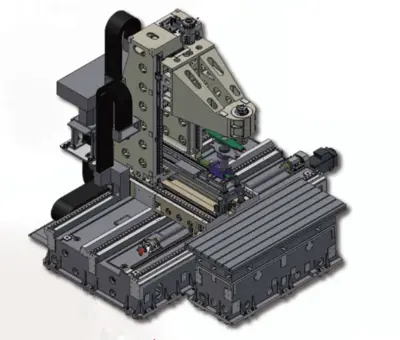

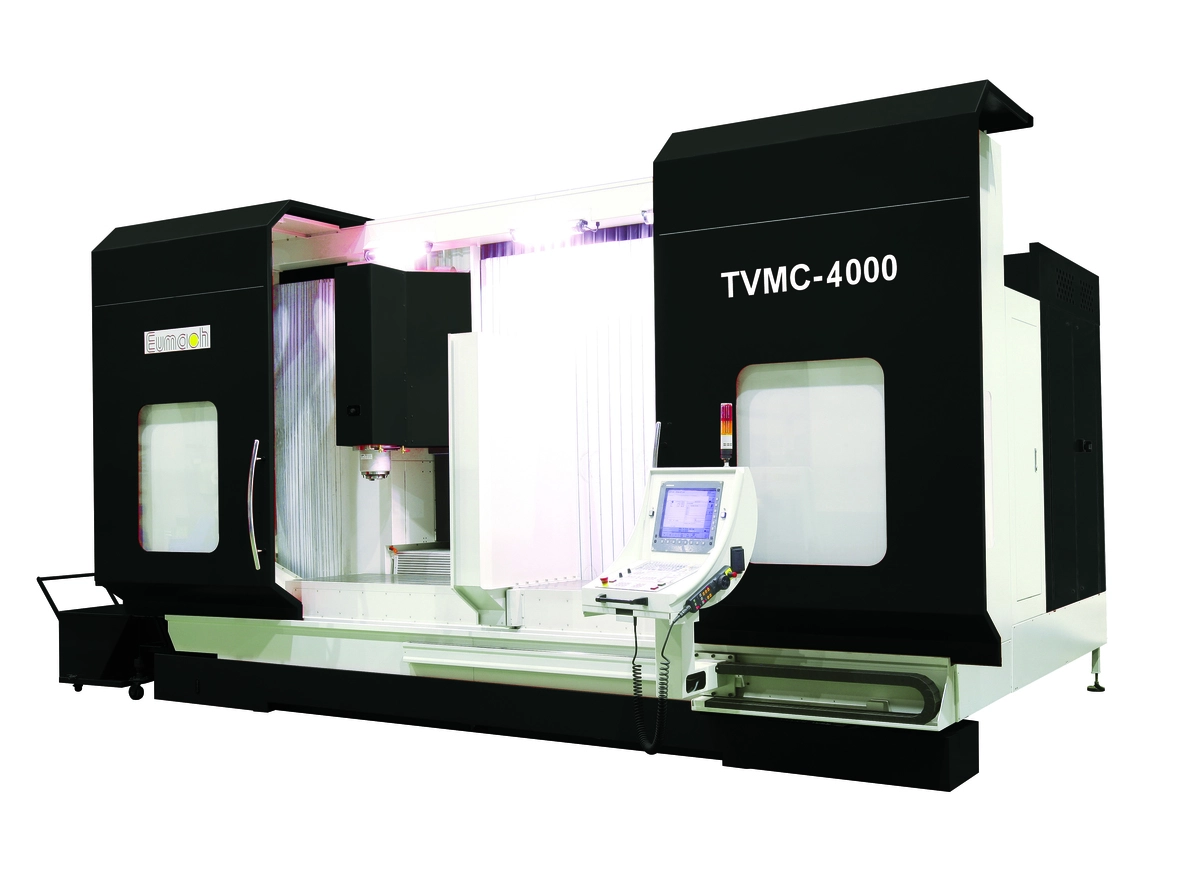

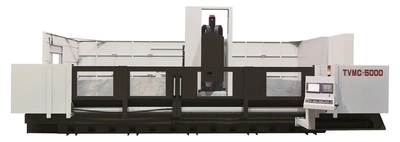

MODEL: TVMC-5000(L) TVMC-2000(L) TVMC-3000(L) TVMC-4000(L)
[TABLE]
Overall size: 2400, 3400, 4400, 5400 x 700 (1000) mm
T slots (size x no x pitch): 18 x 7 x 100 (125) mm
Maximum loading: 5500 KG 3000 KG 4000 KG 5000 KG
[TRAVEL]
X / Y / Z axis #40 spindle: 2320, 3320, 4320, 5320 mm x 710(1000) mm x 610(1000) mm
[DISTANCES]
Spindle to column ways: 750 (1281) mm
Spindle to table top: 150~760 (300~1300) mm
Floor to table top: 860 (1051) mm
[SPINDLE]
Taper: 10000 RPM UP TO 24000 RPM
Speed: 70mm
Front bearing diameter: 7.5 kw / 11 kw UP TO 42 kw
Motor: 10000 RPM UP TO 24000 RPM
[FEED RATES X / Y / Z]
Cutting feedrate: 10M
Rapid feedrate: 18M / 30M / 30M 30M / 30M / 30M 24M / 30M / 30M 24M / 30M / 30M
[AUTOMATIC TOOL CHNGER]
Type of atc: SWING ARM
No.of atc: 24 (32, 40, 50)
Max.tool (dia / length): 150 / 300 mm
Max.tool weight: 7 kg
Tool to tool: 3”
Chip to chip: 10”
[BALLSCREWS ON 3 AXIS]
Diameter: 50 / 70 / 80 x 50 x 50 mm
Precision class: C3, 0.008 mm / 300 mm
Coolant motor power: 1.27 kw
Coolant tank volume: 600 L ~ 1000 L
Coolant motor capacity: 20 L / Min.
Lubrication motor power: 25 Watt
Lubrication tank volume: 4L
[ACCURACY]
Positioning: JIS 6338 : ±0.005 mm / 300 mm VDI 3441: P0.015 ~ P0.02 mm
Repeatability: JIS 6338 : ±0.003 mm VDI 3441: PS0.01 ~ PS0.015 mm
Roundness: JIS 6338 : ±0.01 mm / 300 mm DIAMETER
[MISCELLANEOUS]
Machine net weight: 21000 kg ~ 40000 kg
Pneumatic required: 6 kg
Guarding: FULL GUARD & ROOF EXCEPT TVMC-5000 IS HALF GUARD
