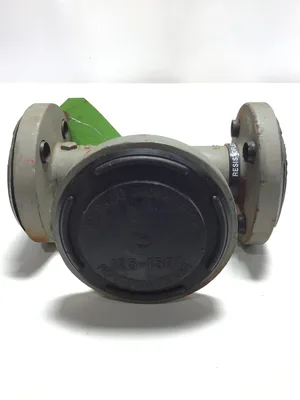

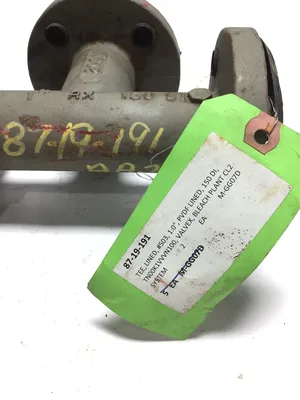

Smithco RX 150 DI Industries 1″ PVDF Lined Flanged Tee DK Valve

Engineered for demanding chemical service, this Smithco Industries 1″ flanged tee delivers exceptional durability and corrosion resistance with its PVDF-lined interior and PTFE components, housed in a rugged ductile iron (DI) body rated for Class 150 pressure. Built for reliability in harsh environments like bleach plants, water treatment, and chemical processing systems, this fitting is designed to withstand aggressive media while minimizing maintenance and extending service life. Its flanged configuration ensures secure, leak-resistant connections, making it a dependable choice for industrial piping systems where performance and longevity are critical.
Key Features:
Brand: Smithco Industries
Size: 1 inch
Configuration: Tee
Pressure Rating: Class 150
Material: Ductile Iron (DI) body
Lining: PVDF (Polyvinylidene Fluoride) with PTFE components
Connection Type: Flanged ends

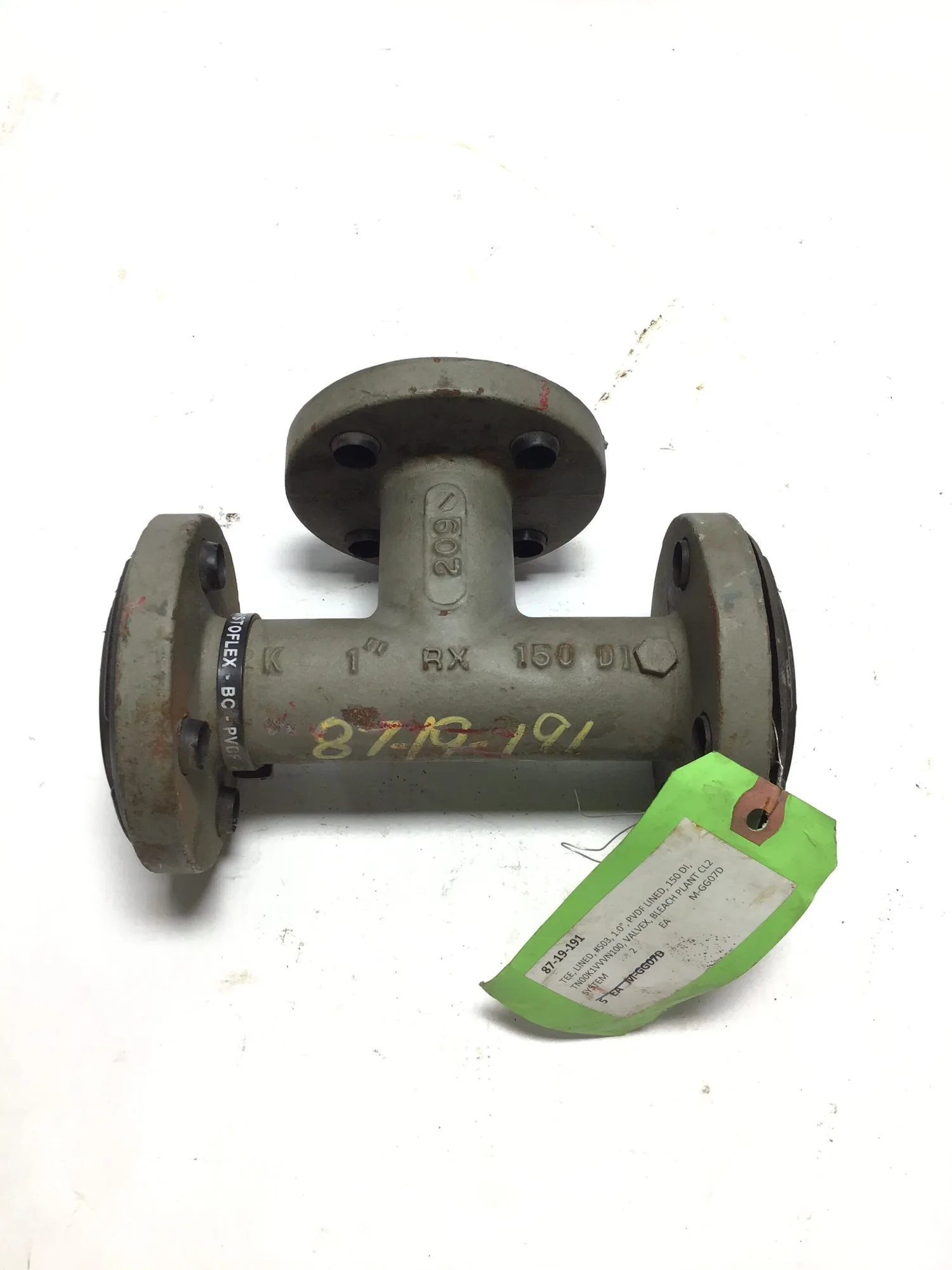

Markings: “1” RX 150 DI” cast into body

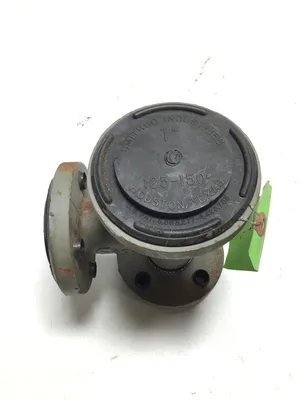

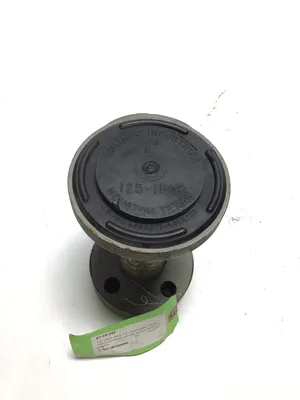

Cap Marking: 125–150#
Applications:

Perfect for industrial systems handling:
Bleach / chlorine processing
Chemical transfer lines
Corrosive fluids
Water treatment plants

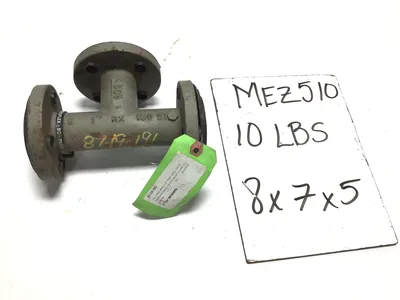

Weight: 10 lbs
Dimensions: 8 × 7 × 5 in
