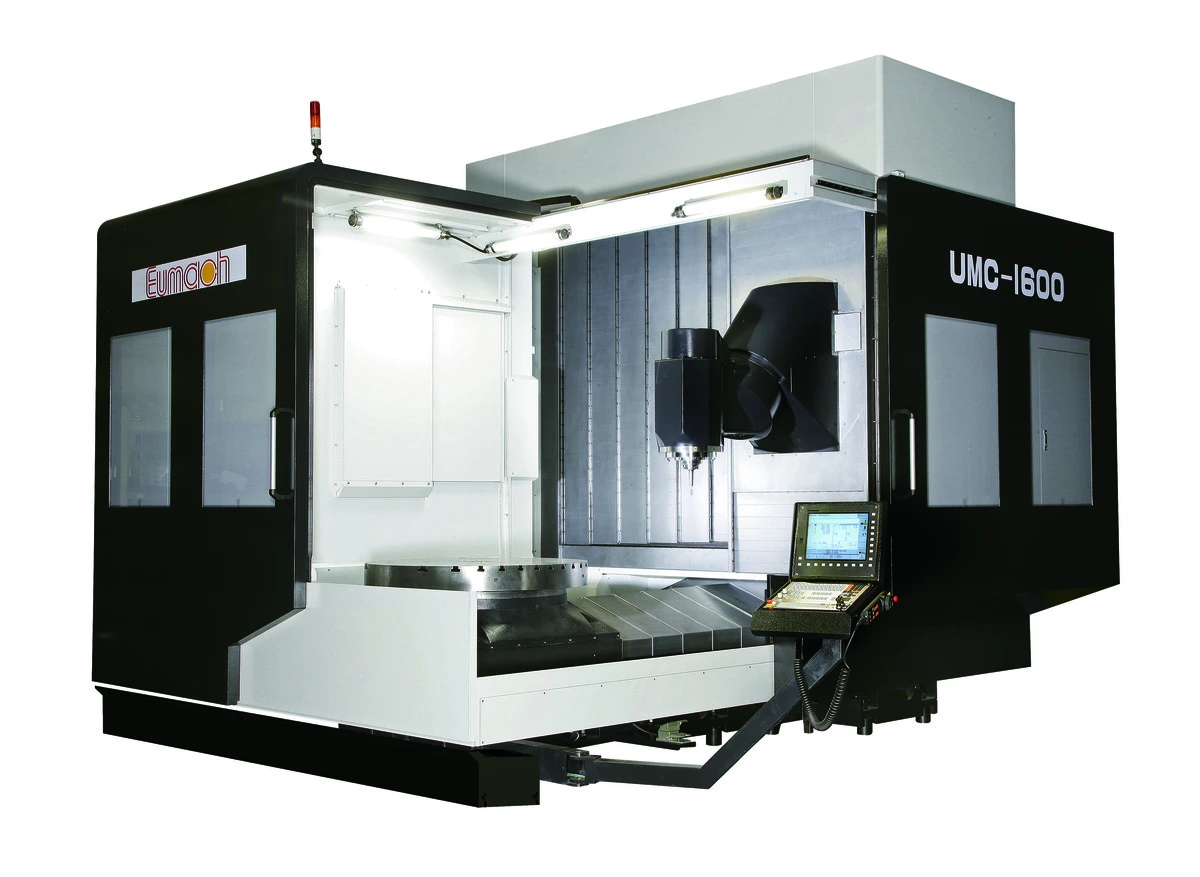

STANDARD FEATURES & ACCESSORIES
FULL SPLASH GUARD WITH TOP ROOF
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
SPINDLE AIR BLAST
SYSTEM WORK ALARM, INDICATION LAMPS
SPINDLE WATER COOLER
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
TOOLBOX WITH SPANNERS & WRENCHES
CHAIN TYPE CHIP CONVEYORS + 2 SCREW CHIP AUGERS
3 AXIS LINEAR SCALES + 2 AXIS ROTARY ENCODERS

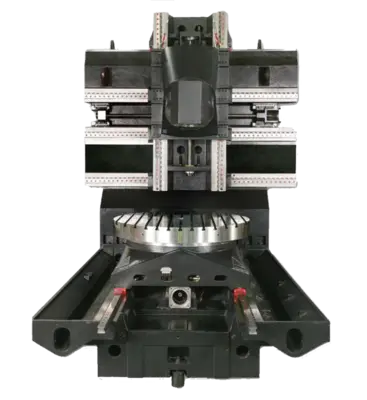

Travel: 1620mm / 1260mm / 1050mm X / Y / Z axis
Swivel head (B axis) / Vertical to horizontal time: 3seconds
Swivel head (B axis) / Transmission: DD torque motor
Swivel head (B axis) / Rotary angle: +10° / -190°
Motor spindle / Maximum spindle speed: 8,000 RPM
Motor spindle / Spindle power S1 / S6: 37.4 KW / 54 KW
Motor spindle / Spindle torque S1 / S6: 170 Nm / 390 Nm
Motor spindle / Spindle taper: HSK-A100 / BT / CAT / SK#50
Motor spindle / Front bearing diameter: 100mm
Distances / V : spindle nose to table top: 150mm ~ 1200mm
Distances / H : spindle center to table top: 100mm ~ 1150mm
Distances / V : spindle nose to table center: -300mm ~ 960mm
Distances / H : spind le center to table center: -250mm ~1010mm
Distances / Spindle center to column: 1105mm
Rotary table (C axis) / Table dimension: Ø 1320mm
Rotary table (C axis) / Table to floor: 1085mm
Rotary table (C axis) / Maximum loading: 4000KG
Rotary table (C axis) / Maximum rotation: 30 RPM
Rotary table (C axis) / Transmission: DD torque motor
Rotary table (C axis) / Indexing increment: 0.001°
Rotary table (C axis) / T slots: 13×18H×P100
Ball screw: Ø 55/ 55/63mm x 16/12/12mm X / Y / Z Diameter x pitch
X / Y / Z axis Roller guide / Number x width: 4/2/2 slide ways x 55mm
X / Y / Z axis Roller guide / Runner blocks number: 8/4/6
Feed rate / Rapid feed X / Y / Z: 24/24/24m/min
Feed rate / Cutting feed: 20/20/20 m/min
A T C / Tools number: 60 pieces
A T C / Maximum tool diameter: Ø 150mm
A T C / Maximum tool length: 350mm
A T C / Maximum tool weight: 20 kgs
A T C / Tools exchanging position: horizontal
Weight: 32000KG Before packing
