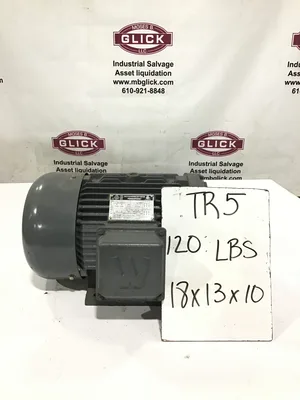

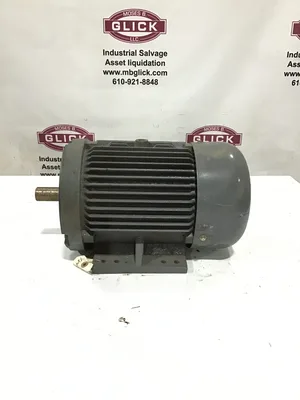

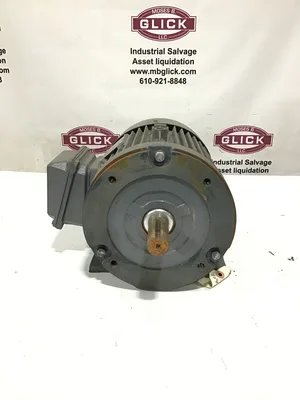

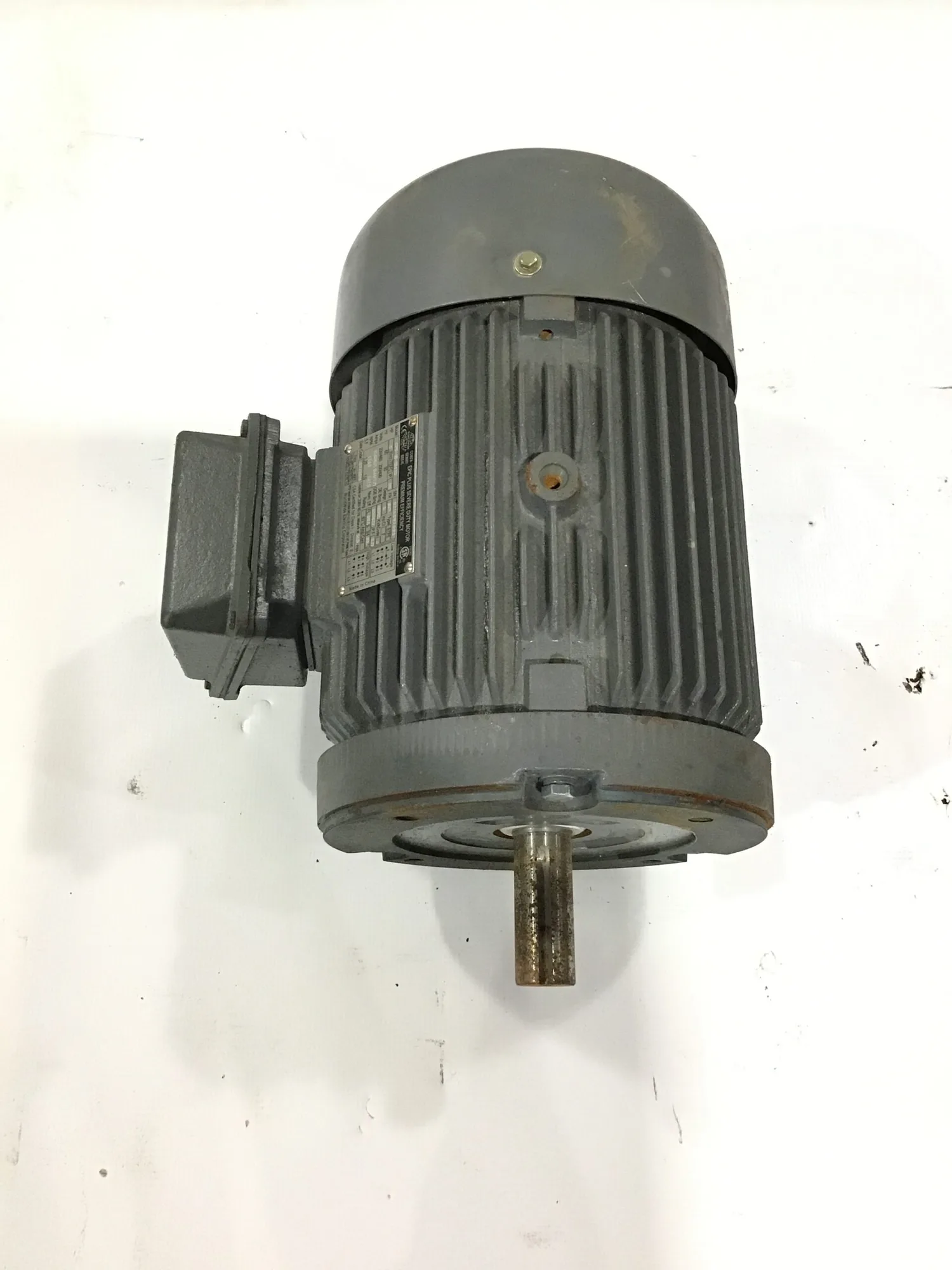

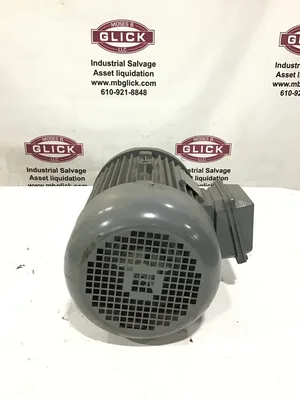

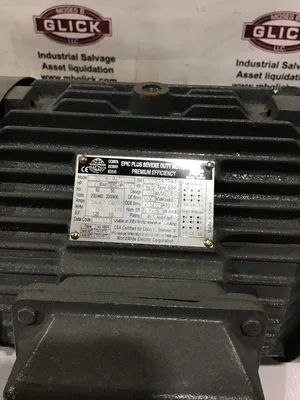

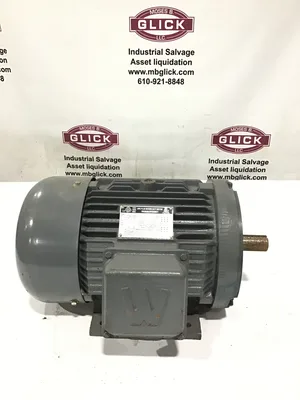

Worldwide Electric EP5-18-184TC Epic Plus Severe Duty Motor 5HP 1.25/1.0SF

Introducing the Worldwide Electric EP5-18-184TC Epic Plus Severe Duty Motor, a powerhouse designed for demanding applications. With a robust 5HP output and a versatile 1.25/1.0 service factor, this motor operates efficiently at both 230/460V and 200/400V, delivering speeds of 1470/1760 RPM. Engineered for durability, it features a NEMA Design B and Insulation Class F, ensuring reliable performance in severe conditions. With an amperage range of 13.42/6.71-15.44/7.72 Amps and compatibility with 50/60Hz power supply, this motor is the ideal choice for industrial settings where efficiency and longevity are paramount. Upgrade your operations with the Epic Plus motor and experience unparalleled reliability and performance.
🔌 5 Horsepower (5HP) severe duty electric motor designed for industrial-grade applications requiring reliable and continuous performance
⚡ Dual voltage rating: 230/460V and 200/400V for flexible installation across different power systems
🏃 Speed rating: 1470 RPM / 1760 RPM depending on voltage and frequency operation
🔄 Frequency compatibility: 50Hz / 60Hz for global industrial and commercial use
🔋 Full load amperage: 13.42/6.71 Amps at 230/460V and 15.44/7.72 Amps at 200/400V for stable energy performance
🛡️ Service Factor: 1.25 / 1.0 SF providing extra overload capacity under demanding load conditions
🏗️ Severe Duty construction built for harsh environments including dust, vibration, and heavy industrial workloads
⚙️ NEMA Design B motor engineered for normal starting torque and efficient running performance
🌡️ Class F insulation system for high thermal resistance and extended motor life in elevated temperature conditions
🔧 Frame type: 184TC frame designed for secure mounting and industrial compatibility
🧱 Epic Plus series engineered for durability, efficiency, and reduced maintenance requirements

Weight: 120 lbs
Dimensions: 18 × 13 × 10 in
