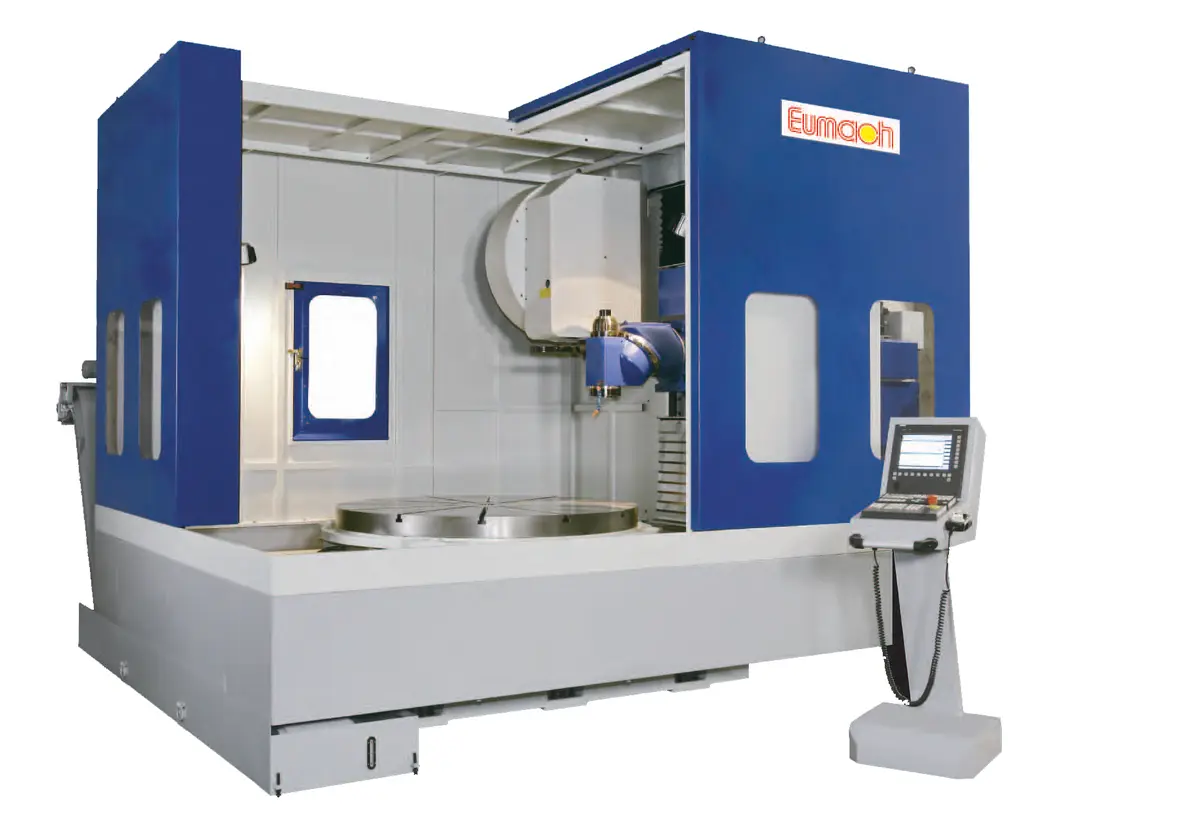

YZC-1650

Standard features & accessories :
3500RPM automatic V/H milling head
24 stations automatic tool changer
BT#50 spindle taper & ATC
full splash guarding with sliding roof
programmable coolant system
automatic lubrication system
Fagor control

Model: YZC-1650
Travel (Y,Z axis ) / Y axis : milling head forward & backward by sliding ram: 1000mm
Travel (Y,Z axis ) / Z axis : milling head up & down by sliding saddle: 952mm
Rotary table ( C axis ) / Table dimension: Ø 1650mm
Rotary table ( C axis ) / Table to floor: 929mm included 30mm leveling pads
Rotary table ( C axis ) / Maximum loading: 8000KG
Rotary table ( C axis ) / Indexing increment: 0.001° x 360,000 positions
Rotary table ( C axis ) / T slots: radial type 12 slots with 22mmH7
Vertical & horizontal milling head / Maximum speed: 3500 rpm
Vertical & horizontal milling head / Spindle power (S1 / S6): 17KW / 22KW
Vertical & horizontal milling head / Spindle taper: BT#50
Vertical & horizontal milling head / Front bearing diameter: 90 mm
Vertical & horizontal milling head / Vertical to horizontal time: 12 seconds
Distance / Vert. spindle nose to table top: 0 ~ 952mm
Distance / Vert. spindle nose to table center: 1149mm
Distance / Horiz. spindle center to table top: 0 ~ 1002mm
Distance / Horiz. spindle nose to table center: 1099mm
Axis Feed rate / Rapid feed Y / Z / C: 10M / 10M / 4.16 RPM
Axis Feed rate / Cutting feed: 5 m / min
Axis Transmission / Y & Z linear axis: Ø 50mm C3 ball screw
Axis Transmission / C rotary axis: dual lead worm gear
ATC / Tool holder type: BT#50
ATC / Pull stud: BT#50
ATC / Tools number: 24 pieces
ATC / Max.tool dia. / length / weight: Ø 120 mm / 300mm / 15kg
ATC / Tools exchanging method: swing arm at vertical position
Weight: 16 ton Net ( before packing )
