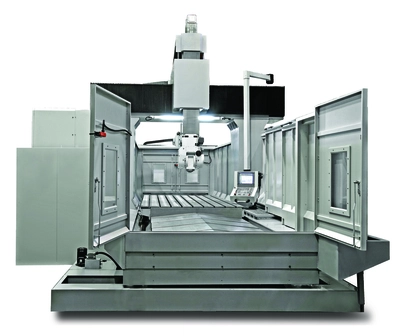

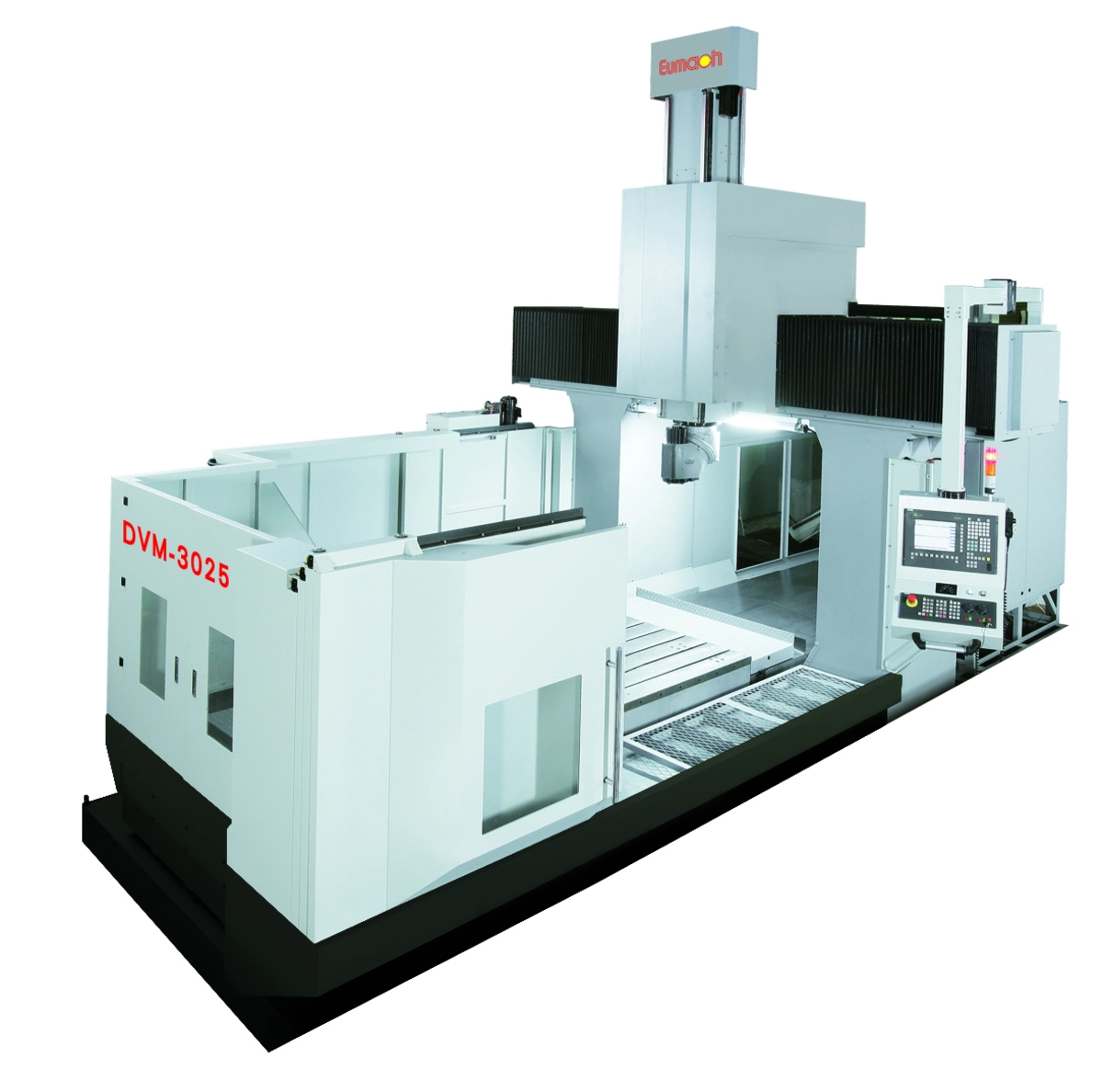

DMV-4035

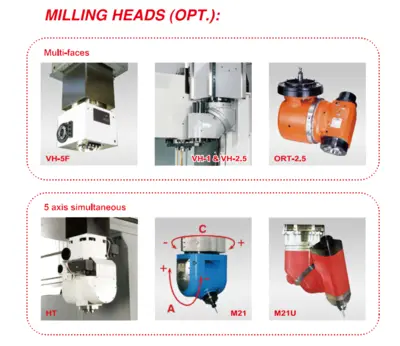

Double Column Machining Center 3-5 Axis Simultaneous

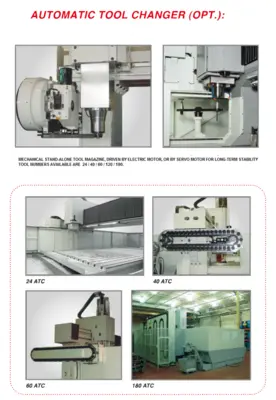

Standard Features & Accessories:
1. Glazed window type slash guard
2. Programmable coolant system
3. Automatic lubrication system
4. Spindle air blast system
5. M.P.G.
6. Work lamp
7. Alarm lamp
8.RS-232 terminal interface port

MODEL: DMV-4035 UNIT
TRAVEL:
X AXIS: 4200 MM
Y AXIS: 3600 MM
Z AXIS: 700 (900, 1100, 1300) MM
DISTANCES:
BETWEEN TWP COLUMNS: 3530 MM
SPINDLE TO TABLE TOP: STD. LONG NOSE 130-830 (130-1030, 130-1230, 130-1430) OPT. SHORT NOSE 240-940 (240-1140, 240-1340, 240-1540) MM
TABLE TOP TO FLOOR: 915 MM
TABLE:
OVERALL SIZE: 4000 X 3100 MM
T-SLOTS: 22 MM
MAXIMUM LOAD: 24000 KGS
X AXIS SLIDEWAY: 2 ROLLER BEARING + 2 LIEAR BEARING
SPINDLE RAM:
TRANSMISSION: DIRECT COUPLING TYPE
TAPER: BT-50 (DIN,69817) (CAT-50)
SPEED: 40-6000 RPM
RAM SECTION / MM: 380 X 380 (420 X 420)
RAM SECTION / TYPE: BOX WAY 8 SURFACE CONTACTED (4 ROLLER GUIDEWAYS)
FEEDRATE: X Y Z
CUTTING FEEDRATE: 1-8000 MM/MIN
RAPID FEEDRATE: 10(12) / 10(12) / 10(12) MM/MIN
MINIMUM SETTING: 0.001 MM
COOOLANT & LUBRICATION:
COOLANT TANK VOLUME: 26 LITER
HYDRAULIC TANK VOLUME: 120 LITER
LUBRICATION TANK VOLUME: 6 LITER
ACCURACY:
POSITIONING: 0.025 MM
REPEATABILITY: 0.02 MM
ROUNDNESS: 0.02MM / Ø300MM MM
MISCELLANEOUS:
POWER: 60 KVA
PNEUMATIC: 5 KG/CM2
WEIGHT: 44000 KGS
