HORIZONTAL MILLING MACHINES
STANDARD FEATURES & ACCESSORIES :
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
3. SPINDLE AIR BLAST SYSTEM
WORKING LAMP
ALARM LAMP
INDICATION LAMP FOR DWELL & END OF JOB
BT#50 SPINDLE
RS-232 TERMINAL INTERFACE PORT

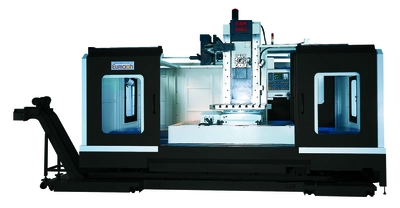

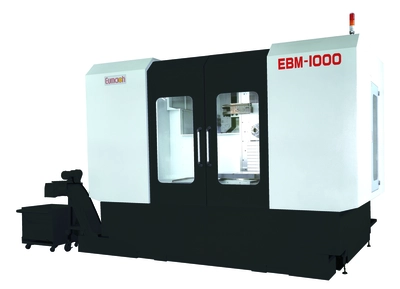

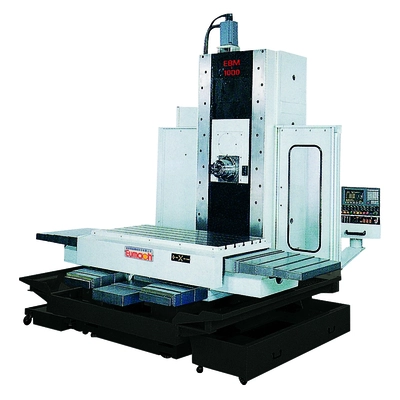

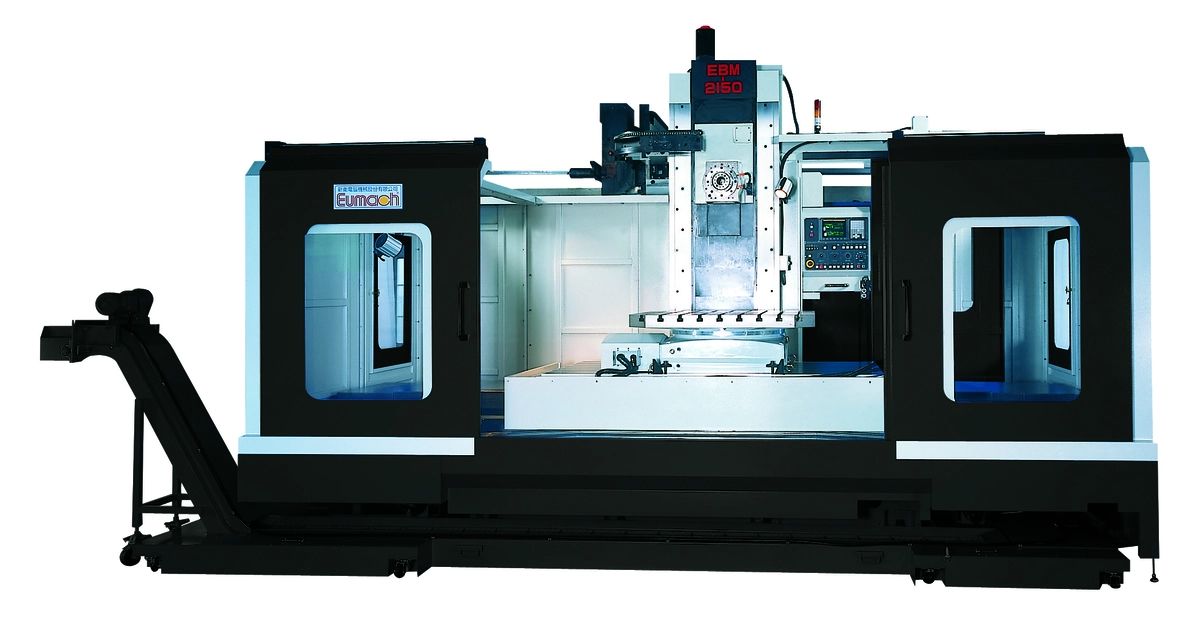

MODEL: EBM-1000 UNIT
[TABLE:]
OVERALL SIZE: 1500×710 MM
WORKING AREA: 1500×710 MM
T SLOTS (SIZE×NO×PITCH): 18×6×125 MM
MAXIMUM LOADING: 1500 KG
[TRAVEL:]
X / Y / Z AXIS: 1400/1200(1400)/1000 MM
[DISTANCES:]
SPINDLE NOSE TO TABLE EDGE: 246.5-1246.5 MM
SPINDLE CENTER TO TABLE TOP: 250-1450(245-1645) MM
SPINDLE NOSE TO COLUMN SURFACE: 250 MM
FLOOR TO TABLE: 980 MM
[SPINDLE:]
TAPER: BT#50 ISO
SPEED: 4000(6000) RPM
MOTOR: 15 KW
[AXIS MOTORS:]
X & Z AXIS: 22 / 22 NM
Y AXIS: 22 WITH BRAKE NM
CUTTING FEEDRATE: 1-5000 MM/MIN
RAPID FEEDRATE: 10(15) M/MIN
MINIMUM SETTING: 0.001 MM
[AUTOMATIC TOOL CHANGER :]
TYPE OF ATC: SWING ARM
NO.OF ATC: 32 (40,60) TOOLS
MAX.TOOL (DIA/LENGTH): 250 / 300 MM
MAX.TOOL WEIGHT: 15 KG
TOOL TO TOOL: 3.5 SEC.
[BALLSCREWS ON X / Y / Z :]
DIAMETER: 50 / 50 / 50 MM
PRECISION CLASS(C3): 0.008 MM/300MM
[COOLANT & LUBRICATION :]
COOLANT MOTOR POWER: 0.86 KW
COOLANT TANK VOLUMN: 200 L
COOLANT MOTOR CAPACITY: 20 L / MIN
LUBRICCATION MOTOR POWER: 25 WATT
LUBRICATION TANK VOLUME: 4 L
[ACCURACY :]
POSITIONING: JIS 6388 : ±0.005MM / 300MM VDI3441 : P0.014MM MM
REPEATABILITY: JIS 6388 : ±0.003MM VDI3441 : PS0.01MM MM
ROUNDNESS: JIS 6388 : ±0.01MM/300MM DIAMETER MM
[MISCELLANEOUS :]
MACHINE NET WEIGHT: 15000 KG
POWER REQUIRED: 30 KVA
PNEUMATIC REQUIRED: 7 KG / CM2
