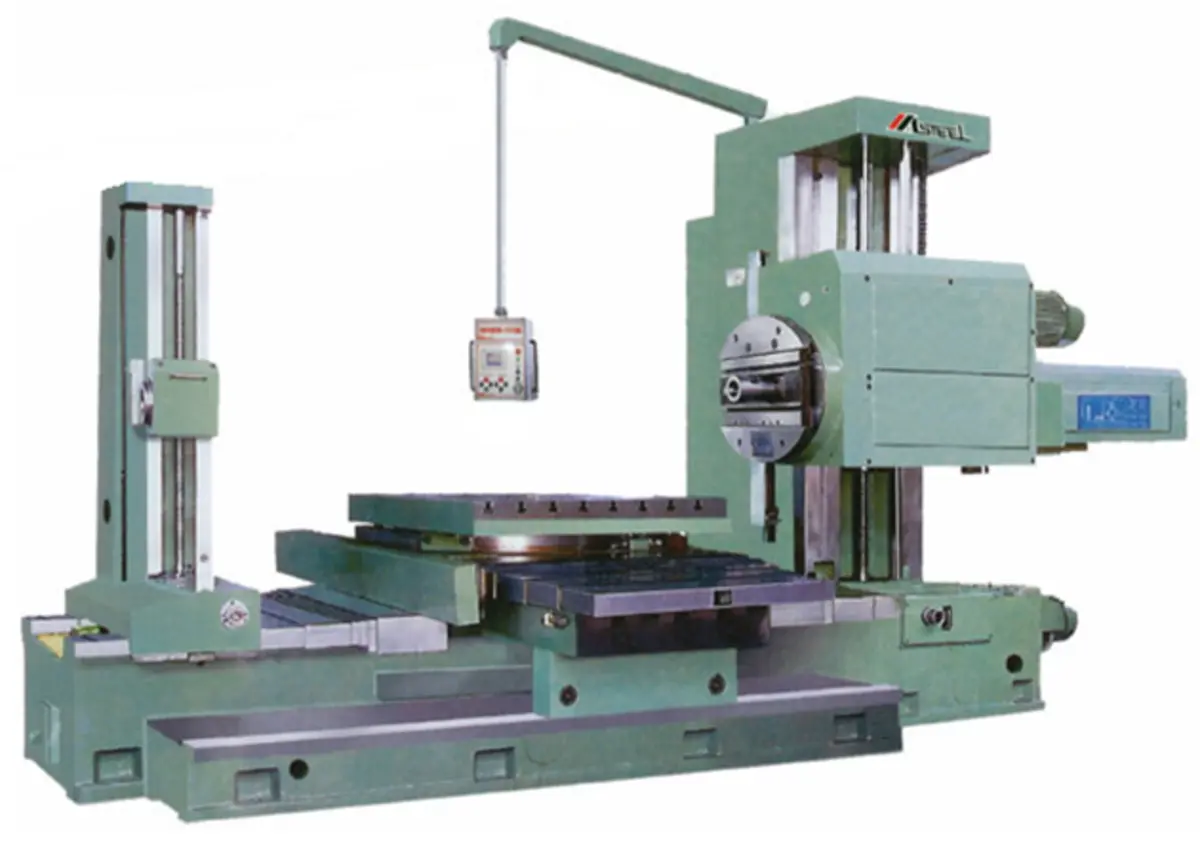

POWER TAILSTOCK
B AXIS POSITION CONTROL
U AXIS C/W SPOT FACING AND GROOVING CYCLES
Fagor Control,
Z/U axis taper boring,
X Y circular interpolation,
One motor X/B/Z,
One motor Y/W/U
Spindle Taper: CAT #50
Boring Spindle Diameter: 4.41”
Travel of Boring Spindle: 24”
Travel of Facing Spindle: 7.22”
Diameter of Facing Plate: 23”
Index Rotary Table: 49” x 43.3”
Index Rotary Table Load: 6600 lbs
Longitudinal Travel: 56”
Cross Travel: 64”
Spindle to Table: 0 – 48”
Programmable Spindle Speed: 8 – 1000 RPM
Programmable X Y Z W Axis Feed Rate: 0.040” – 80” / Min.
Facing Plate Speed: 4 – 200 RPM
Facing Plate U Axis Feed Rate: 0.012” – 60” / Min.
X Y Z W Axis Rapid Travel: 80” /Min.
Digital Readout Resolution: 0.0005”
Main Motor: 20 HP
Dimensions: L x W x H: 197” x 115” x 108”
Weight: 39600 lbs
