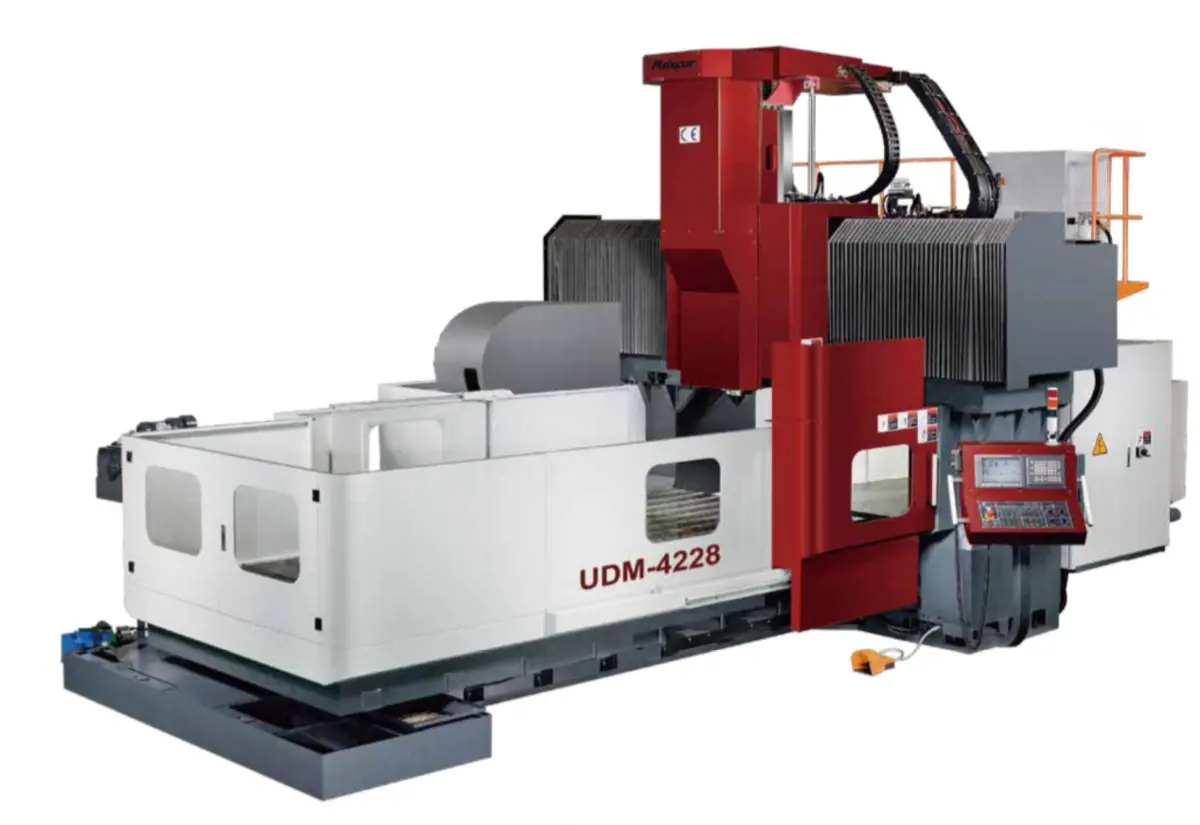

UDM-3212

STANDARD ACCESSORIES
Glass window type splash guard
Programmable coolant system
Automatic lubrication system
Spindle air blast system
Working lamp
Alarm lamp for abnormal situations
Indication lamp for dwell & end of job
Leveling bolts & pads
Chip auger & chain type chip conveyors
Toolbox with spanners & wrenches
M.P.G
Machine inspection lists
Operation manuals
Controller manuals and circuit diagram
Auto power off
RS-232C terminal interface
Spindle coolant system
Hydraulic system
Heat exchanger
FAGOR Controller

[Technical Specifications]
[MODEL | UNIT | UDM-3212]
TABLE / Table Size: 3000x1100 mm
TABLE / T-Slots: 22 mm
TABLE / Maximum Load: 4500 kg
TRAVEL / X Axis: 3200 mm
TRAVEL / Y Axis: 1200 mm
TRAVEL / Z Axis: 760 mm
SPINDLE / Spindle Servo Motor-cont./ 30min.: 11/15(22/26) kW
SPINDLE / Speed: 6000 rpm
SPINDLE / Taper: 7/24 taper NO.50, BT-50
DISTANCES / Between Two Columns: 1300 mm
DISTANCES / Spindle Nose to Table Center: 200~960 mm
FEED RATE / Rapid Feed rate X/Y/Z: 20/20/15 m/min.
FEED RATE / Minimum Setting: 0.001 mm/min.
FEED RATE / Cutting Feed rate: 8 m/min.
ATC / No. of Tools: 0(24/32/40) pieces
ATC / Tool Change Time: 8(ARM TYPE) sec.
ATC / Max. Tool-Diameter/Length: Ø125/Ø200(Without Adjacent Tool)/ Length 350 mm
ATC / Max. Tool Weight: 15 kg
COOLANT & LUBRICATION / Coolant Tank Volume: 240 L
COOLANT & LUBRICATION / Hydraulic Tank Volume: 70 L
COOLANT & LUBRICATION / Lubrication Tank Volume: 8 L
MISCELLANEOUS / Power Required: 40 kVA
MISCELLANEOUS / Pressurized Air: 5~8 kg/cm²
MISCELLANEOUS / Hydraulics Required: 70 kg/cm²
MISCELLANEOUS / Machine Weight: 21000 kg
MISCELLANEOUS / Controller: FANUC 0iMF (FANUC 31i-B / MELDAS / SIEMENS / HEIDENHAIN)
[OPTIONAL ACCESSORIES:]
OPTIONAL ACCESSORIES:
8000RPM direct drive spindle(35HP)
X,Y and Z axes with linear scales
Auto. tool length & diameter measurement(TS27R)
CNC rotary table
Oil-feed holder
Oil mist device
Air conditioner for electrical cabinet
FANUC 32i-B(31i-B)Controller
MELDAS (M70,M720,M730) Controller
HEIDENHAIN Controller
12000RPM or 15000RPM direct drive spindle-BBT 40(only for FANUC or MELDAS controller)
