STANDARD ACCESSORIES:
Linear scales on X,Y,Z axes, Spindle oil cooler
Automatic power off , Hydraulic system
Coolant system, Lubricator system
Alarm lamp, Work lamp
M.P.G., RS232 interface
Heat exchanger, Chip conveyor and cart
Leveling bolts and pads, Controller manuals and circuit diagram
Operation manuals, Machine inspection lists
Splash guards (around the table), Tool box
FAGOR controls, ATC: 40 tools
OPTIONAL ACCESSORIES:
ATC: 60 tools, Oil mist device
FANUC controls, Various auxiliary work tables
Air conditioner for electrical cabinet, Coolant through spindle
Extension sleeve250mm/300mm
1800x1600x0.001Deg. 10 ton rotary table
Manual 90Deg. angular milling head
Simultaneously controlled rotary table

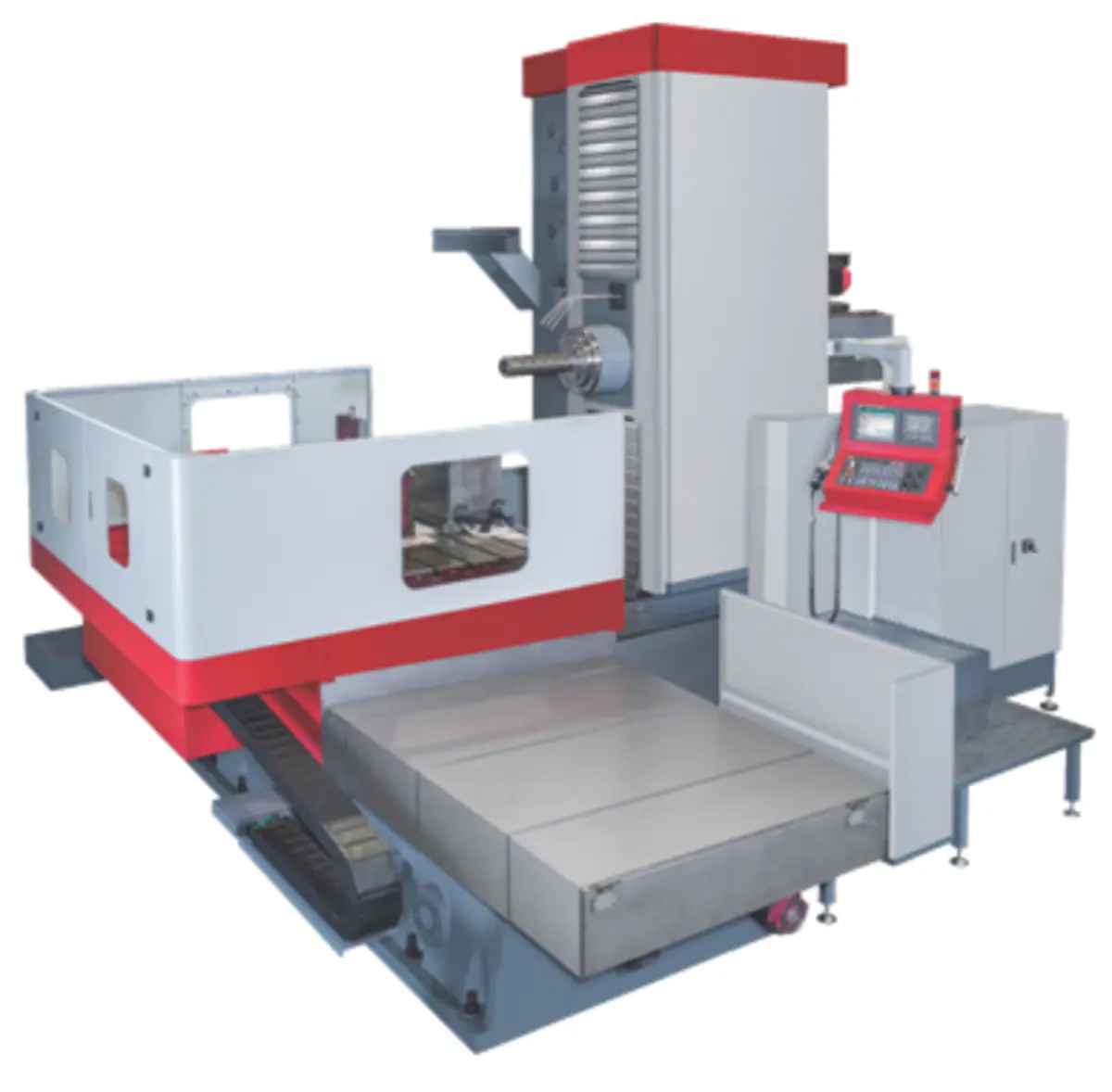

[MODEL | UNIT | UBM-11020IS]
TABLE / Table Size: 1250x1250x360D mm
TABLE / T-Slots: 22x7 mm
TABLE / Maximum Load: 5000 kg
TRAVEL / X Axis: 2000 mm
TRAVEL / Y Axis: 1500(1800) mm
TRAVEL / Z Axis: 1400 mm
TRAVEL / W Axis: 400(500) mm
SPINDLE / Diameter: Ø 110 mm
SPINDLE / Speed: 10~2500(3000) rpm
SPINDLE / Taper: 7/24 taper, ISO.50, BT-50
DISTANCES / Spindle Center to Table: 0~1500(0~1800) mm
DISTANCES / Spindle Nose to Table Center: 90~1890(-10~1890) mm
DISTANCES / Height from ground to table surface: 1350 mm
FEED RATE / Rapid Feed rate X/Y/Z: 12 m/min
FEED RATE / Rapid Feed rate W: 10 m/min
FEED RATE / Minimum Setting: 0.001 mm/min
FEED RATE / Cutting Feed Rate: 1~5000 mm/min
MOTOR / Spindle Servo Motor -cont./ 30min.: 15/18.5(22/26) kW
MOTOR / Axis X / Y / Z / W / B: 4/4/4/4/4 kW
MOTOR / Lubricator Motor: 0.15 kW
MOTOR / Hydraulic Pump: 2.25 kW
MOTOR / Coolant Pump: 1.17 kW
MOTOR / Chip Conveyor: 0.2 kW
MOTOR / Oil Cooling Pump: 0.75 kW
ATC / No. of Tools: 40(60) pieces
ATC / Tool Selection: Absolute
ATC / Tool Change Time: 15 Sec.
ATC / Max. Tool-Diameter/Length: Ø 125/ Ø 250(Without Adjacent Tool)/ Length 400 mm
ATC / Max. Tool Weight: 25 kg
COOLANT & LUBRICATION / Coolant Tank Volume: 400 L
COOLANT & LUBRICATION / Hydraulic Tank Volume: 80 L
COOLANT & LUBRICATION / Lubrication Tank Volume: 8 L
MISCELLANEOUS / Power Required: 45 kVA
MISCELLANEOUS / Pressurized Air: 6 kg/cm²
MISCELLANEOUS / Machine Weight (Approx.): 25000 kg
