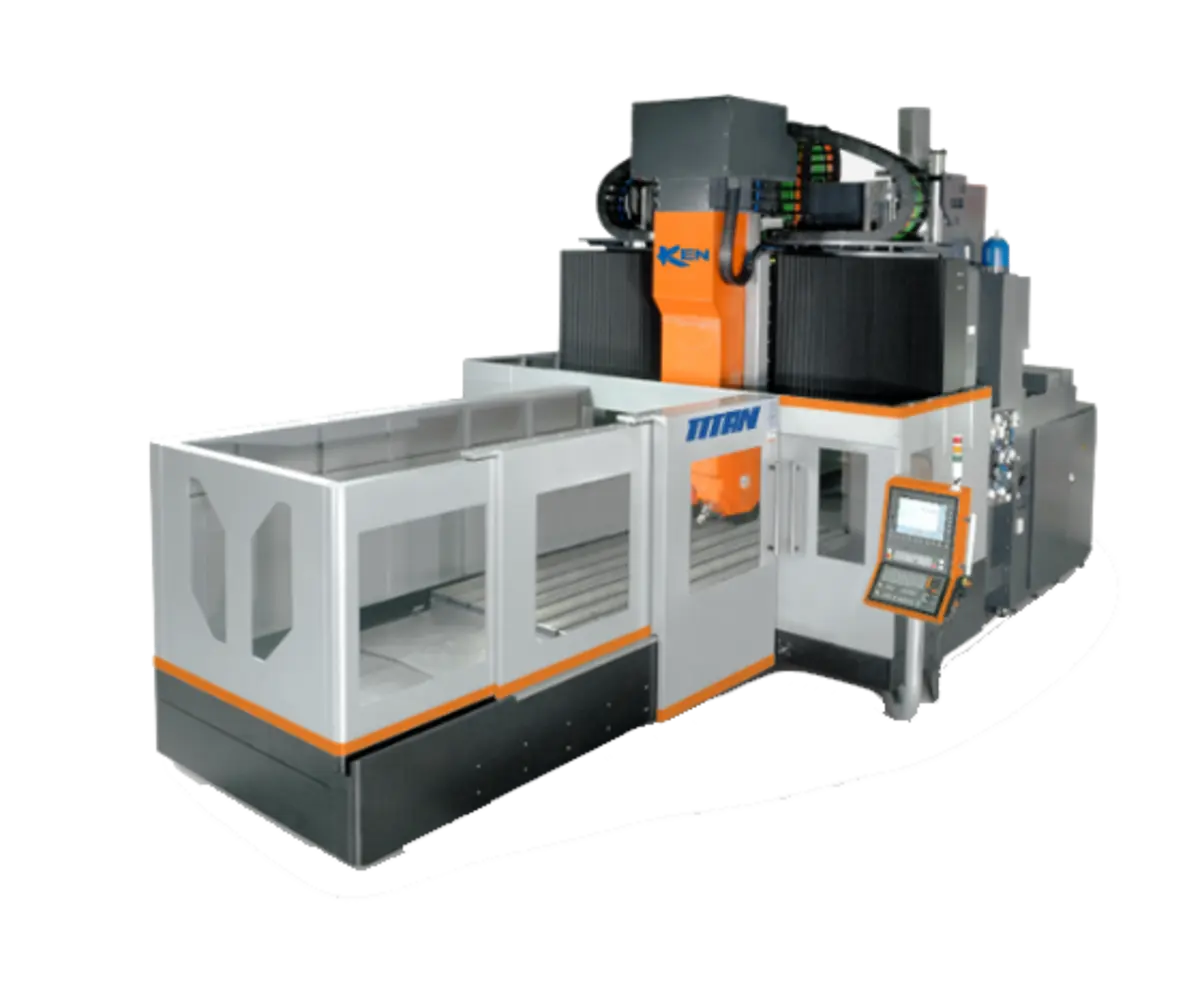

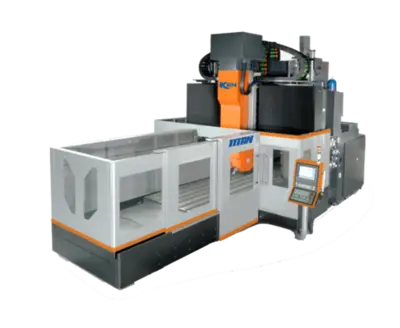

Titan - Horizontal / Vertical 5-Axis Machining Center
Description
Z-axis motion is controlled by a traversable crossbeam with vertical up and down movement. The spindle is mounted on the ram (W-axis), and the ram moves up and down depending on the size of the workpiece, and is then clamped into any position. Therefore the spindle (Z-axis) movement is in the same direction as the machine crossbeam movement and precision machining quality is ensured along the whole of the Z-axis travel whether the cutting tool is close or far from the worktable. Additionally, the vertical and horizontal double-frame structure design increases rigidity, reduces vibrations, and provides machining stability.
Specifications
Model: Titan-3050 Unit Titan-1630 Titan-2240
[Travel]
X-Axis: 5000 mm 3000 4000
Y-Axis: 3700 mm 2350 2900
Z-Axis: 1250 mm 750 1000
W-Axis: 500 mm 300 500
Distance Between Columns: 2890 mm 1540 2090
[Table]
Table Length: 5000 mm 3000 4000
Table Width: 2600 mm 1350 1850
Table T-Slots: 28 mm 28 28
[Spindle]
Spindle Taper: BT-50
Spindle Speed: 5000 rpm
Spindle Power (S6-40%): 40 kW
Spindle Torque (S6-400%): 1200 Nm
Milling Head (High Torque Mechanical Transmission): B / C Axis
B/C Axis Max. Rotation Torque: 4500/3500 Nm
B/C Axis Max. Clamping Force: 4500 Nm
B/C Rotating Angle: +10 to -105º / ±185º degree
B/C Minimum Scale: 0.001º / 0.001º +/-
[Feed Rate]
X/Y/Z Axis Rapid Feed Rate: 24/24/24 m/min
Automatic Tool Changer: BT-50
Tool Magazine Capacity: 30 pc
Max. Tool Length: 250 mm
Max. Diameter: Ø100 mm
Max. Cutting Tool Weight (per piece): 12 kg
