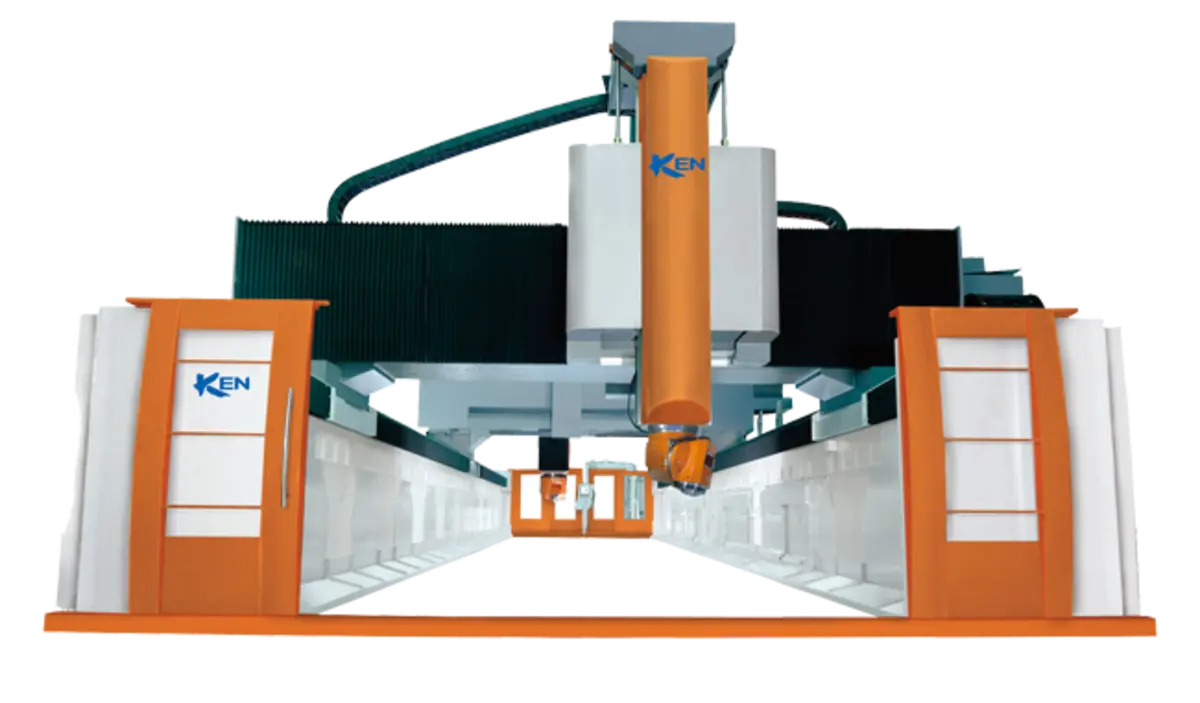

Linmax Twin - Double Gantry Type Machining Center

Gantry type design, all axial component movement (X / Y / Z / B/ C axis) is on top of the column. The work piece is fixed on the table so that the weight of the work piece does not affect the machine performance.

Specifications /Mold Unit Linmax Twin
[Travel]
X-axis mm 12000 or more
Y-axis mm 4000 5000
Z-axis: 1500 mm
[Table]
Table length mm 12000 or more
Table width mm 4000 5000
T-slot size mm 28
Table load Kg/m2 7000
Distance between spindle nose to table surface mm 250-1750
Distance between column mm 5230 5230
[Feedrate]
Crossbeam Type High speed High torque
Drive system Type X-axis: Linear motor Y-axis: Linear motor Z-axis: Linear motor X-axis: Linear motor Y-axis: rack and pinion Z-axis: ball screw
X/Y/Z-axis rapid feedrate m/min 40 30
X/Y/Z-axis acceleration m/sec² 4 2
[Automatic Tool Changer]
Milling Head type TCH-20F TCH-20A TCH-30F MTK
Tool shank type HSK A63 HSK A100 BT-50
Tool magazine capacity pcs 30 20 40
Max. tool weight Kgs 7 15 15
Max. tool length mm 300 350
Max. tool dimensions mm 80 120
