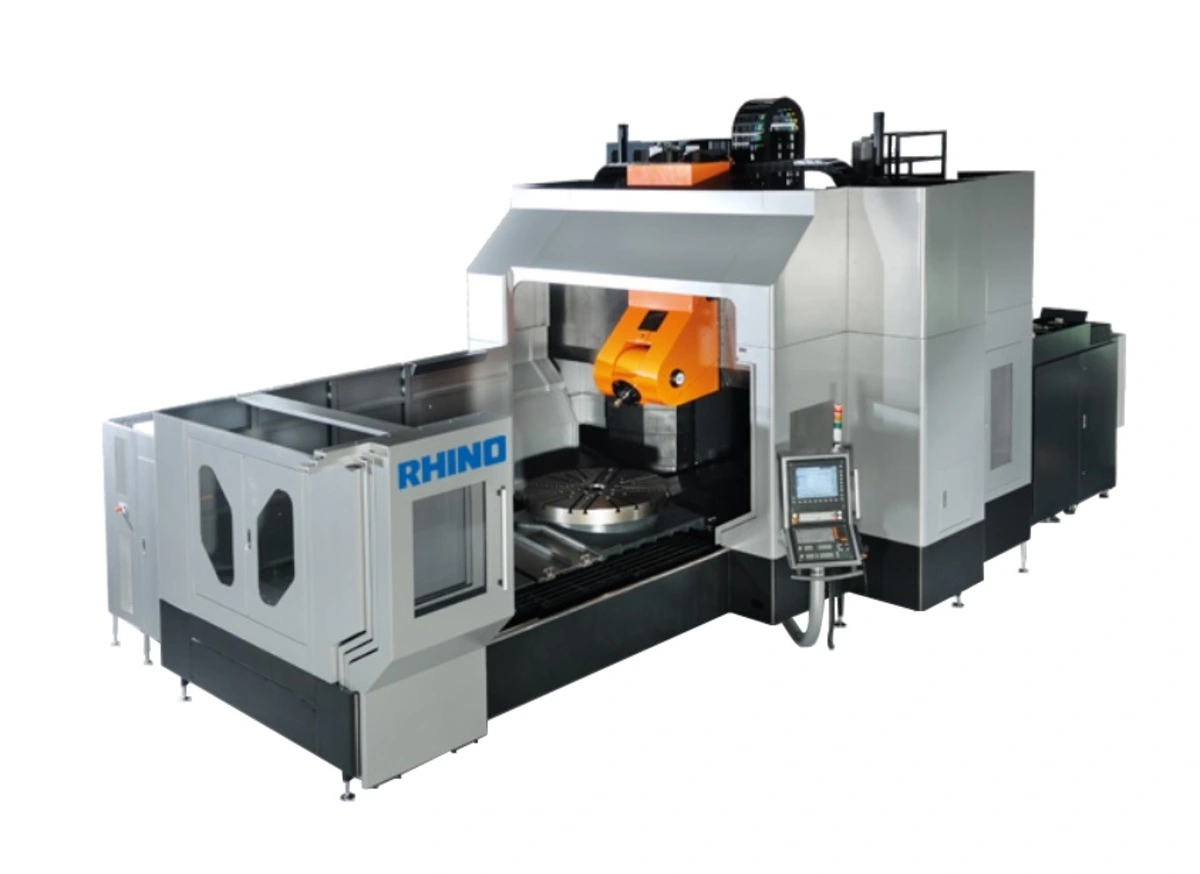

Rhino Series Horizontal 5-Axis Machining Center

Z-axis motion is controlled by a traversable crossbeam with vertical up and down movement. The spindle (Z-axis) movement is in the same direction as the machine crossbeam movement and precision machining quality is ensured along the whole of the Z-axis travel whether the cutting tool is close or far from the worktable. Additionally, the vertical and horizontal double-frame structure design increases rigidity, reduces vibrations, and provides machining stability

Model: Rhino-2200 Unit Rhino-1250 Rhino-1700
[Travel]
X-Axis (Spindle Head Travel Right/Left): 2200 mm
Y-Axis (Spindle Head Travel Up/Down): 2000 mm
Z-Axis (Table Forward/Backward): 1400 mm
Distance between (B-Axis= +0°) Spindle End and Table Center (X-Axis at Home): 1600 mm
Distance between B-Axis Rotation Center and Table Center (X-Axis at -End): 1607 mm
Distance between Spindle End and Table Center (B-Axis = +90°)(X-Axis at Home): 1292 mm
Distance between B-Axis Rotation Center and Table Top Face (B-Axis = +0°)(Z-Axis at Home): 1071.5 mm
Distance between Spindle End and Table Top Face (B-Axis = +90°)(Z-Axis at Home): 1386.5 mm
[Rotary Table (B-Axis)]
Rotary Table Dimensions: Ø2200 mm Ø1250 Ø1700
Max. Workpiece Diameter: Ø2400 mm Ø2000 Ø2200
T-Slot Size: 22 mm
Rotary Table Minimum Scale: 0.001 deg
Rotating Angle (Continuous): 360° deg
Rotating Speed: 20 rpm
Rotating Speed for Vertical Lathe: 300 rpm
Max. Table Load for Vertical Lathe: 1500 kg
Rated Power: 45 Kw
Motor Torque S1-100% (S6-40%): 4000(5200) Nm
Brake Torque (Hydraulic): 10000 Nm
[Feed Rate]
X/Y/Z Axis Rapid Feed Rate: 50/50/50 m/min
Automatic Tool Changer: BT-50
Tool Magazine Capacity: 40 pc
Max. Tool Length: 250 mm
Max. Tool Dimensions: Ø100 mm
Max. Tool Weight per Piece: 12 kg
