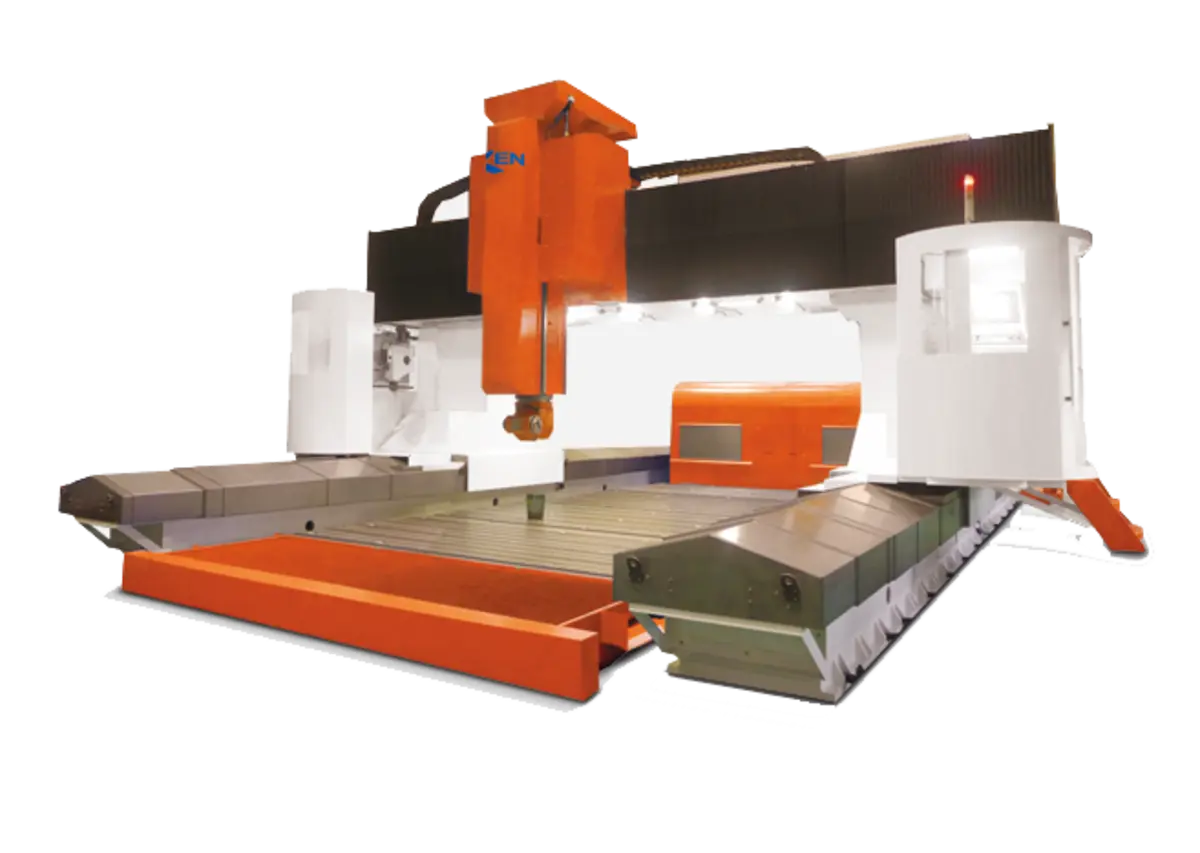

Loader - Moving Column 5-Axis Machining Center

All the axes of this machine (X/Y/Z/B/C axis) can travel along the moving column. Also the fixed worktable design ensures this machine is suitable for heavy-duty cutting, high precision and large component machining, and also provides a spacious working area.

Specifications Unit Loader-33 Loader-43 Loader-53
[Travel]
X-axis mm 8000 or more
Y-axis mm 4300 5300 6300
Z-axis mm 1200 1600 1600
Distance between column mm 3300 4300 5300
[Table]
Table length mm 8000 or more
Table width mm 2800 3300 4300
T-slot size mm 28
[Feedrate]
X/Y/Z-axis rapid feedrate m/min 30/30/20
Automatic Tool Changer BT-50
Tool magazine capacity pc 40
Max. tool length mm 250
Max. tool dimensions mm Ø100
Max. tool weight per piece Kg 12
