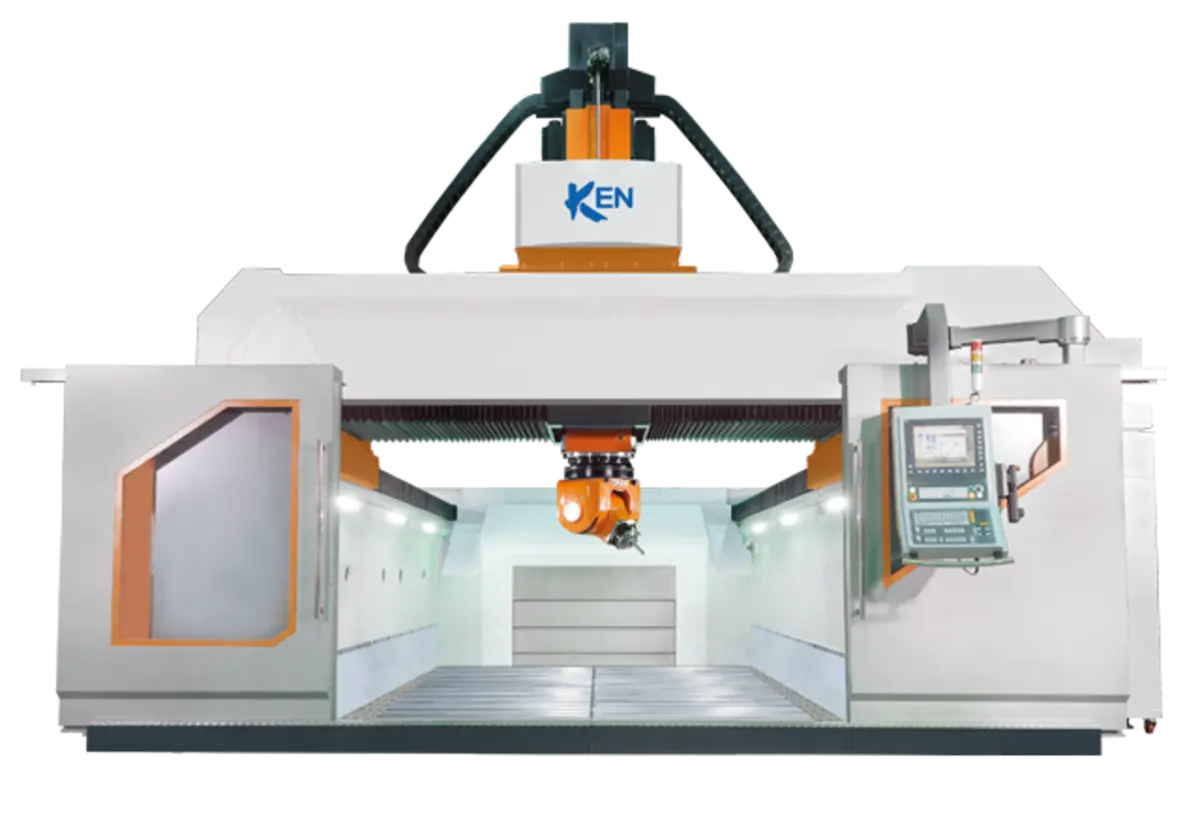

Ken Linmax Gantry Type 5-Axis Machining Center
Description
The Ken Linmax gantry type 5-axis machining centre incorporates a highly specialized design for high speed / high precision 5-axis machining of molds and aircraft components.
The design encompasses the following features:
- a torque motor driven 2-axis milling head
- back lash free linear motor drives on the X and Y axes with minimal wear ‘n tear
- dual ball screw drives on the Z-axis for maximum torque
- all axial movements on top of the machine with the workpiece on a stationary fixed table for maximum work piece load capacity and minimum floor space requirements
- high rigidity X-axis box-in-box column construction
- double high rigidity Y-axis crossbeam construction
- double high rigidity Z-axis spindle head construction
- a choice of 2-xis milling heads and spindles to best-fit specific machining applications
Specifications
Specifications /Mold: Linmax B-30 Unit Linmax B-22 Linmax B-25
X-axis Travel: 5000/6000(or more) mm 3200/4000(or more) 4000/5000(or more)
Y-axis Travel: 3000 mm 2200 2500
Z-axis Travel: 1250 mm 1250 1250
Table long: 5000/6000(or more) mm 3200/4000(or more) 4000/5000(or more)
Table width: 2700 mm 2000 2200
T-slot size (Width): 28 mm
Table load: 5000 Kg/㎡
Distance between spindle nose to table surface: 200-1450 mm 200-1450 200-1450
Distance between column: 4090 mm 3259 3590
[Feedrate]
X/Y/Z-axis rapid feedrate: 50 m/min 50 50
X/Y/Z-axis acceleration: 4 m/sec² 5 5
