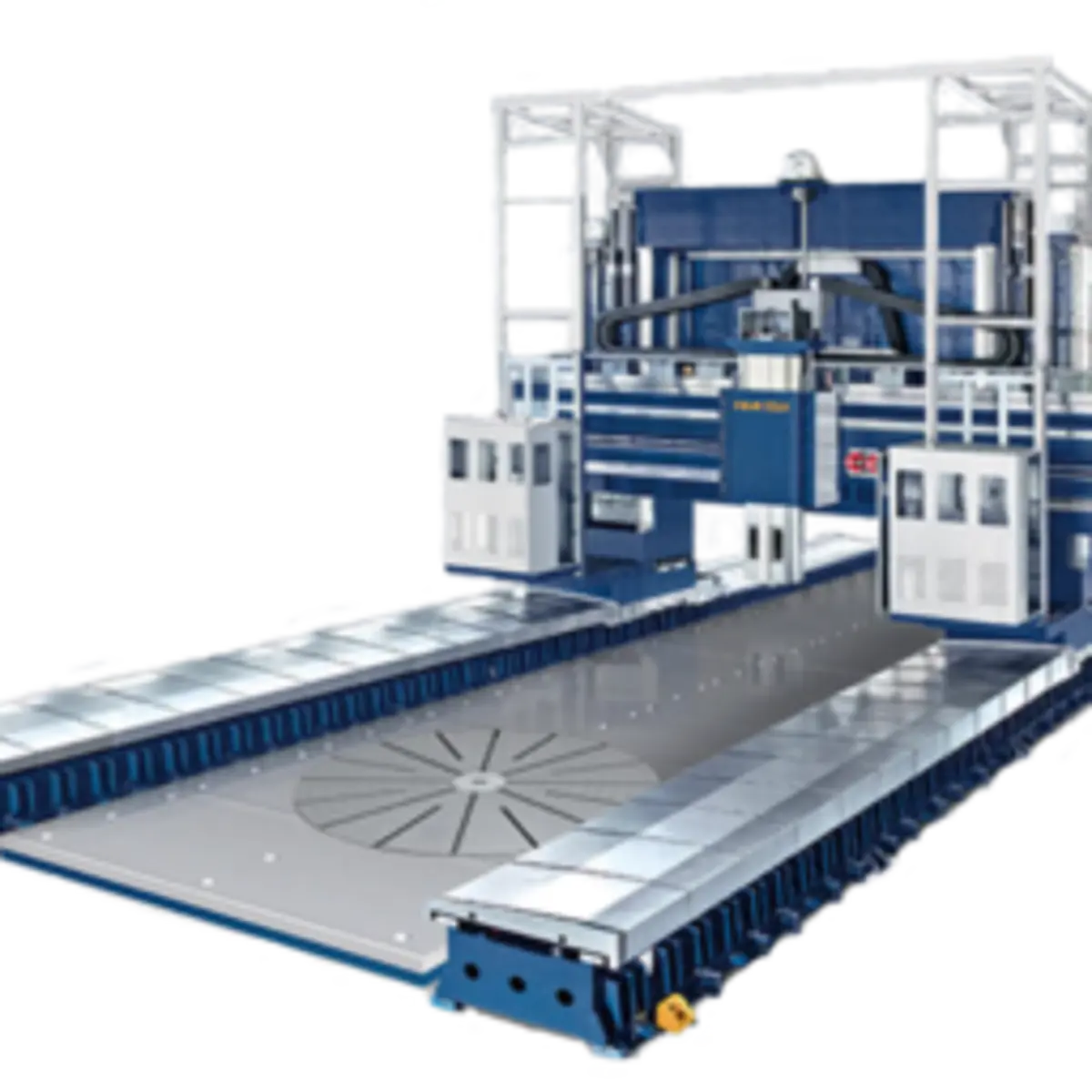

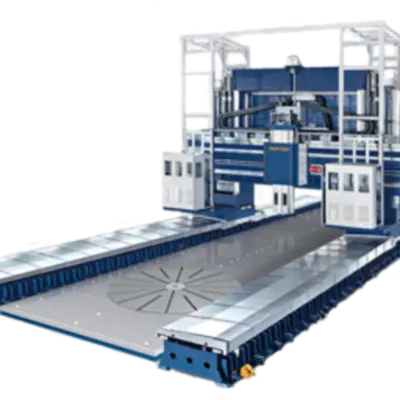

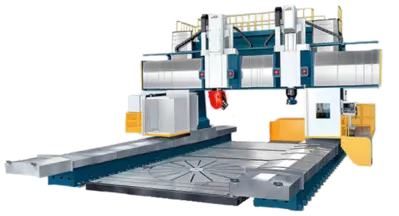

SDW-42

SLIDING DOUBLE COLUMN MACHINING CENTERS
WITH MOVING-CROSSRAIL (W-TRAVEL)

[Model | Unit | SDW-42]
[Between Columns | mm | 4250]
Travel / X-Travel: 6m ~ 36m Every 1m add m
Travel / Y-Travel: 4200 mm
Travel / Z-Travel: SDW:1100 (1400/1500) mm
Travel / W-Travel: 1500/2000 for SDW series mm
Table / Table wide: 3400 mm
Table / Table length: Table length = X Travel m
[Spindle nose to table | mm | SDW:800~800 + Z +W]
[Power-speed | kW | 22/26 – 6000 rpm]
[X axis rack-pinion | - | -]
[Y axis rack-pinion | - | NA]
[ATC Capacity | pcs | 32 pcs]
[X/Y/Z/W Feed rate G00 | m/min | 10/10/10/1]
Machine size / Length: 13.5m ~ 43.5 Every 1m add m
Machine size / Width: 8.1 m
Machine size / Height: 7.2 m
[Machine Weight (app.) | ton | 65+3.3/m]
