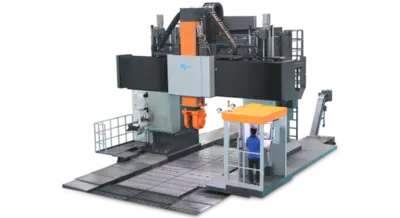

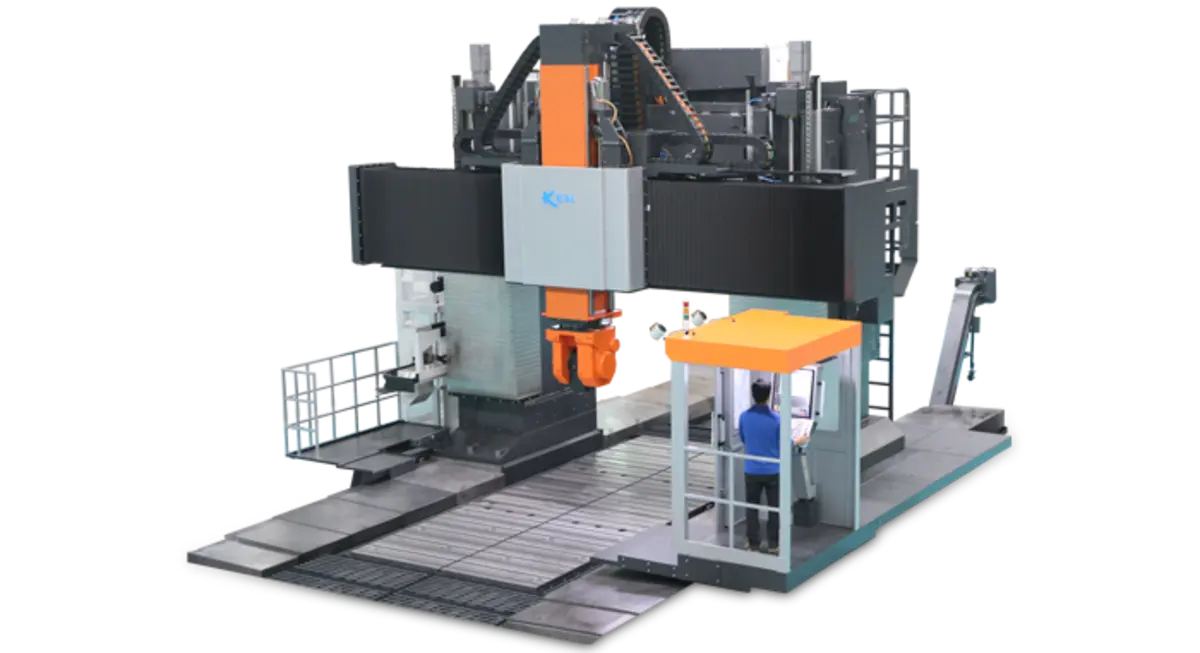

Giant Series Moving Column Machining Center

W-axis motion is controlled by a traversable crossbeam with vertical up and down movement. The spindle is mounted on the ram (Z-axis), Z-axis driven by two big ball screw drive, total have four roller linear guideways to provide high rigidity and provides machining stability.
All the axes of this machine (X/Y/Z/W/B/C axis) can travel along the moving column. Also the fixed worktable design ensures this machine is suitable for heavy-duty cutting, high precision and large component machining, and also provides a spacious working area.

Specifications Unit Giant-33 Giant -43 Giant -53
Travel
X-axis mm 8000 or more
Y-axis mm 4300 5300 6300
Z-axis mm 1200 1500 1500
W-axis mm 1500 2000 2000
Distance between column mm 3300 4300 5300
[Table]
Table length mm 8000 or more
Table width mm 2800 3300 4300
T-slot size mm 28
[Feedrate]
X/Y/Z-axis rapid feedrate m/min 30/30/20
X/Y/Z-axis cutting feedrate m/min 10
Automatic Tool Changer BT-50
Tool magazine capacity pc 40
Max. tool length mm 250
Max. tool dimensions mm Ø100
Max. tool weight per piece Kg 12
