Features
Two square arms with stainless steel rule and disappearing stops
-7 Ft squaring arm on left to square long sheet material
-4 Ft squaring arm on right to provide even knife service life on both ends
Front gauge with adjustable disappearing stops and stainless steel rule
4 Ft front support arms
Ball transfers in table for easily handling of heavy material
Ball transfers on front support arms, front gauge bar and right squaring arm
Shadow light and line for positioning scribed line
Cut-off material sliding tray for easy collection of cut material
Safety guard

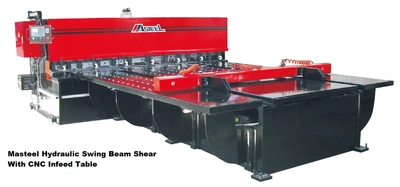

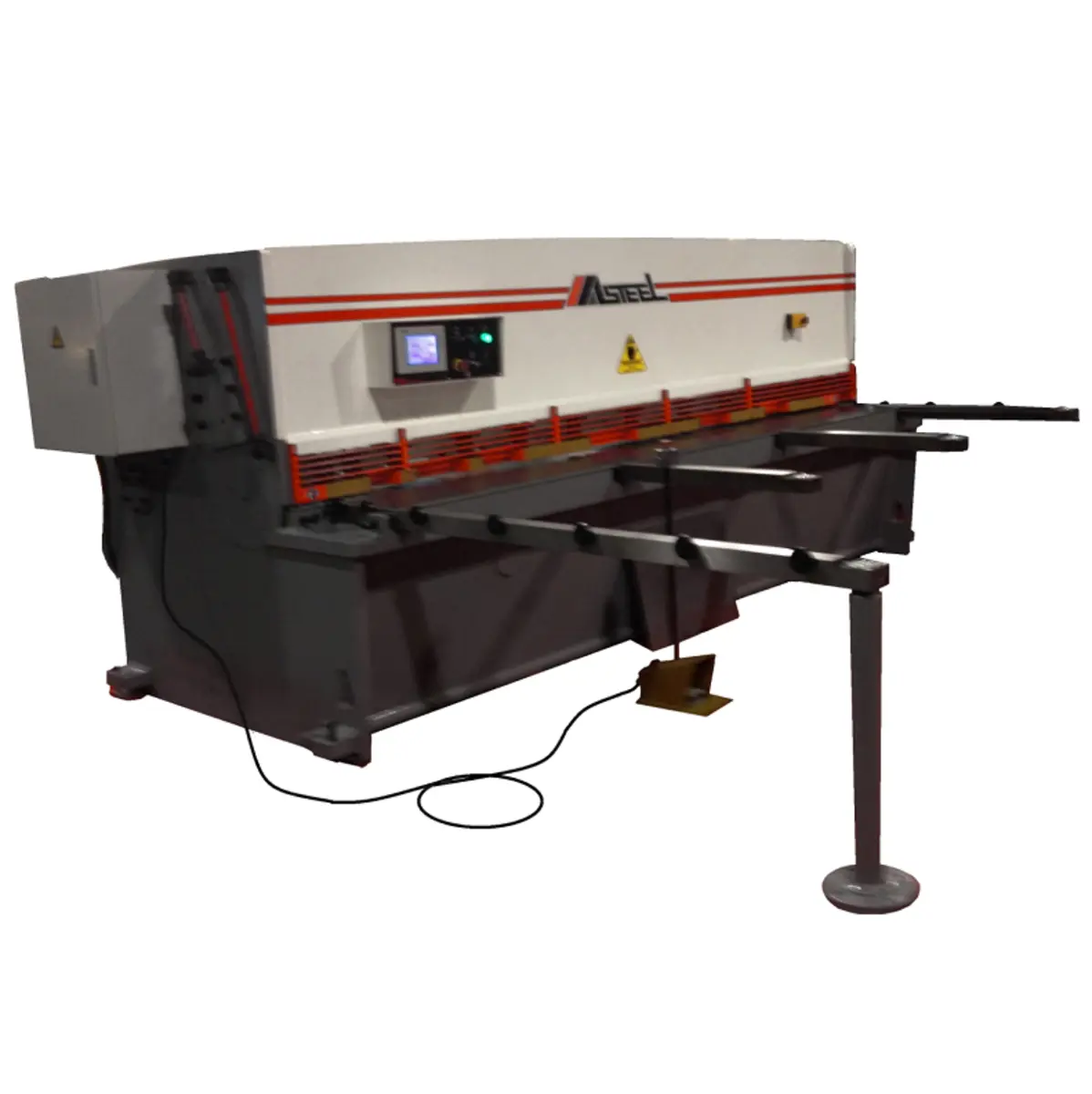

MODEL: MSH-12375
Capacity Mild Steel: 3/8"
Cutting Length: 12'
Throat Depth: 4"
Back Gauge: 36"
Front Gauge: 48"
Rake Angle: 1°30'
Motor: 25HP
Weight Lbs.: 28,500
Dimensions L x W x H: 194" X 82" X 81"
