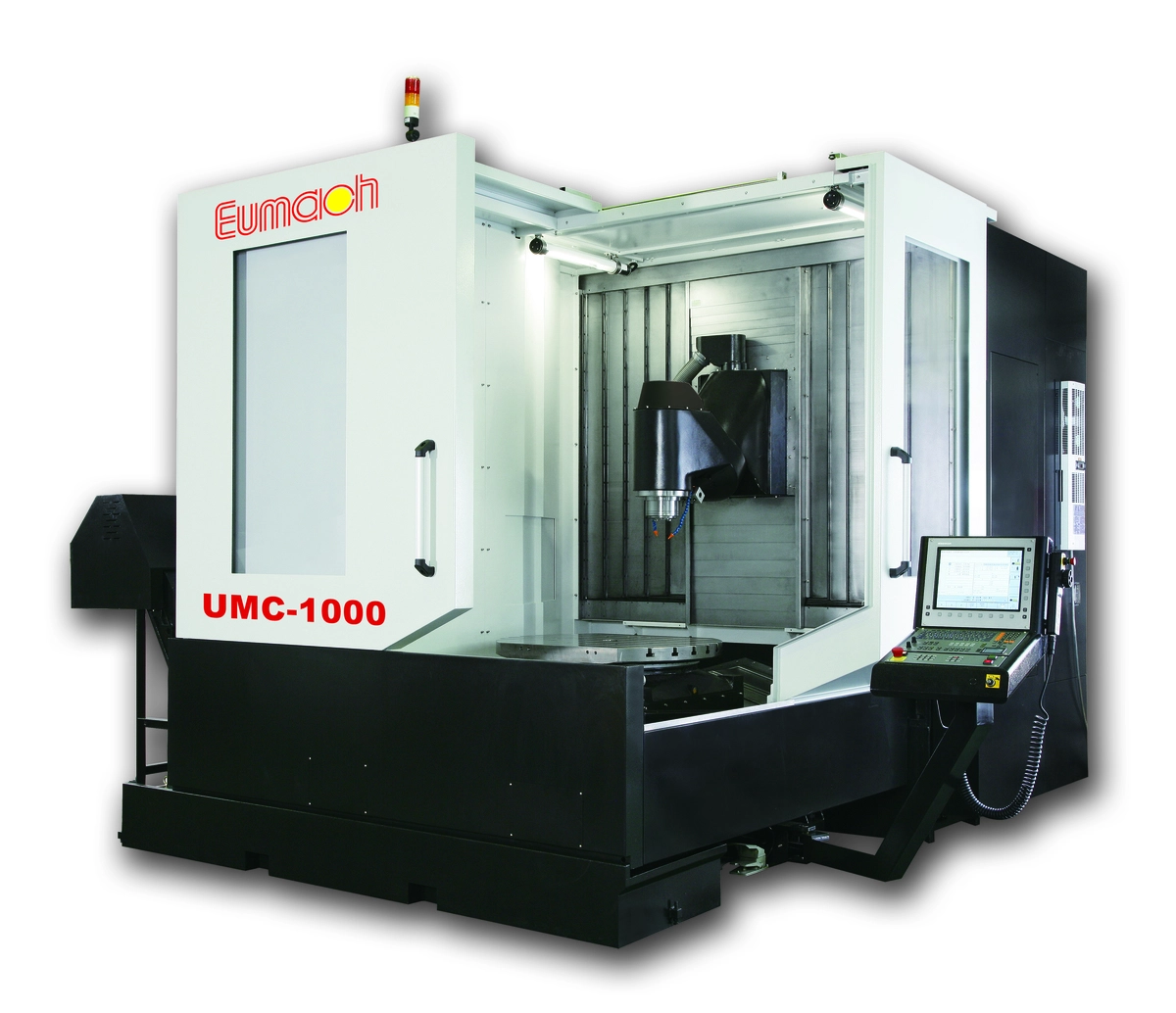

UMC-1000

STANDARD FEATURES & ACCESSORIES
FULL SPLASH GUARD WITH TOP ROOF
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
SPINDLE AIR BLAST
SYSTEM WORK ALARM, INDICATION LAMPS
SPINDLE WATER COOLER
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
TOOLBOX WITH SPANNERS & WRENCHES
CHAIN TYPE CHIP CONVEYORS + 2 SCREW CHIP AUGERS
3 AXIS LINEAR SCALES + 2 AXIS ROTARY ENCODERS

Item: UMTC-1000 Mill-turn center Model Description UMC-1000 Milling center
Travel / Linear axis X / Y / Z: 1000 / 800 / 610 1000 / 800 / 700
Travel / Swivel head B axis: 0° ~ 180°
Travel / Rotary table C axis: 0.001 degree x 360,000
Swivel head ( B axis ) / Maximum spindle speed: 12000 RPM 14000 (18000,24000) RPM
Swivel head ( B axis ) / Spindle power & torque: 29.3 & 35KW, 70 &160Nm ( S1&S6)
Swivel head ( B axis ) / Spindle taper: KM 63 BT (CAT/SK)40, (HSK-A63)
Swivel head ( B axis ) / Front bearings diameter: 70mm
Swivel head ( B axis ) / Vertical spindle nose to table: 29mm ~ 729mm 100mm ~ 800mm,
Swivel head ( B axis ) / Hor.spindle center to table top: 9mm ~ 709mm 50mm ~ 750mm
Swivel head ( B axis ) / Hor.spindle nose to table center: -262mm ~ 538mm -230mm ~ 570mm
Rotary table ( C axis ) / Table dimension: Ø800mm 800mm x 1000mm
Rotary table ( C axis ) / Maximum loading: 1000kg 1500kg
Rotary table ( C axis ) / Indexing increment: 0.001 degree
Rotary table ( C axis ) / T slots ( size x No.x pitch ): 18mm x 7 x 120mm 18mm x 7 x 100mm
Rotary table ( C axis ) / Table top to floor: 1036mm 1000mm
Feed rate / Rapid linear axis X/Y/Z: 24M / 24M / 24M
Feed rate / rotary axis B/C: 500 RPM 10 (60) RPM
Feed rate / Cutting feed: 20 m/min
Transmission / Linear axis XYZ: Ø50mm C3 ball screw
Transmission / Swivel head B axis: Torque motor
Transmission / Rotary table C axis: Torque motor Worm wheel (Torque motor)
Axis Accuracy (VDI3441) / Positioning linear axis XYZ / BC: 12 microns / 10 "
Axis Accuracy (VDI3441) / Repeatability linear axis XYZ / BC: 8 microns / 5 "
ATC / Tools number: 40 (52, 80) stations
ATC / Max.tool dia./length/weight: 120 mm / 300mm / 7kg
ATC / Tools exchanging: vertical position
Weight: 16 ton Net ( before packing ) 15 ton
