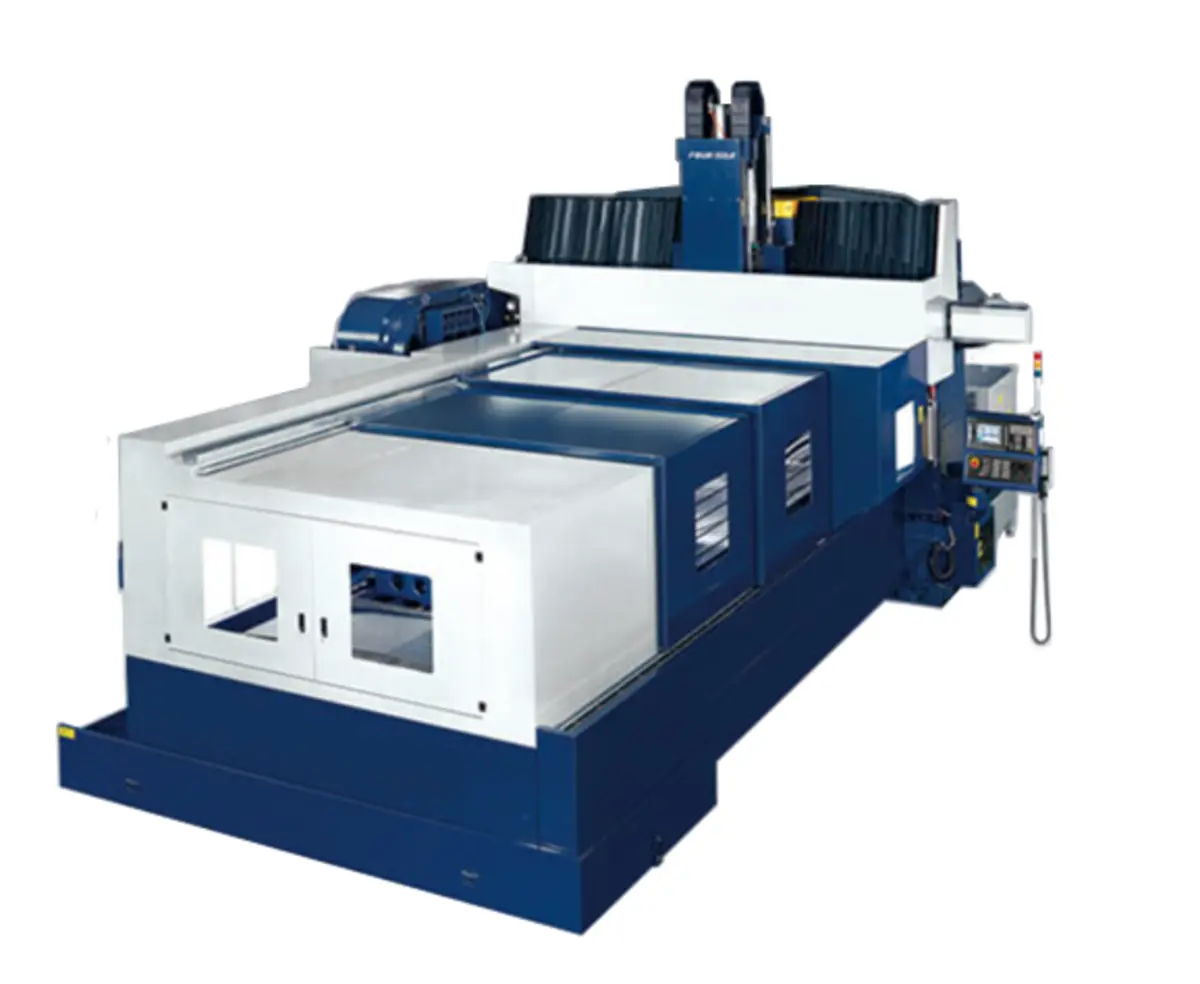

FQ-1432
Overview
Description
HIGH-SPEED FIXED DOUBLE COLUMN MACHINING CENTERS
Specifications
[Item | Unit | FQ-1432]
[Distance between columns | mm | 1400]
Table size / Length: 3000 mm
Table size / Width: 1200 mm
[Maximum Table Load | ton | 10]
T-slot: 22 x 150 x 7 Width x Pitch x NO mm
Travel / X -axis: 3200 mm
Travel / Y -axis: 1300 mm
Travel / Z -axis: 800 mm
Spindle / Nose to table: 100 ~ 900 mm
Spindle / Speed: BBT40 - 15000rpm rpm
Spindle / Power: 20 kW kW
Feedrate / Cutting: 15 m/min
Feedrate / X axis G00: 25 m/min
Feedrate / Y / Z axis G00: 25 m/min
ATC & tool magazine / Capacity / Max Dia: ATC 24pcs / Max. dia Ø 90 ( full tools ) ; Ø 180 ( Adjacent pocket empty ) mm
ATC & tool magazine / Max tool weight / Length: 7Kg / 250mm Kg/mm
ATC & tool magazine / Tool selection: Arm-cam
[Power / Pneumatic | 60 KVA / 6.5 kg/cm²]
Machine size / Length: 8680 mm
Machine size / Width: 3410 mm
Machine size / Height: 4045 mm
[Machine Weight (app.) | ton | 25]
