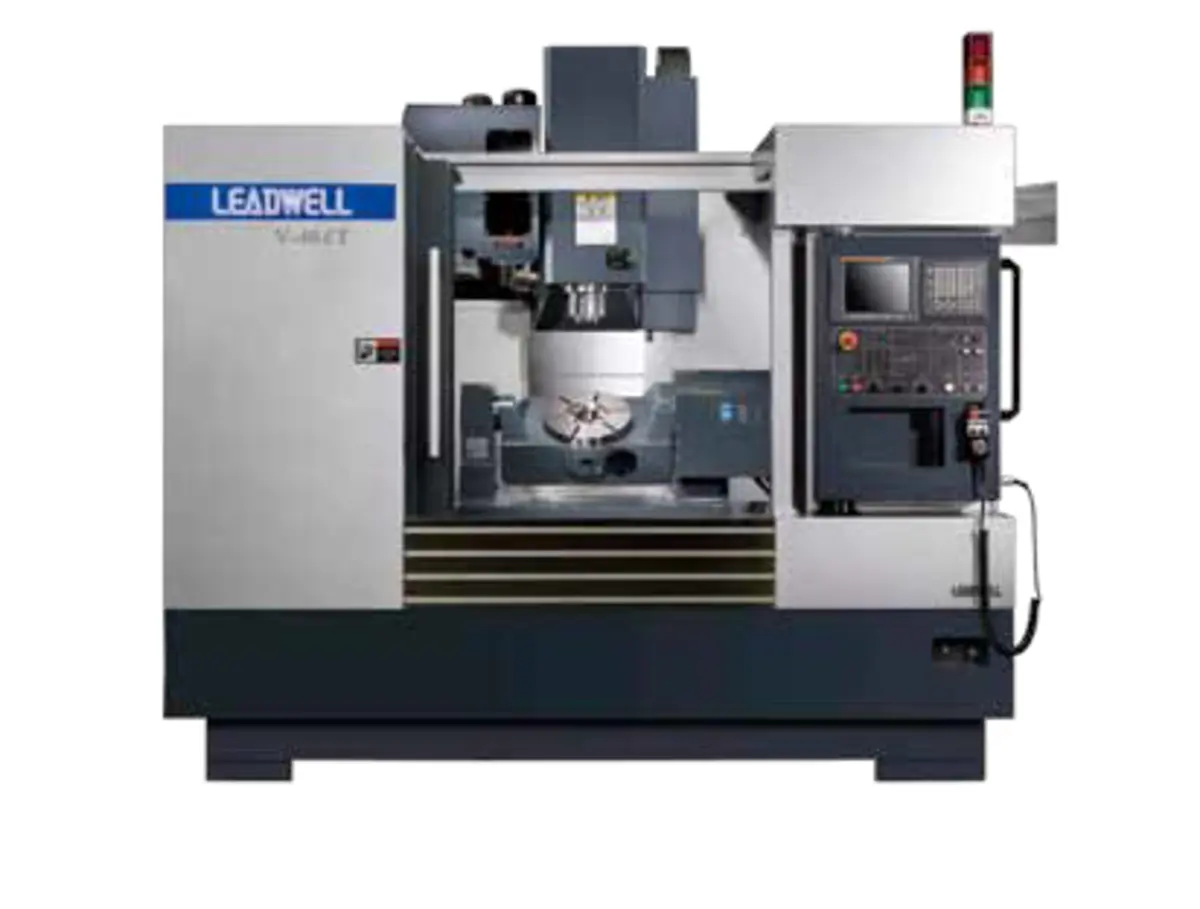

LEADWELL V40iT

FEATURES:
Fagor 8065 control
coolant ring CTS 300PSI
A/C axis brake
Wash down system
12000rpm spindle speed + oil cooler
Parkson table + 400 x 600 fixture plate
Rapid/feed rate on X/Y/Z: 1414IPM/792IPM
Rapid/Feed rate on A/C:150 degree/sec
Spindle air purge w/ valve
Linear roller guide way for high speed and high torque machining
Chip conveyor combined with built-in chip augur in base
24T ATC --high speed tool changer 1.8 sec tool to tool

A.T.C: Arm
X axis travel mm(in): 846 (33)
Y axis travel mm(in): 635 (25)
Z axis travel mm(in): 488 (19.2)
Table size (L x W) mm(in): 350 ( 13.8)
Max. table load kg: 200
Spindle speed rpm: 10000 (12000 optional)
Rapid traverse X/Y/Z m/min(ipm): 36/36/36 (1417/1417/1417)
Tool storage capacity: 24
X/Y/Z axis motor kw(hp): 18.5 (24.8)
Machine size mm: 3840 x 2200 x 2721
Machine weight kg: 7000
