Fagor 8060 control
Table capacity: 59” x 49.21”: - 13200Lbs loading capacity,
1° Index positioning
X/Y/Z/W travel: 2000 x 1500 x 1400 x 500mm;
spindle diameter: 110mm
2500 rpm spindle with ISO#50 taper

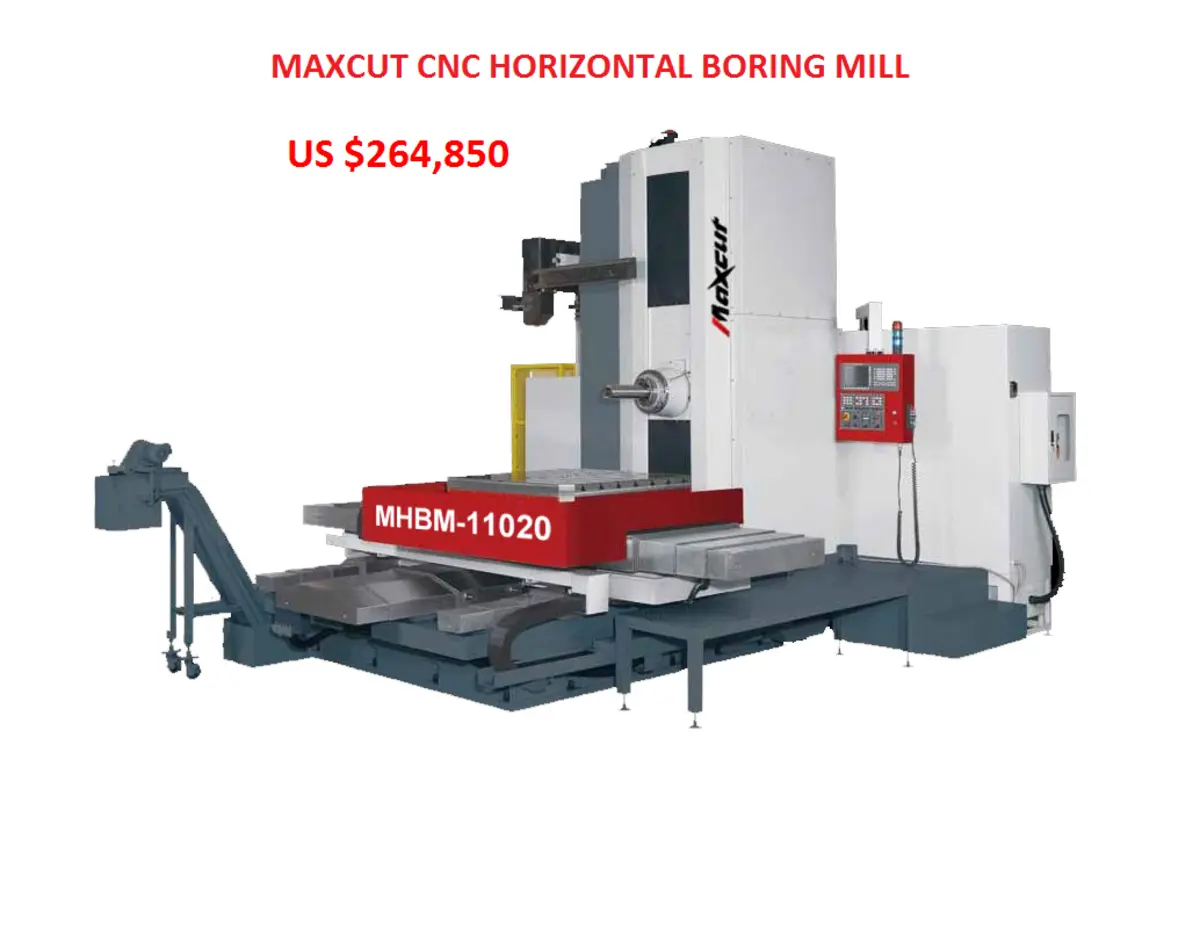

Machine Specifications: CNC MHBM- 11020RS
TRAVEL UNIT
X axis travel: 2000 mm
Y axis travel: 1500 mm
Z axis travel: 1400 mm
W axis travel: 500 mm
TABLE (STD)
Working area of table: 1250 x 1500 mm
T slot: 7 x 22 x 150 mm
Table index: 1 degree
TABLE (OPT)
Working area of table: 1250 x 1500 mm
T slot: 7 x 22 x 150 mm
Table max loading weight: 5000/11000Lbs; optional 9000kg/20,000Lbs KG
Table index: 1° Index positioning degree
SPINDLE
Taper: #50 ISO
Spindle speed: 35-2500 rpm
Spindle step: 2 steps (auto.)
Quill diameter (W axis): 110 mm
Spindle bearing I/D: 150 mm
FEED
X axis rapid feed: 12000 mm/min
Y axis rapid feed: 12000 mm/min
Z axis rapid feed: 12000 mm/min
3 axes cutting feed: 10000 mm/min
B axis cutting speed (1° indexing / Continuous): 5.5 / 2 rpm
XYZ ballscrew: 55xP12/C3 double nut mm
W axis ballscrew: 40xP5/C3 double nut mm
ATC
Pocket: 60 No.
Max. tool diameter: 125/250 mm
Max. tool length: 300 mm
Max. tool weight: 25 KG
Time of tool change (T-T): 9 sec
MOTORS
Spindle motor (30 minute/continuous): 15/18.5 KW
X axis motor Fagor: 4 / 7.2 KW
Y axis motor Fagor: 6 / 8.6 KW
Z axis motor Fagor: 4 / 7.2 KW
B axis motor Fagor: 4 / 5.7 KW
W axis motor Fagor: 3 / 1.67 KW
Hydraulic motor: 3.75 KW
Coolant pump motor: 1.7 KW
Sideway lubrication motor: 12 W
GENERAL
Machine dimension: 4715 x 7543 x 3706 mm
Machine weight: 22500 KG
