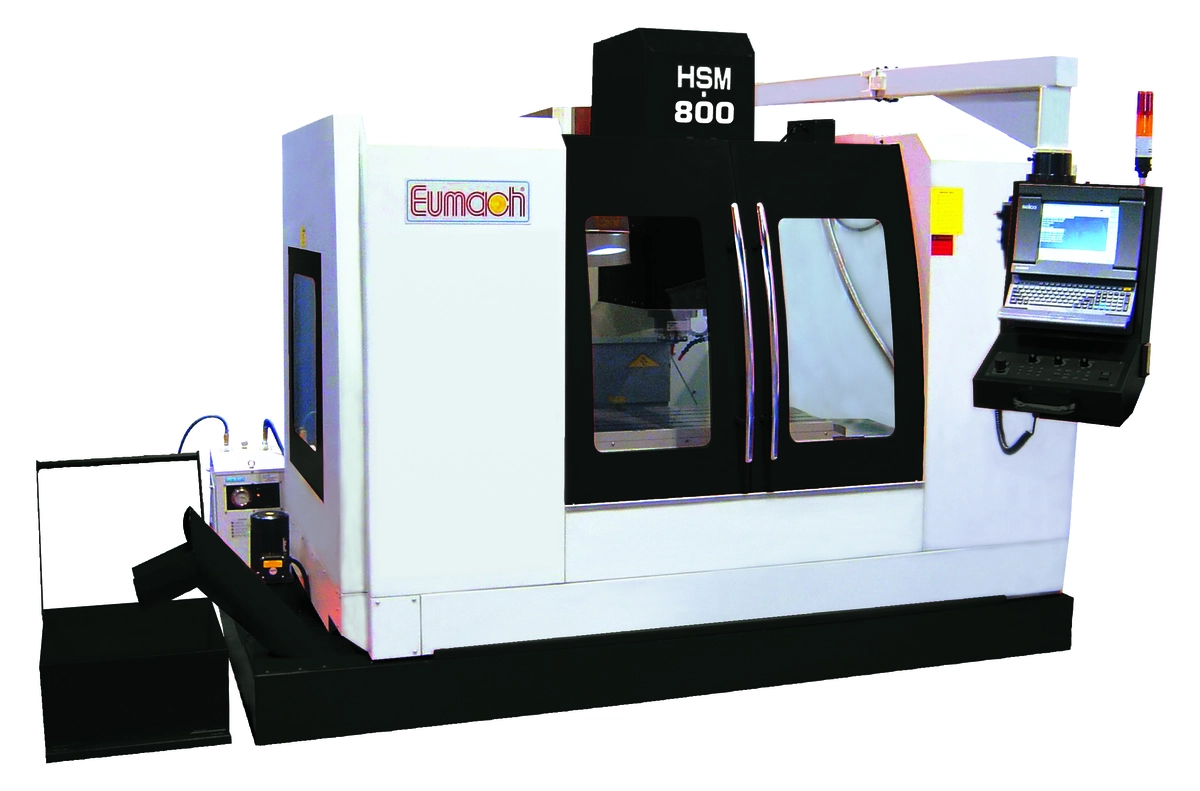

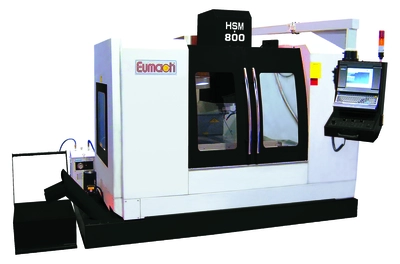

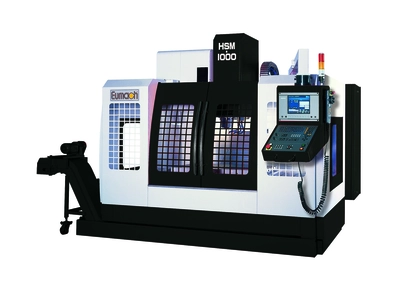

HIGH SPEED MILLING
MODEL: HSM-800
[TABLE:]
OVERALL SIZE: 870×500
T SLOTS (SIZE×NO×PITCH): 18×3×100
MAXIMUM LOAD: 500KG
TRAVEL:
X / Y / Z AXIS: 800 / 510 / 610
3 AXIS LINEAR WAY
LINEAR WAY WIDTH: 35 / 35 / 45
LINEAR WAY NUMBER: 2 on each axis
DISTANCES:
SPINDLE TO COLUMN WAYS: 550
SPINDLE TO TABLE TOP: 110~720
FLOOR TO TABLE TOP: 810
SPINDLE:
TAPER: #40
SPEED: 8000RPM
FRONT BEARING DIA.: 70
MOTOR: 7.5KW / 11KW
AXIS MOTORS :
AXIS MOTOR TORQUE: 12 / 12 / 22Nm
MOTOR POWER: 3 / 3 / 4KW
Z AXIS BALANCE DESIGN: BRAKING MOTOR
CUTTING FEED RATE: 1-8000MM / Min
RAPID FEED RATE: 30M / 30M / 24M
MINMUM SETTING: 0.001MM
ATC:
TYPE: SWING ARM
NO. OF TOOLS: 24
MAX. TOOL (DIA / LENGTH): 125 / 250
MAX. TOOL WEIGHT: 7KG
TOOL TO TOOL/CHIP TO CHIP: 3” / 8”
BALLSCREWS:
DIA / PITCH ( X&Y AXIS ): 40×12
DIA / PITCH ( Z AXIS ): 50×12
PRECISION CLASS (C3): 0.08MM / 300MM
COOLANT & LUBR:
COOLANT MOTOR POWER: 1.27KW
COOLANT TANK VOLUME: 120L
COOLANT MOTOR CAPACITY: 20L / MIN
LUBE MOTOR POWER: 25 WATT
LUBE TANK VOUME: 2
ACCURACY:
POSITIONING: JIS 6338 : 0.005MM / 300MM, VDI 3441 : P0.015
REPEATABILITY: JIS 6338 : ±0.003MM, VDI 3441 : PS0.01
ROUNDNESS: JIS 6338 : ±0.01MM / 300MM DIAMETER
MISCELLANEOUS:
NET WEIGHT: 5000KG
POWER REQUIRED: 20KVA
PNEUMATIC REQUIRED: 7KG / CM2
