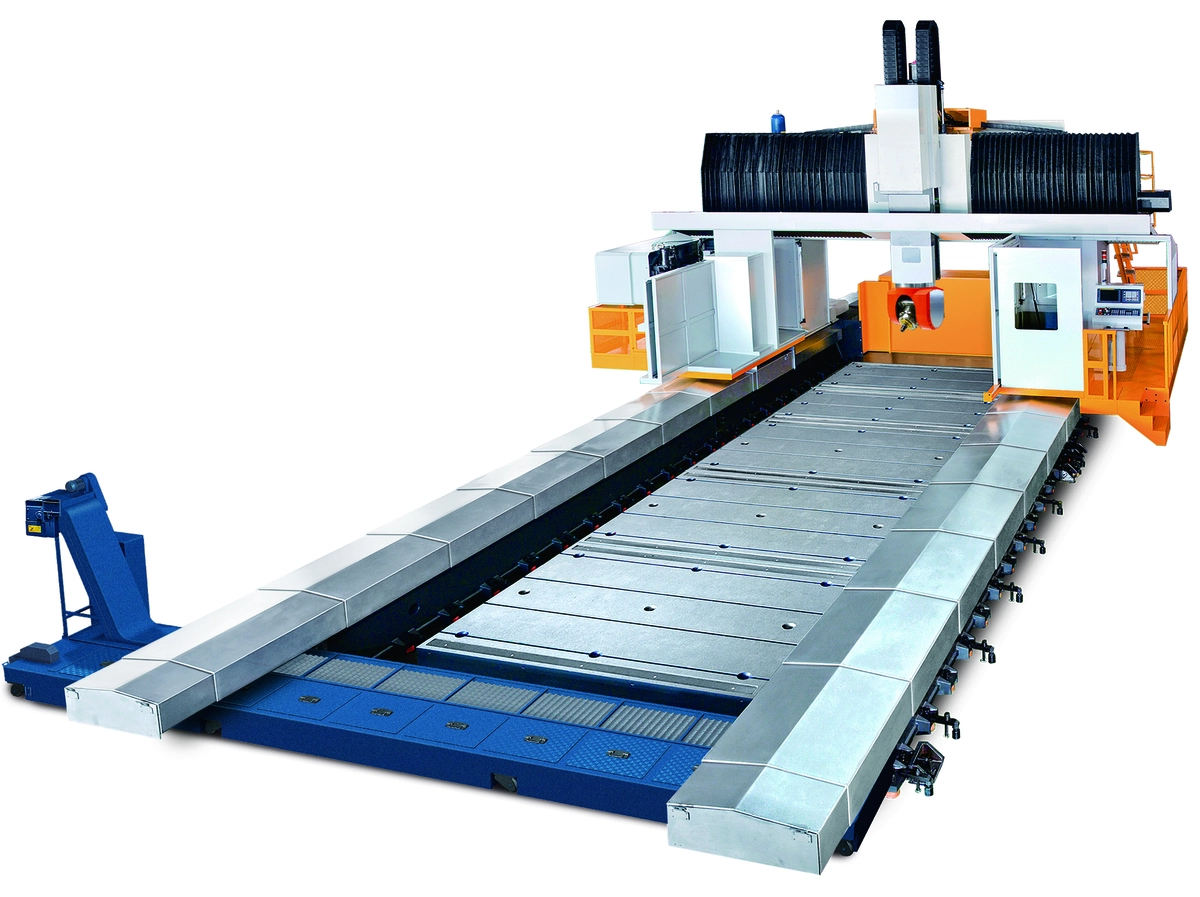

SD-28

SLIDING DOUBLE COLUMN MACHINING CENTERS

[Model | Unit | SD-28]
[Between Columns | mm | 2850]
[Travel | X-Travel | m | 6m ~ 36m Every 1m add]
Y-Travel: 2800 mm
Z-Travel: SD:1100 (1400) mm
W-Travel: 1500/2000 for SDW series mm
[Table | Table Wide | mm | 2000]
Table Length: Table length = X Travel m
[Spindle nose to table | mm | 1080~2180(1020~2420)]
[Power-speed | kW | 22/26-6000rpm]
[X axis rack-pinion | - | -]
[Y axis rack-pinion | - | NA]
[ATC Capcity | pcs | 32 pcs]
[X/Y/Z/W Feed rate G00 | m/min | 12/12/10/1]
Machine size / Length: 13.5m~43.5m Every 1m add m
Machine size / Width: 6.9 m
Machine size / Height: 6.5 m
[Machine Weight (app.) | ton | 53+2.3/m]
