FEATURES
Fagor 8065 Control
Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
Conversational to G-code conversion feature allows programming without G-code
Quick programming helical taper interpolation or helical taper threading
Inside/outside taper threading/Boring cycle
Swing arm type tool changer - 24 Tools
Wash down system with Coolant gun
Heavy-duty box way design
Through spindle coolant
Chip conveyor

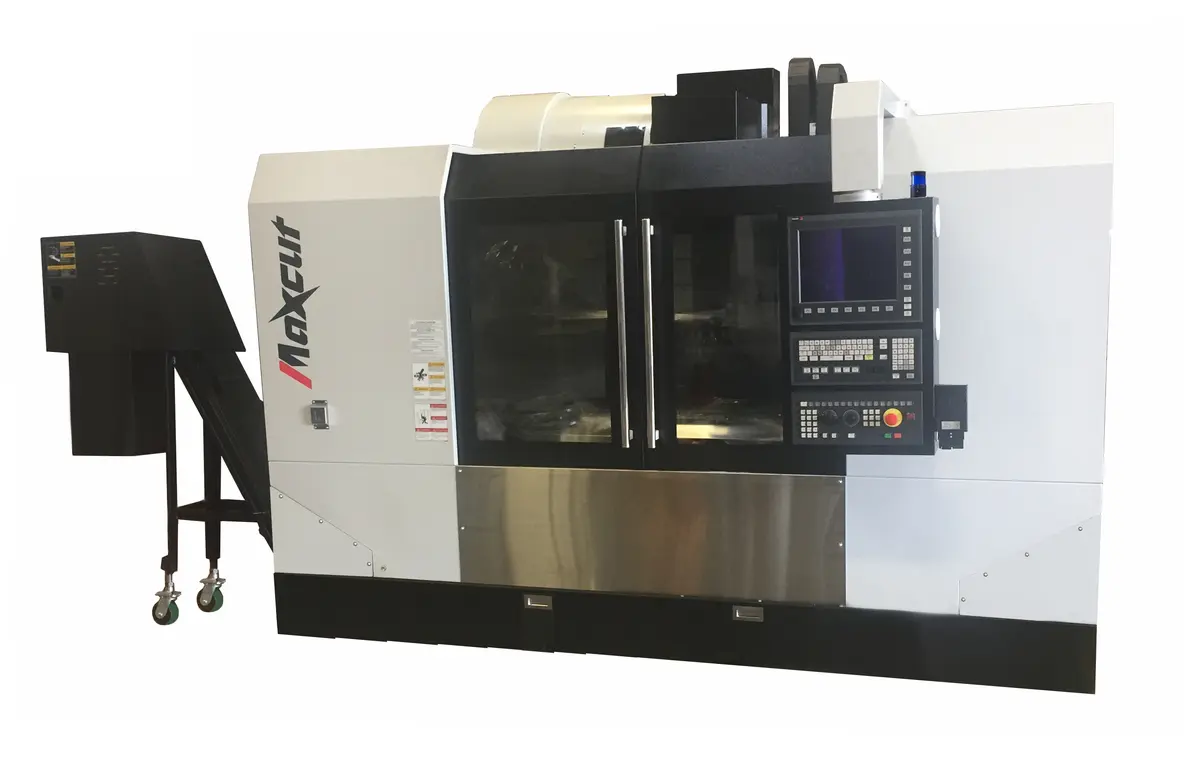

ITEM: MCV-1100
TABLE UNIT
Table size: 1300 x 600 (51.18 x 23.62) Mm (in)
Table Height: 840 (33) Mm (in)
Table loading capacity: 800 (1760) Kgs (Lbs)
TRAVEL
X travel: 1120 (44) Mm (in)
Y travel: 635 (25) Mm (in)
Z travel: 602 (23.7) Mm (in)
SPINDLE
Taper: 40 ISO
Spindle bearing inside diameter Mm (in)
Spindle speed: 10,000 RPM
Spindle center to column: 675 (26.58) Mm (in)
Spindle nose to table: 115-717 (4.5-28.25) Mm (in)
MOTOR
Spindle: 11/15 kw (15/20) Kw (Hp)
X axis: 14.84 Nm
Y axis: 14.84 Nm
Z axis: 27.34 Nm
Coolant pump: 3/4 Hp
ARM STYLE ATC
Number of tools: 24
Tool taper: 40 CAT
Tool Select by Shortest Path: Bi-directional
Max. tool weight: 8.9 (17.6) Kgs (Lbs)
Max. tool diameter: 130 (5.12) Mm (in)
Max. tool diameter(Adjacent Pocket): 70 (2.76) Mm (in)
Max. Tool Length: 300 (11.81) Mm (in)
PERFOMANCE
Rapid traverse X/Y/Z: 24 (1000) M/min (Ipm)
Feed Rate X/Y/Z: 15 (600) M/min (Ipm)
Positioning accuracy: ±0.005 (±0.0002) Mm (in)
Repeatability: ±0.002 (±0.00008) Mm (in)
DIMENTIONS
Length x Width x Height: 3.3 x 2.5 x 2.8 (132 x 100 x 112) M (in)
Weight: 6,000 (13,212) Kgs (Lbs)
Floor Space: 5.27 x 3.25 (207 x 128) M (in)
