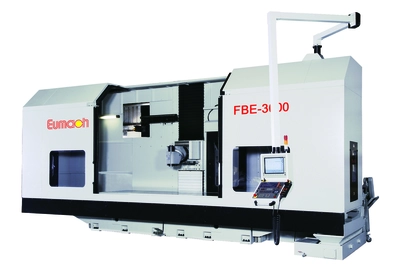

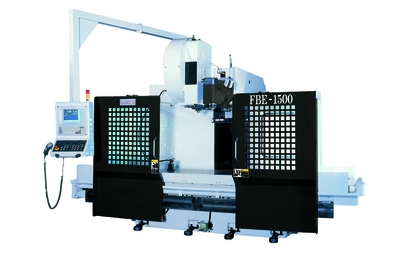

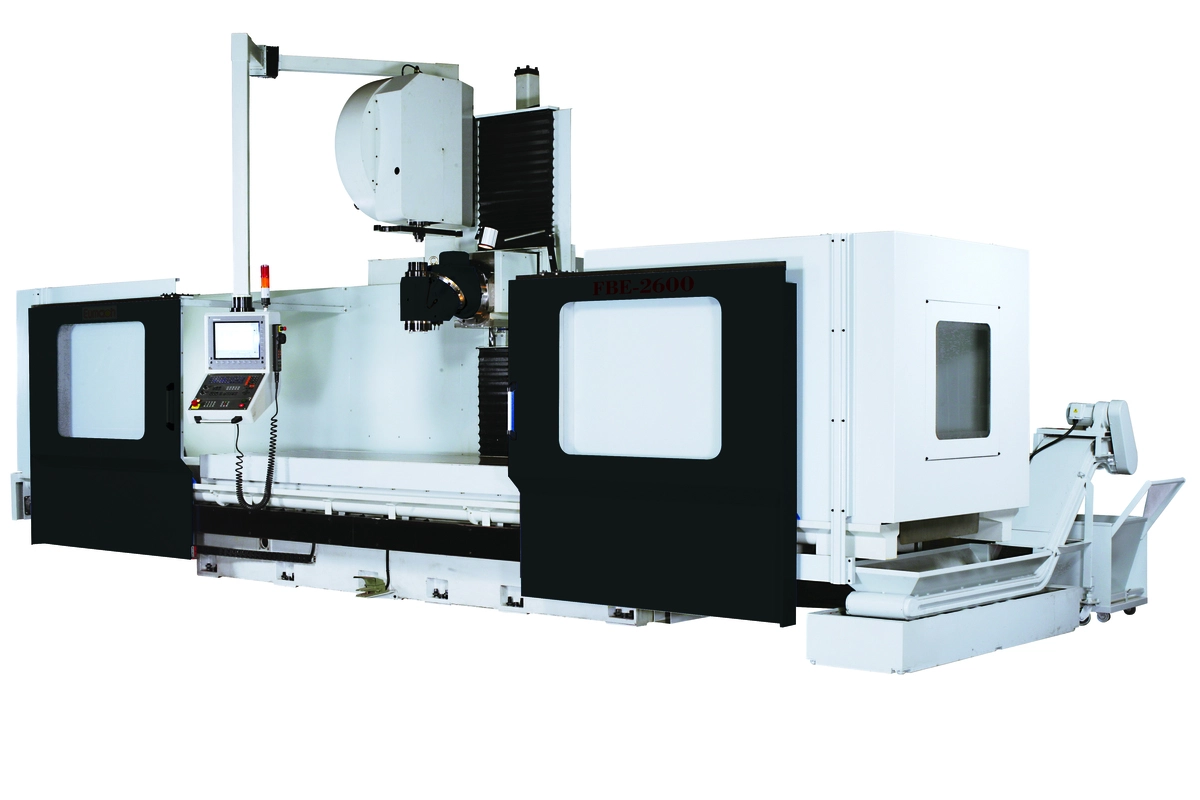

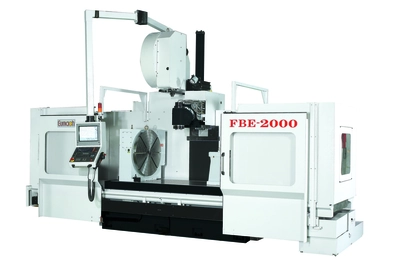

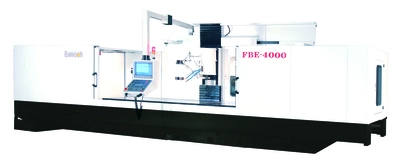

Bed Type Universal Milling Machine.
STANDARD FEATURES & ACCESSORIES:
3500 RPM UNIVERSAL MANUAL MILLING HEAD.
PROGRAMMABLE COOLANT SYSTEM.
AUTOMATIC LUBRICATION SYSTEM.
WORKING LAMP.
ALARM LAMP.
INDICATION LAMP FOR DWELL & END OF JOB.
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
TOOLBOX WITH SPANNERS & WRENCHES.
3 AXIS LINEAR SCALES, WITH AIR BLAST.
MODEL: FBE-2600 UNIT
[TABLE:]
WORKING AREA: 2700×1050 MM
T SLOTS(SIZE×NO): 22H8×7 SLOTS MM
TOP TO FLOOR DISTANCE: 870 MM
LOAD (EVENLY DISTRIBUTED): 6000 KG
[TRAVEL:]
X AXIS: 2600 MM
Y AXIS: 1000 MM
Z AXIS: 950 (1500) MM
[HORIZONTAL SPINDLE: (NO MORE IF WITH VH-2.5, VH-1 HEAD)]
TAPER: DIN 69871 #50
SPEED: 3500 (5000) RPM
OUTPUT 40% DUTY CYCLE: 25 KW
CONSTANT OUTPUT: 17 KW
MAXIMUM TORQUE S1: 650 Nm
[UNIVERSAL MILLING HEAD:]
TAPER: DIN 69871 #50
SPEED: 3500 RPM
OUTPUT 40% DUTY CYCLE: 25 KW
CONSTANT OUTPUT: 17 KW
MAXIMUM TORQUE: 650 Nm
[FEEDRATE :]
CUTTING: 1- 5000 MM/MIN
RAPID: 10000 MM/MIN
[BALLSCREWS:]
X AXIS DIA. × PITCH: Ø63×10 MM×MM
Y AXIS DIA. × PITCH: Ø50×10 MM×MM
Z AXIS DIA. × PITCH: Ø50×10 MM×MM
PRECISION CLASS: 0.008 / 300 MM/300MM
[ACCURACY:]
POSITIONING: JIS 6338 : ±0.005MM / 300MM VDI 3441: P0.014MM ±MM/300MM
REPEATABILITY: JIS 6338 : ±0.003MM VDI 3441: PS0.01MM MM
ROUNDNESS: JIS 6338 : ±0.01MM / 300MM DIAMETER MM/DIA.
[GENERAL:]
MACHINE NET WEIGHT: 15000 KG
PHNEUMATIC REQUIRED: 6 KG/CM2
HYDRAULIC REQUIRED: 3.5 KW
POWER REQUIRED: 35KVA KVA
