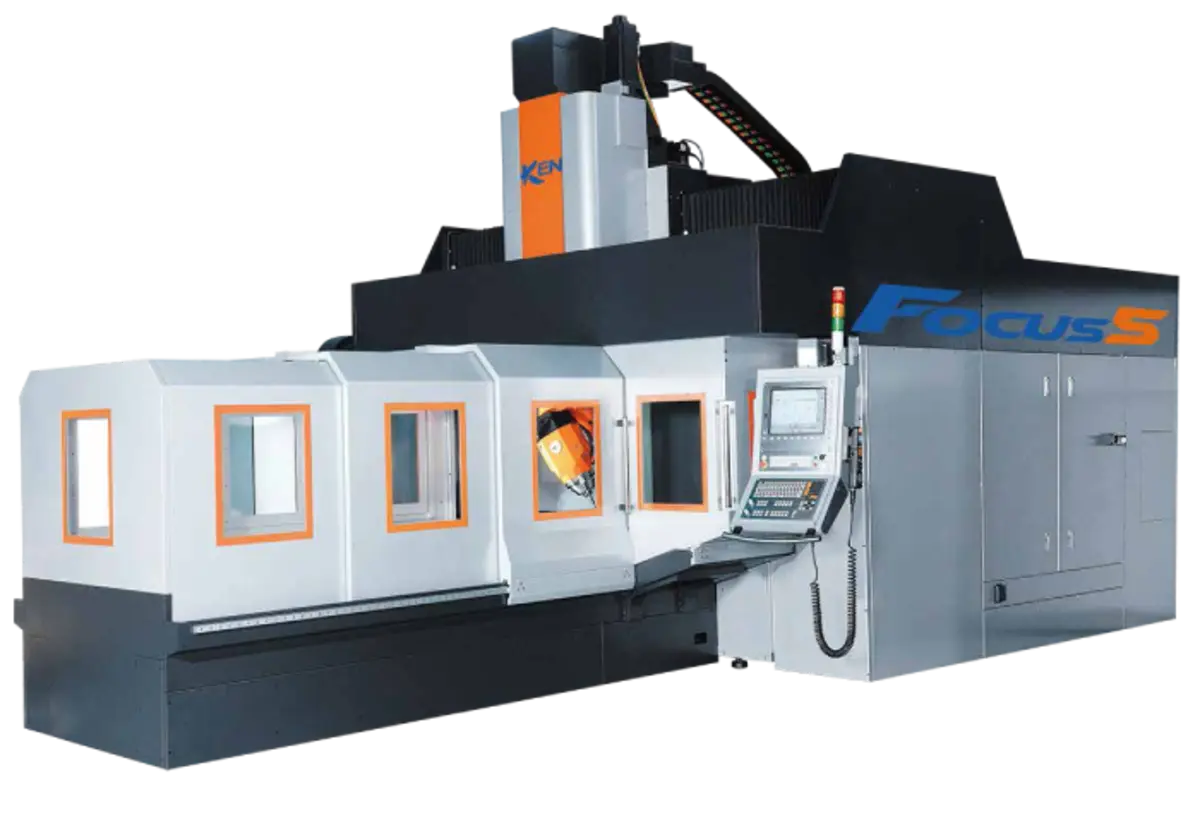

Focus5 - 5 Axis Double Column Machining Center

5-AXIS DOUBLE
COLUMN MACHINE CENTER
High rigidity
one piece column structure.
Linear motor
drives.
Rapid
feedrate:60m/min.
Direct-drive
motor two-axis milling head.

Specifications /Mold: Focus 5 - 2022 / 2032 / 2040 Unit
[Travel]
X-axis Travel: 2,200 / 3,200 / 4,000 mm
Y-axis Travel: 2000 mm
Z-axis Travel: 1000 mm
Distance between column: 1,650 mm
Table length: 2,200 / 3,200 / 4,000 mm
Table width: 1,300
T-slot size (Width): 18 mm
Table load: 4000 Kg
T-slot spacing: 125 mm
