Fagor 8055i MC LCD color display
X/Y/Z travel: 50" x 30" x 27"
Tale Size: 59" x 23.62"
Heavy-duty box way design
Optional Control features included in the offer:
1. Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
2.Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically.
3.Conversational to G-code programming conversion feature allows operator to program machining job without G code
4.Inside/outside taper threading/Boring cycle
5.Quick programming helical taper interpolation or helical taper threading

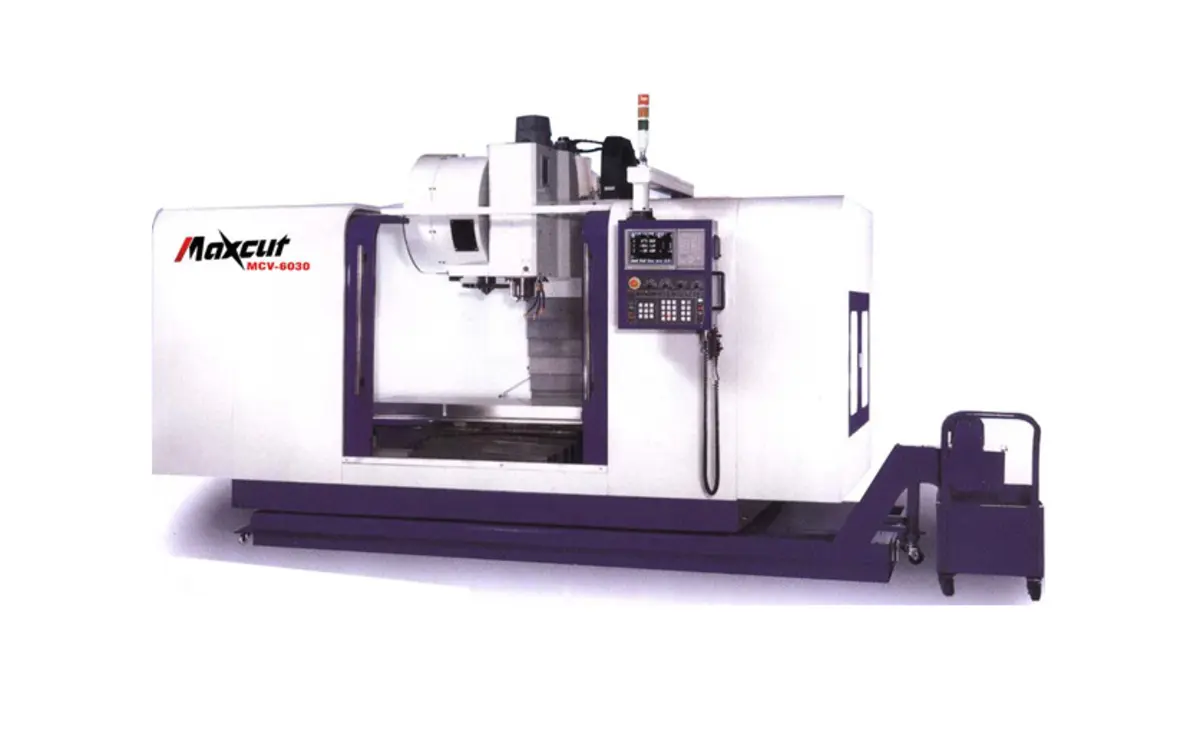

ITEM: MCV-5030
Travel / X-axis: 1300mm
Travel / Y-axis: 762mm
Travel / Z-axis: 670mm
Travel / Spindle nose to table: 100-770mm
Travel / Spindle throat: 767mm
FEED RATE / X,Y,Z-axis rapid traverse: 20m/min
FEED RATE / Cutting feed rate: 5m/min
TABLE / Table size: 1500x600mm
TABLE / Max, loading capacity: 1000kg
TABLE / Number of T·slots: 5
TABLE / Size of T·slots: 18mm
SPINDLE / Spindle motor: 20HP
SPINDLE / Spindle diameter: 70mm
SPINDLE / Spindle taper: BT40# OR CAT40#
SPINDLE / Spindle speed: 8000rpm
FLUSHING: 1/2HP Coolant pump
PNEUMATIC: 5kgcm2 Air pressure
WEIGHT: 6000kg Machine net weight
