Standard Equipment
ISO40 spindle
Rigid tapping
10,000 rpm spindle
Wash down system
Coolant gun
210L coolant tank
Coolant system with checked valve
Coolant through spindle with 20bar pressure
4th axis configuration interface
Automatic lubrication with low lubrication fault
Telescopic way covers
Heat exchanger
Automatic tool changer 24 Tools Swing arm type
Large fully ground work table with 4T slots
One piece Box type base with internal rib design
Linear ways (ball type) ensures high rapid speed 24M/min for all three axes
Fully enclosed heavy duty metal guarding with removable side doors

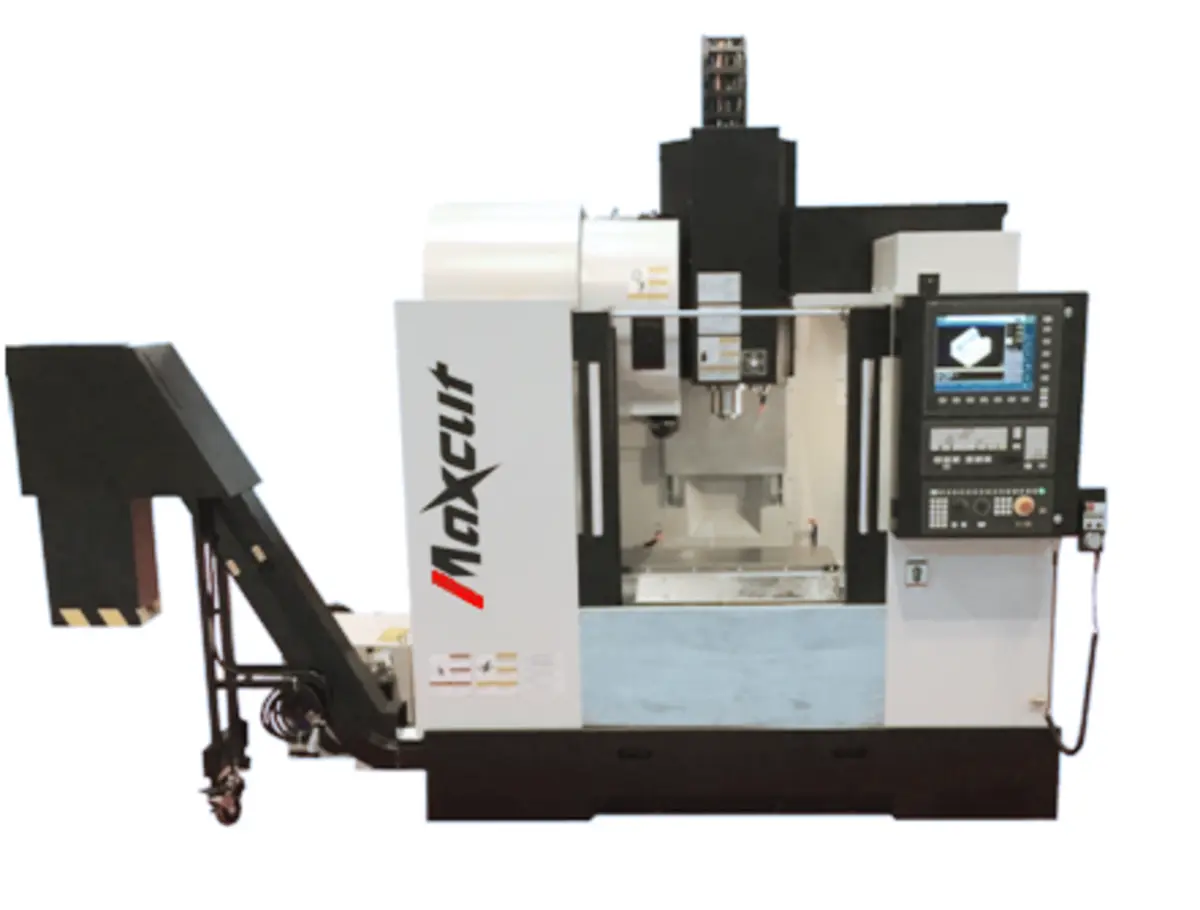

[ITEM | MAXCUT MCV-1730]
[TABLE | UNIT]
[Table size | Mm (in) | 900×410 (35.43x16.147)]
[Distance between table & floor | Mm (in) | 820 (32.28)]
[Table loading capacity | Kgs (Lbs) | 350 (770)]
[TRAVEL]
[X travel | Mm (in) | 760 (30)]
[Y travel | Mm (in) | 430 (17)]
[Z travel | Mm (in) | 505 (20)]
[SPINDLE]
[Taper | ISO | 40]
[Spindle bearing inside diameter | Mm | 60]
[Spindle speed | RPM | 10,000]
[Spindle center to linear guide way | Mm (in) | 480 (18.90)]
[Spindle nose to table top | Mm (in) | 102-602 (4-24.0)]
[MOTOR]
[Spindle | Kw/Hp | 5.5/7.4;7.5/10@30MIN]
[X axis | Nm | 2.84]
[Y axis | Nm | 2.84]
[Z axis | Nm | 8.34]
[Coolant pump | HP | 1/4]
[SWING ARM STYLE ATC]
[Number of tools | 24]
[Tool taper | BT#40/CAT#40]
[Tool select by shortest path | Bi-directional]
[Max. tool weight | Kgs (Lbs) | 8 (17.6)]
[Max. tool diameter | Mm (in) | 130 (5.12)]
[Max. tool diameter(Adjacent pocket) | Mm (in) | 89 (3.5)]
[Max. Tool Length | Mm (in) | 350 (13.77)]
[PERFOMANCE]
[Rapid traverse | IPM | 1000]
[Feed Rate X/Y/Z | IPM | 500]
[Positioning accuracy | Mm (in) | ±0.005 (±0.0002)]
[Repeatability | Mm (in) | ±0.002 (±0.00008)]
[DIMENTIONS]
[Length x Width x Height | Mm | 2200 x 2050 x 2500]
[Weight | KGS (LBS) | 3630 (7986)]
**Specifications subject to change without notice
