Overview:
Drive on all three rolls.
One hydraulic motor with gear system(LH-2RS-LH-5RS)
Two hydraulic motors with gear system(LH-6RS-or larger)
Automatic compensation for speed difference between rolls via adjustable slip clutch
Hydraulic operated drive rolls
Digital readout for showing bottom rolls position
A set of standard universal tooling for bending Angle, Flat bar, and T-section
Portable control console with push buttons for all functions.
OPTIONAL EQUIPMENT:
Special tooling for pipe/round bar.
Each set of rolls can be designed for 1 or 2 different sizes.
Special tooling for square or rectangular tubing
Combined rolls for I and U beams adjustable for all different sizes covering the capacity of the machine
Special tooling for H beam and work together with pulling assembly.
Special tooling for sections and profiles are designed on request.

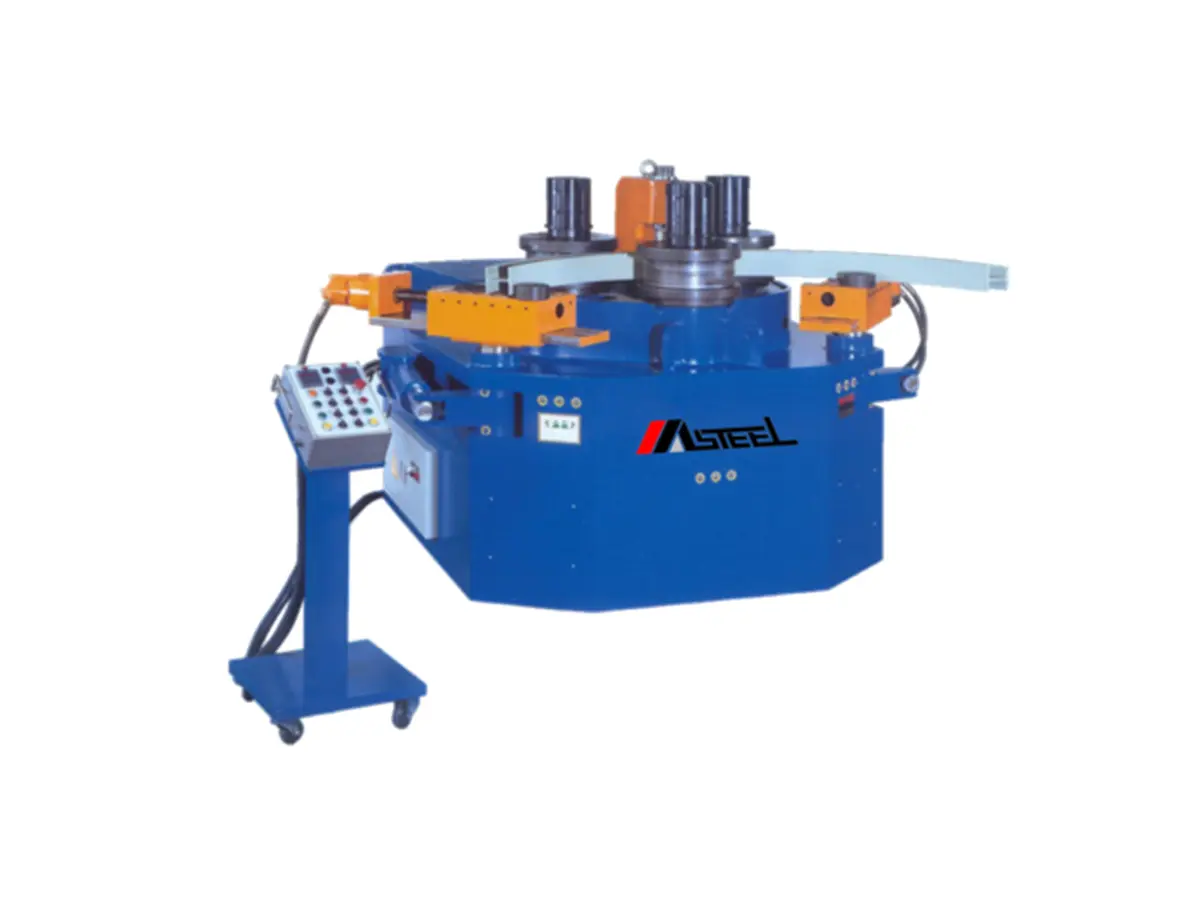

Model: LH-5RS
Section, Modules (cm): 45-50
Power (KW): 15
Diameter of the standard rolls (mm): 385
Shaft diameters Top/lower, mm: 150 150
Rolling speed (m/min): 3-7
Weight (Kg): 9000
L x W x H (m): 2.0x2.2x1.7 1.3x0.8x1.2
