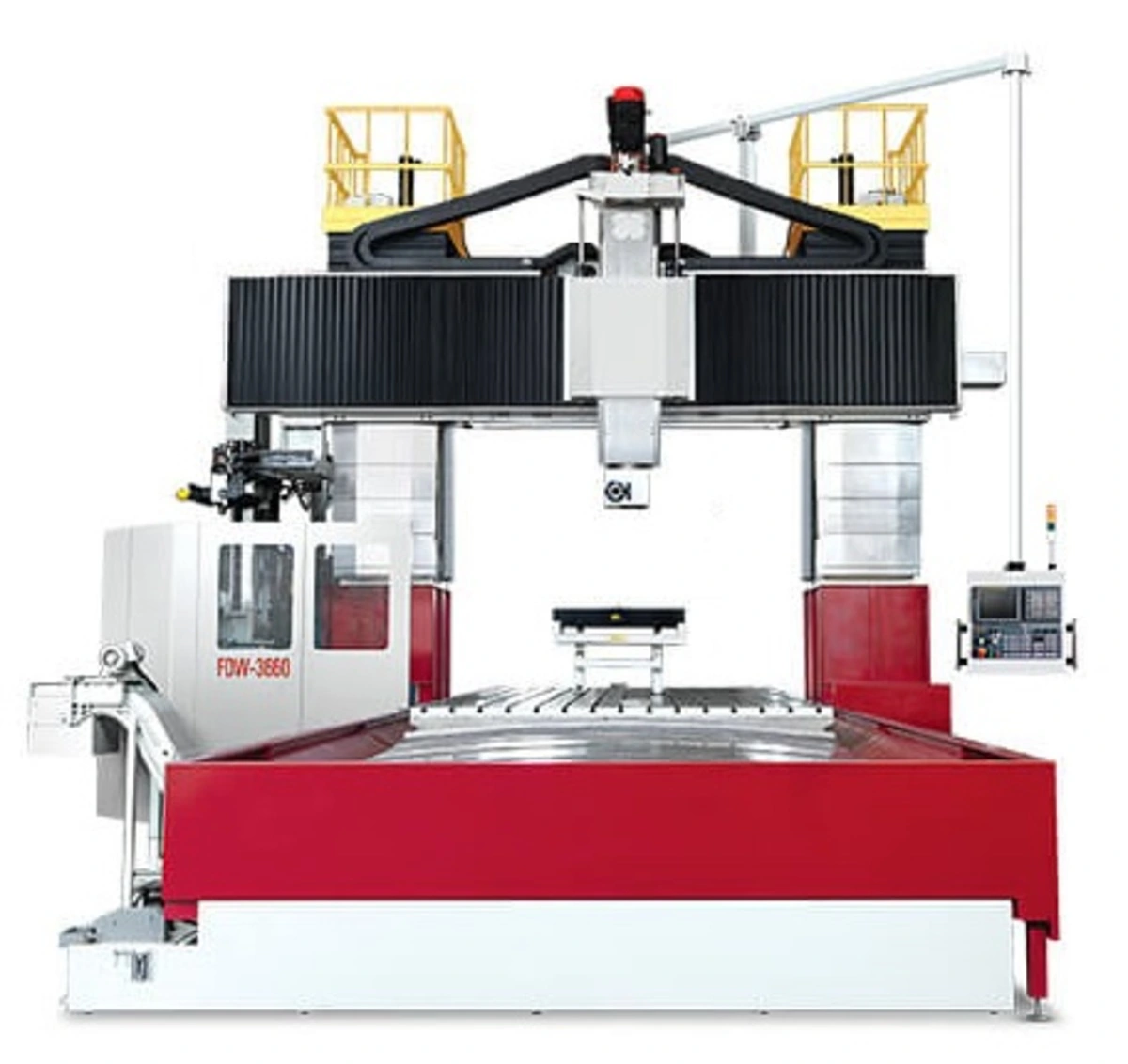

FDW-3252

FIXED DOUBLE COLUMN MACHINING CENTERS
WITH MOVING-CROSSRAIL (W-TRAVEL)

[Specifications]
[ITEM | Unit | FDW-3252]
[Model | FD- | 3252]
[Distance between columns *1 | mm | 3250]
[Table Size | Length | mm | 5000]
Width: 2600 mm
[Maximum Table Load | ton | 20]
[T-slot | Width x Pitch x NO | mm | 28 x 200 x 13]
[Travel | X-axis | mm | 5200]
Y-axis: 3200 mm
Z-axis: 800 (1100) mm
W-axis: 1000 (1500) any position located mm
[Spindle | Nose to table | mm | 100 ~ 100 + Z + W]
Taper / Speed / Power: BT50-6000-22/26kW rpm / kW
[Feedrate | Cutting | m/min | 5 ~ 10000]
X/ Y/Z/W axis G00: 12/12/12/2 m/min
[Accuracy | mm | Positioning ±0.015 / full travel; Repeatability ±0.003]
ATC & tool magazine / Capacity / Dia: 32pcs/Max. dia Ø125 (full tools); Ø220 (Adjacent pocket empty) mm
ATC & tool magazine / Max tool weight/ length: 20kg / 400mm Kg/mm
ATC & tool magazine / Tool selection: Free position take shortest direction / M24 P3.0-45°
[Power / Pneumatic | 60 ~ 70 KVA / 6.5 kg/ cm2]
[Machine size | Length | m | 13.4]
Width: 8.1 m
Height: 7.5 (8.4) m
[Machine Weight (app.) | ton | 82]
[Standard Features FD/FDW]
Standard Features FD/FDW
Spindle cooler
Spindle air blast
N2 Counter balance
GTP 2G250 H/L gearbox
Independent auto lubrication system
Program end alarm lamp
Rigid tapping
Electric cabinet heat exchanger
USB/RS232/hinet interface
Coolant system
Twin spirl type chip remover
Metal belt chip conveyor with cart
Cam type ATC 24pcs(FD14~FD24A)
Chain type ATC 32pcs(FD28~FD42, FDW)
Semi-enclousure splash guard(FD18~FD24A)
Open type splash guard (FD28~FD42, FDW)
ATC auto door
Foot switch for tool away
Working lamp
Leveling screw + foundation bolts
Tool kit & Operator’s manual
Air/water cleaning equipment
W axis linear scales (FDW)
