Compact - Gantry type 5-Axis Machining Center

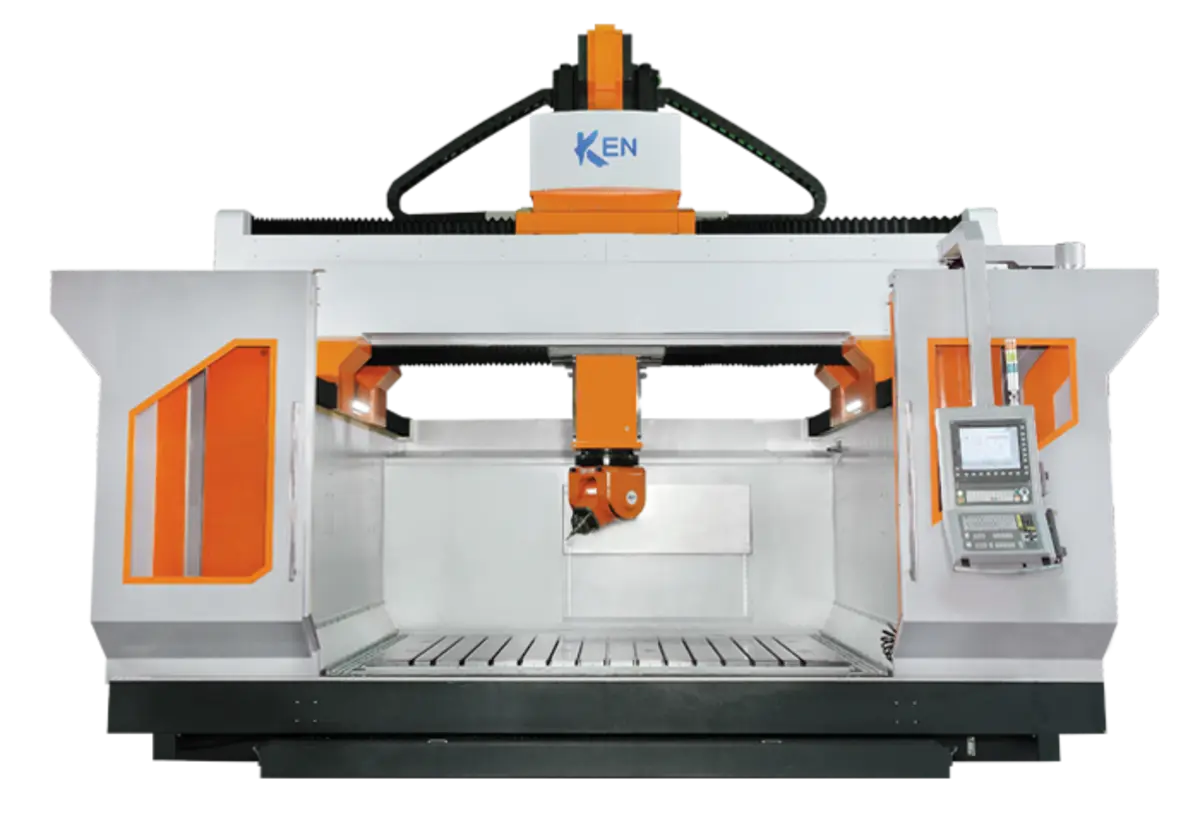

The Ken Compact gantry type 5-axis machining centre incorporates a highly specialized design for high speed / high precision 5-axis machining of molds and aircraft components.
The design encompasses the following features:
- a one piece cast base and wall construction
- a torque motor driven 2-axis milling head
- back lash free linear motor drives on the X and Y axes with minimal wear ‘n tear
- dual ball screw drives on the Z-axis for maximum torque
- all axial movements on top of the machine with the workpiece on a stationary fixed table for maximum work piece load capacity and minimum floor space requirements
- a choice of 2-xis milling heads and spindles to best-fit specific machining applications

Specifications /Mold: Compact B-3222 Unit Compact B-2516 Compact B-2522
X-axis Travel: 2200 mm 1600 2200
Y-axis Travel: 3200 mm 2500 2500
Z-axis Travel: 1250 mm 1250 1250
[Table]
Table size: 3200x2200 mm 2500x1600 2500x2200
T-slot size (Width): 22 mm 22 22
Table load: 4000 Kg/m² 4000 4000
Distance between spindle nose: 250~1500 mm 250~1500 250~1500
Distance between column: 3950 mm 3250 3250
[Feedrate]
Drive mode: Linear motor / Linear motor / Double ball screw X/Y/Z
X/Y/Z-axis rapid feedrate: 60 m/min
X/Y/Z-axis acceleration: 5 m/sec²
[Auto tool changer]
Tool shank: HSK A100 HSK A63
Tool magazine capacity: 30 Pcs 30
Max. tool weight: 15 Kgs 8
Max. tool length: 350 mm 350
Max. tool dimensions: Ø 100 mm Ø 80
