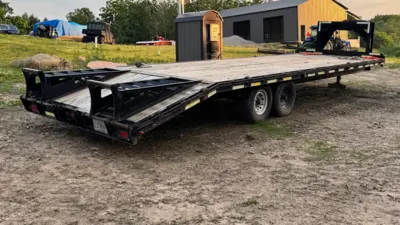

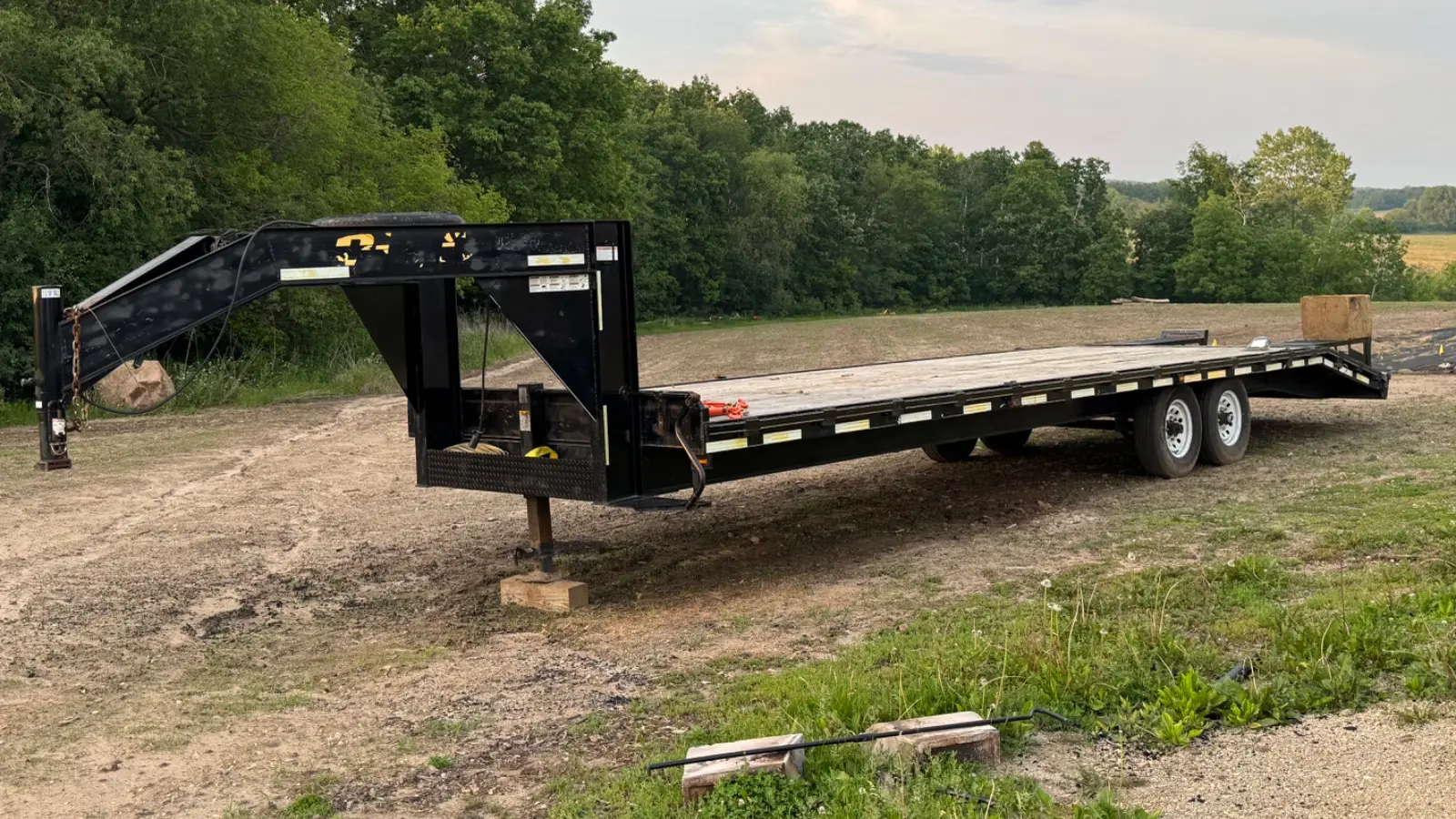

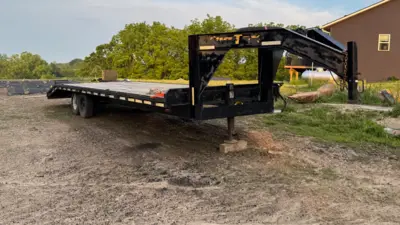

Big Tex 14GN 25’ w/5’ Dove Tail w/ Ramps | GVWR (Gross Vehicle Weight Rating): 15,900 lbs
Axles: Two 7,000 lb axles with E-Z Lube hubs and forward self-adjusting electric brakes
Frame: 12" I-Beam (14 lb/ft); models 28' and longer may use a 16 lb/ft I-Beam
Deck Width: 102"
Deck Height: Approximately 33"
Length Options: 20' to 40', including configurations like 20'+5', 25'+5', etc.
Payload Capacity: Varies by length; for example, a 25'+5' model has a payload capacity of approximately 10,590 lbs
Standard Features
Coupler: 2-5/16" adjustable pipe gooseneck coupler
Jacks: Dual 12,000 lb drop-leg jacks with greasable handles
Flooring: Treated pine or Douglas fir
Crossmembers: 3" channel
Suspension: Multi-leaf slipper spring with equalizer
Brakes: Electric brakes on all hubs
Lighting: LED DOT stop, tail, turn, and clearance lights
Wiring: Sealed, modular cold-weather wiring harness
Tires: ST235/80 R-16 Load Range E
Wheels: 16" x 6" heavy black mod 8-bolt wheels
Safety Chains: 3/8" Grade 70 with safety latch hooks
Stake Pockets: Along both sides, 24" on center
Rub Rail: 3/8" heavy-duty rub rail on both sides
Chain Spools: 1-1/4" pipe chain spools between stake pockets
Toolbox: Lockable toolbox between gooseneck uprights
Ramp & Tail Options
Standard Ramps: 5' cleated dovetail with 5' double-hinged spring-assist flip-over ramps
| Weight | 4890.0 | 4890.0 |
Status: Available
Hours: 1
Weight: 4890.0
Rental Rate: $1717
Rate Schedule: DAY: $258
Rate Schedule: WEEK: $572
Rate Schedule: 3 MOS: $5151
Rate Schedule: 6 MOS: $10302
