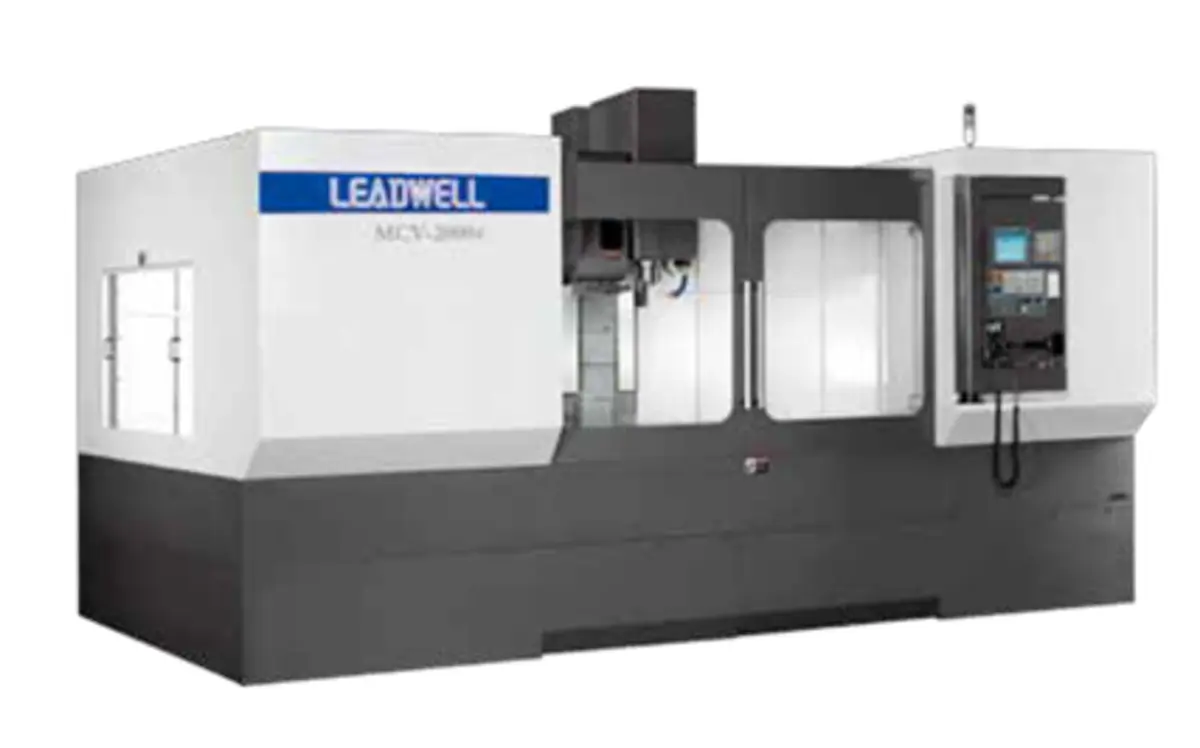

MAXCUT/LEADWELL MCV-2000i

FEATURES
Fagor 8055i/plus MC CNC Controller with 11” Color display
Chain-type Chip Conveyer combined with chip-Augur
300PSI Coolant through spindle
Coolant ring - a unique spindle annular coolant jet
Programmable spindle side air blow
Programmable Spindle air blast
Top cover

[SPECIFICATIONS]
ITEM: MCV-2000i
TABLE UNIT
Table size: 2100 x 1000 ( 80.3 x 40) Mm (in)
Table Height: 1000 (39.37) Mm (in)
Table loading capacity: 2500 ( 5500) Kgs (Lbs)
TRAVEL
X travel: 2040 (81) Mm (in)
Y travel: 1000 (40.00) Mm (in)
Z travel: 940 (37.00) Mm (in)
SPINDLE
Taper: 50 ISO
Spindle speed: 6000 RPM
Spindle center to column: 1000 (40.00) Mm (in)
Spindle nose to table: 120-1045 (4.8-41.8) Mm (in)
MOTOR
Spindle: 22/33 (30/44) Kw (Hp)
X axis: 14.8 (20) Nm (Ft-Lb)
Y axis: 14.8 (20) Nm (Ft-Lb)
Z axis: 27.3 (37) Nm (Ft-Lb)
Coolant pump: 900 (1.2) W (HP)
SWING ARM STYLE ATC
Number of tools: 30
Tool taper: 50 CAT
Tool Select by: Shortest Path
Max. tool weight: 20 (44) Kgs (Lbs)
Max. tool diameter (full tool): 127 (5) Mm (in)
Max. tool diameter: 229 (9.02) Mm (in)
Max. Tool Length: 300 (11.81) Mm (in)
PERFOMANCE
Rapid traverse X/Y/Z: 787 (20) M/min (Ipm)
Feed Rate X/Y/Z: 10 (394) M/min (Ipm)
Positioning accuracy: 0.005 (0.0002) Mm (in)
Repeatability: 0.005 (0.0002) Mm (in)
DIMENTIONS
Length x Width x Height: 154x168x148 Inch
Weight: 18500 (40700) Kgs (Lbs)
[Standard Equipment]
6,000rpm spindle speed as standard: Telescopic way covers
Chip Conveyer with chip collector: 2 speed gear driver
Heater exchanger for electric cabinet: Portable MPG
Heavily ribbed cast iron components: Rigid tapping
Heavy-duty box way design : 4 box way on Y axis: Coolant gun and air gun
One piece Box type base with internal rib design: Precision ground ball screw
Fully enclosure & heavy duty metal guarding: Wash down system
Low voltage circuit system: Anchor kits
Large fully ground work table with 5 T slot: ISO50 spindle
Automatic lubrication with low lubrication fault: Spindle oil cooler
Auxiliary coolant filter system removes contamination and minute particles from the coolant
EMC -SCHAFFNER Brand EMC (electromagnetic compatibility) to avoid electrical noise
Removable side doors for handling large profile machining parts
Adjustable nozzles; Coolant system with check valve
[Control features]
Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically
Conversational to G-code programming conversion feature allows operator to program machining job without G code
Inside/outside taper threading/Boring cycle
Quick programming helical taper interpolation or helical taper threading
