[Specifications]

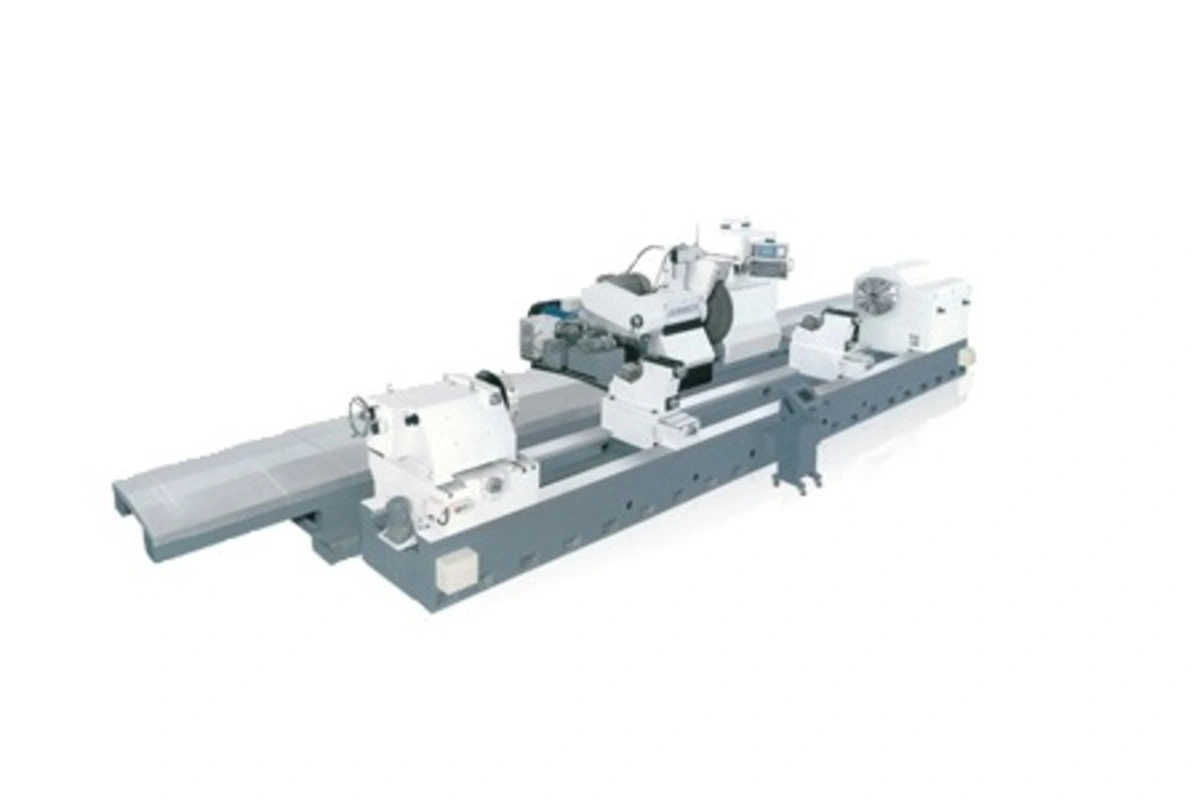

ITEM: H130 MODEL
Working Capacity / Max. swing over table: Ø1300 mm
Working Capacity / Max. distance between c.c: 4,5,6,7,8 M
Working Capacity / Max. weight with supports: 15000 Kg
Working Capacity / Max. O.D ground: Ø1300 mm
Working Capacity / Rang of grinding dia.: 80~1300 mm
Working Capacity / Max. dia of crown: By program mm
Wheelhead & Carriage (x axis) / Wheel size (O.D. x width x Bore): Ø910xØ304.8x80 mm
Wheelhead & Carriage (x axis) / Type of lubricating system: Hydrostatic & dynamic system -
Wheelhead & Carriage (x axis) / Rotating speed of wheel: 300~1200 R.P.M
Wheelhead & Carriage (x axis) / Max. cross feed rate: 3000mm/min mm/min
Wheelhead & Carriage (x axis) / Cross feed per pulse: 0.001 mm/p
Table (Z axis) / Travel of table or head (z axis): +200mm Center Distance +8” mm
Table (Z axis) / Travel speed of table: 25~6000mm/min mm/min
Table (Z axis) / Type of lubricating system: Hydrostatic & dynamic system -
Support: 90~400 (350-600 option) Roll neck diameter range mm
Workhead & Tailstock / Rotation speed of work head: 6~50 mm
Workhead & Tailstock / Size of center: PT#100 -
Workhead & Tailstock / Moving speed of tailstock: 2000 mm/min
Workhead & Tailstock / Stroke of quill: 200mm mm
Power rating / Grind wheel motor: 50HP(40HPx6P) HP
Power rating / Workhead motor: 40HP(30HPx6P) HP
Power rating / Table traverse motor (z axis): 22NM HP
Power rating / Tailstock move motor: 1HPx6P HP
Power rating / Cross feed motor (x axis): 12NM HP
Power rating / Lubricating system: 2HP HP
Power rating / Coolant system: 2000 Liter x 2 HP L
[Accessories]
Standard Accessories: Optional Accessories
Grinding Wheel: Heavy Duty Support
Flange: Center grinding device
Dresser: Carrier
Flange Puller: Universal joint
Gage: 4-jaw chuck
Splash Guard: Live Center
Filter: Spare flange
Center: Spare grinding wheel
Tool Box: Rotating spindle type tailstock
Support: Portable Balancer
Sheet – Metal Covers: Auto balancing system
Static balance device and arbor: Roll Caliper
: Dust collector
: Linear Encoder
: Special curve grinding program
