Vertical / High Performance

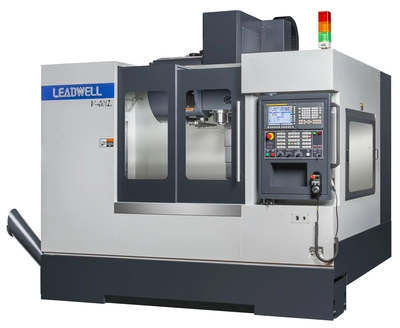

MODEL: V-60i
A.T.C: ARM
X axis travel: 1520 (59.8) mm(in)
Y axis travel: 760 (30) mm(in)
Z axis travel: 720 (28.3) mm(in)
Table size (L x W): 1550x750 (61x29.5) mm(in)
Max. table load: 1200 kg
Spindle speed: 10000,12000,15000 rpm
Rapid traverse X/Y/Z: 24/24/20(945/945/787) m/min/(ipm)
Tool storage capacity: 24 pcs
Spindle motor (30min) FANUC: 15 (20) kW (hp)
X/Y/Z axis motor: 4/4/4 (5.4/5.4/5.4) kW (hp)
Machine size (L x W x H): 3820x4365x3006 mm
Machine weight: 10500 kg
