Overview

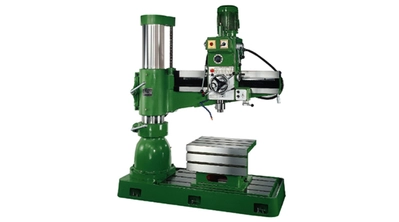

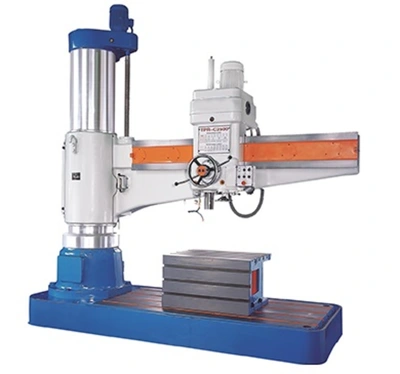

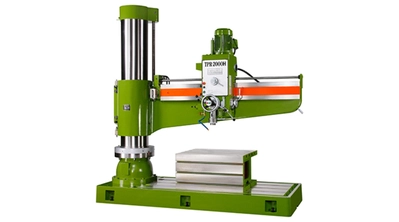

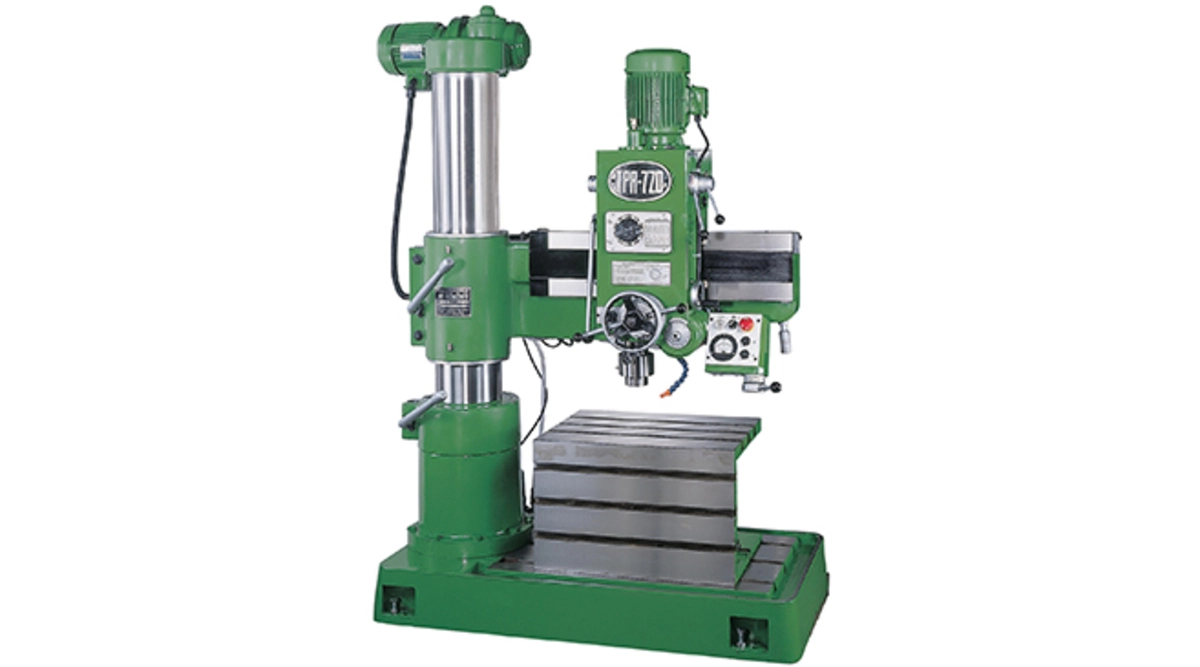

Radial Arm Machines
TC-1600H
Specs

[MODEL | TC-1600H]
[Dai. Of column | 320]
[Distance from column surface spindle center, Max | 1600]
[Distance from column surface to spindle center, Min | 350]
[Travel of spindle head | 1250]
[Distance from base surface to spindle end, Max | 1420]
[Distance from base surface to spindle, Min | 465]
[Elevating height of Arm | 680]
[Effective area of box table | 630x500x500]
[Dimension of base | 2550x970x200]
[Taper hole spindle | MT#5]
[Stroke of spindle | 270]
[R.P.M of spindle (rmp x steps) | 56-1450x12]
[Feed of spindle (rev x steps) | 0.06,0.10,0.20x3]
[Main motor (HP) | 5 (two speed motor)]
[Elevating motor (HP) | 2HP]
[Hydraulic clamping motor(HP) | 1HP]
[Coolant equipment (HP) | 1/8HP]
[Machine height from floor (max) | 2760]
[Base + column height | 2186]
[Net weight (approx.) Kgs | 3300]
[Shipping weight (approx) kgs | 3800]
[Shipping dimensions (lxwxh) | 2670x1120x2410]
Capacity Drilling / Steel: 50Ø
Capacity Drilling / Cast Iron: 60Ø
Capacity Tapping / Steel: 40Ø
Capacity Tapping / Cast Iron: 50Ø
