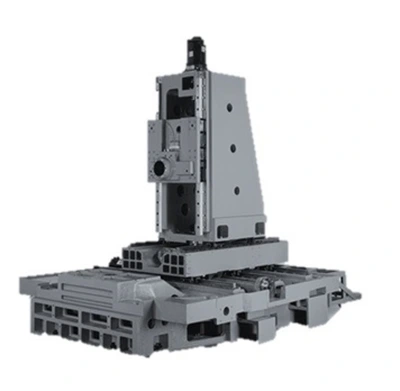

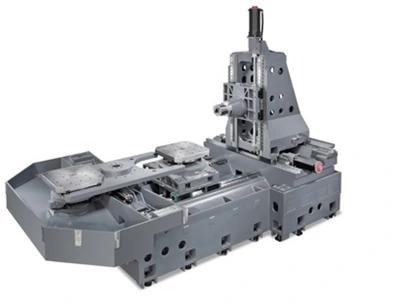

Travel Column APC / High Production
MODEL: LCV-760
X axis travel: 760 (29.9) mm(in)
Y axis travel: 610 (24) mm(in)
Z axis travel: 610 (24) mm(in)
Table size (L x W): 850x600 (33.4x23.6) mm(in)
Max. table load: 800 fix / 500 turn kg
Spindle speed: 10000 rpm
Rapid traverse X/Y/Z: 32/32/28 (1259/1259/1102) m/min/(ipm)
Tool storage capacity: 30 pcs
A.P.C number of pallets: 2 pcs
Spindle motor (30min) FANUC: 18.5 (24.8) kW (hp)
X/Y/Z axis feed motors: 7/4/4 (9/5.4/5.4) kW (hp)
Machine size (L x W x H): 3320x4800x2980 mm
Machine weight: 10500 kg
